ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET FIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 MUFFLERFIG.16 FUEL PUMPFIG.17 DELIVERY PIPEFIG.18 OIL PUMPFIG.19 WATER PUMPFIG.20 RADIATOR (MT)FIG.21 RADIATOR (AT)FIG.22 WATER HOSE (GL)FIG.23 WATER HOSE (GLX)FIG.24 EMISSION CONTROLFIG.25 LABEL

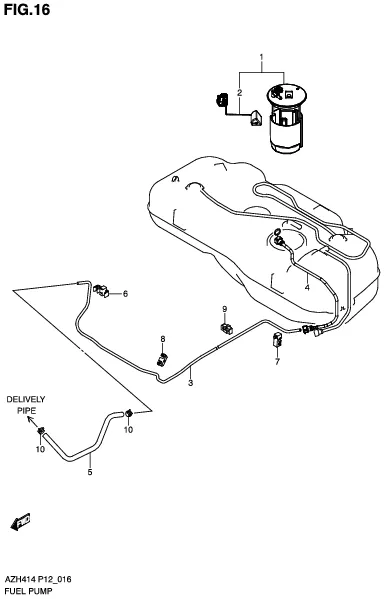

FIG.16 FUEL PUMP

FIG.16 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-58M00-000 PUMP ASSY, FUEL 1 Rp3.398.500
2 34810-58M00-000 •GAUGE ASSY, FUEL LEVEL 1 Rp299.500
3 15811-58M00-000 PIPE, FUEL FEED (RH) 1 Rp3.869.500
4 15812-58M01-000
SUB: 15812-58M00-000		 PIPE, FUEL(PUMP TO PIPE) 1 Rp736.000
5 15815-58M01-000
SUB: 15815-58M00-000		 HOSE, FUEL (PIPE TO ENG) 1 Rp292.500
6 15882-71LA0-000 CLAMP, FUEL PIPE 1 Rp69.000
7 15883-58M00-000 CLAMP, FUEL PIPE 1 Rp28.500
8 15884-71L00-000 CLAMP, FUEL PIPE 3 Rp23.500
9 15893-83G01-000 CLAMP, FUEL PIPE 3 Rp23.000
10 09401-13L02-000 CLIP 2 Rp325.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
