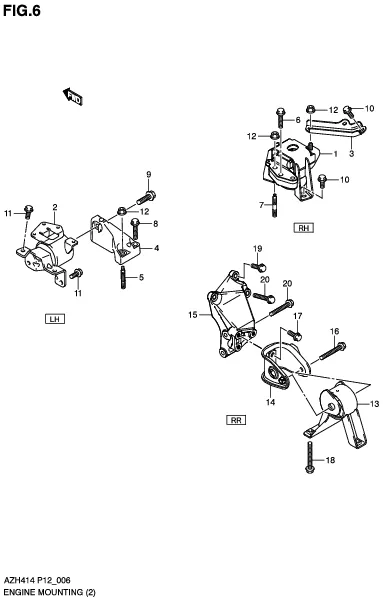

FIG.6 ENGINE MOUNTING (AT)

FIG.6 ENGINE MOUNTING (AT)
No No. Part Description Qty Price Per Pcs Remarks
1 11610-58MA0-000
SUB: 11610B58MA0N000		 MOUNTING, ENG RH 1 Rp942.000
2 11620-58MC0-000 MOUNTING, ENG LH 1 Rp621.500
3 11642-58MA0-000 STIFFENER, RH MTG BRKT 1 Rp396.000
4 11651-58MB0-000 BRACKET, ENG LH MTG NO.1 1 Rp685.000
5 11653-79J50-000 BOLT, ENG LH MTG BRKT STUD 2 Rp40.000
6 09103-10235-000 BOLT (10X50) 1 Rp35.000
7 09108-10154-000 STUD BOLT 2 Rp35.000
8 01550-1045A-000
SUB: 01550B1045AN000		 BOLT 1 Rp11.500
9 01550-1245A-000 BOLT 1 Rp7.000
10 01551-1025A-000 BOLT 3 Rp29.000
11 01551-1025A-000 BOLT 4 Rp29.000
12 08316-1010A-000
SUB: 08316B1010AN000		 NUT 5 Rp3.500
13 11710-58MB0-000 MOUNTING, ENG RR 1 Rp587.000
14 11740-74LA0-000
SUB: 11740B74LA0N000		 BRACKET, ENG RR MTG NO.1 1 Rp104.500
15 11751-71LB0-000 BRACKET, ENG RR MTG NO.2 1 Rp1.373.500
16 11719-58J00-000 BOLT, ENG RR MTG BUSH 1 Rp34.000
17 09113-10004-000 BOLT (10X85) 3 Rp29.000
18 01550-1030B-000
SUB: 01550-1030A-000		 BOLT 3 Rp25.500
19 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 2 Rp5.500
20 01550-1070A-000 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
