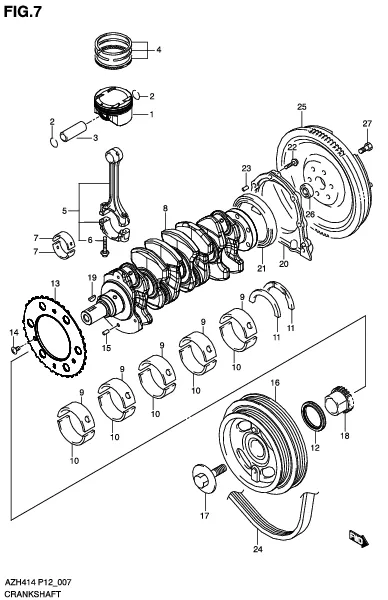

FIG.7 CRANKSHAFT

FIG.7 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1-2 12111-71L50-0B0
SUB: 12111B71L50N0B0		 PISTON 4 Rp503.500
1-1 12111-71L50-0A0
SUB: 12111B71L50N0A0		 PISTON 4 Rp503.500
2 09381-18002-000
SUB: 09381B18002N000		 CIRCLIP 8 Rp2.500
3-1 DISCONTINUE
SUB: 12151B71L00N0A0		 PIN,PISTON 4 -
3-2 12151-71L00-0B0
SUB: 12151B71L00N0B0		 PIN,PISTON 4 Rp51.500
4 12140-58M50-000
SUB: 12140B58M50N000		 RING SET, PISTON 4 Rp109.000
5 12160-58M50-000 CONNROD ASSY 4 Rp427.500
6 12163-58M00-000 •BOLT, CONNROD 8 Rp17.000
7-3 12181M68K00-0C0 BEARING, CONNROD (NON)STD,T:1.5 8 Rp20.500 STD,T:1.5
7-6 12181M68K00-025 BEARING, CONNROD US:0.25,T:1.625 8 Rp95.500 US:0.25,T:1.625
7-5 12181M68K00-0E0 BEARING, CONNROD (BLUE) STD,T:1.5 8 Rp22.000 STD,T:1.5
7-4 12181M68K00-0D0 BEARING, CONNROD (YELLOW)STD,T:1.5 8 Rp20.500 STD,T:1.5
7-2 12181M68K00-0B0 BEARING, CONNROD (BLACK)STD,T:1.5 8 Rp20.500 STD,T:1.5
7-1 12181M68K00-0A0 BEARING, CONNROD (GREEN) STD,T:1.5 8 Rp20.500 STD,T:1.5
8 12221-71L00-000 CRANKSHAFT 1 Rp8.190.500
9-1 12341M74L00-0A0
SUB: 12341-74L00-0A0		 BEARING, CRANKSHAFT UPPER (PINK) STD,T:2 5 Rp30.500 STD,T:2
9-10 12341-74L00-0EA BEARING, CRANKSHAFT UPPER (RED/BRACK) US:0.25,T:2.125 5 Rp61.500 US:0.25,T:2.125
9-9 12341-74L00-0DA BEARING, CRANKSHAFT UPPER (RED/GREEN)US:0.25,T:2.125 5 Rp61.500 US:0.25,T:2.125
9-8 12341-74L00-0CA BEARING, CRANKSHAFT UPPER (RED/BROWN) US:0.25,T:2.125 5 Rp61.500 US:0.25,T:2.125
9-7 12341-74L00-0BA BEARING, CRANKSHAFT UPPER (RED/PURPLE) US:0.25,T:2.125 5 Rp61.500 US:0.25,T:2.125
9-6 12341-74L00-0AA BEARING, CRANKSHAFT UPPER (RED/PINK) US:0.25,T:2.125 5 Rp59.500 US:0.25,T:2.125
9-5 12341M74L00-0E0
SUB: 12341-74L00-0E0		 BEARING, CRANKSHAFT UPPER (BLACK) STD,T:2 5 Rp30.500 STD,T:2
9-4 12341M74L00-0D0
SUB: 12341-74L00-0D0		 BEARING, CRANKSHAFT UPPER (GREEN) STD,T:2 5 Rp30.500 STD,T:2
9-3 12341M74L00-0C0
SUB: 12341-74L00-0C0		 BEARING, CRANKSHAFT UPPER (BROWN)STD,T:2 5 Rp30.500 STD,T:2
9-2 12341M74L00-0B0
SUB: 12341-74L00-0B0		 BEARING, CRANKSHAFT UPPER (PURPLE) STD,T:2 5 Rp30.500 STD,T:2
10-10 12345-74L00-0EA BEARING, CRANKSHAFT LOWER (RED/BRACK) US:0.25,T:2.125 5 Rp61.000 US:0.25,T:2.125
10-2 12345M74L00-0B0
SUB: 12345-74L00-0B0		 BEARING, CRANKSHAFT LOWER (PURPLE)STD,T:2 5 Rp29.000 STD,T:2
10-9 12345-74L00-0DA BEARING, CRANKSHAFT LOWER (RED/GREEN)US:0.25,T:2.125 5 Rp61.000 US:0.25,T:2.125
10-8 12345-74L00-0CA BEARING, CRANKSHAFT LOWER (RED/BROWN)US:0.25,T:2.125 5 Rp61.000 US:0.25,T:2.125
10-7 12345-74L00-0BA BEARING, CRANKSHAFT LOWER (RED/PURPLE) US:0.25,T:2.125 5 Rp61.000 US:0.25,T:2.125
10-5 12345M74L00-0E0
SUB: 12345-74L00-0E0		 BEARING, CRANKSHAFT LOWER (BLACK)STD,T:2 5 Rp30.000 STD,T:2
10-4 12345M74L00-0D0
SUB: 12345-74L00-0D0		 BEARING, CRANKSHAFT LOWER (GREEN) STD,T:2 5 Rp29.000 STD,T:2
10-3 12345M74L00-0C0
SUB: 12345-74L00-0C0		 BEARING, CRANKSHAFT LOWER (BROWN) STD,T:2 5 Rp29.000 STD,T:2
10-1 12345M74L00-0A0
SUB: 12345-74L00-0A0		 BEARING, CRANKSHAFT LOWER (PINK) STD,T:2 5 Rp29.000 STD,T:2
10-6 12345-74L00-0AA BEARING, CRANKSHAFT LOWER (RED/PINK) US:0.25,T:2.125 5 Rp59.000 US:0.25,T:2.125
11-1 12351-58M00-000 BEARING, CRANK THRUST STD,T:2.5 2 Rp41.000 STD,T:2.5
11-2 12351-58M00-012 BEARING, CRANK THRUSTOS:0.125,T:2.563 2 Rp62.000 OS:0.125,T:2.563
12 16141-58M00-000
SUB: 16141B58M00N000		 OIL SEAL 1 Rp97.500
13 12222-71L00-000 PLATE, SENSOR 1 Rp91.500
14 12223-69G00-000 SCREW, SENSOR PLATE 3 Rp13.500
15 09205-05006-000 SPRING PIN (5X12) 1 Rp11.500
16 12610-58M00-000 PULLEY, CRANKSHAFT 1 Rp1.249.500
17 12619-69G10-000 BOLT, CRANK PULLEY 1 Rp102.500
18 12631-54GA1-000
SUB: 12631-54G00-000		 SPROCKET, CRANKSHAFT TIMING 1 Rp171.500
19 08341M31059-000
SUB: 08341-31059-000		 KEY 1 Rp4.500
20 11341M51K00-000
SUB: 11341-51K00-000		 HOUSING, OIL SEAL 1 Rp73.000
21 11342-58M00-000 SEAL, CRANKSHAFT REAR OIL 1 Rp193.500
22 09103-06282-000 BOLT (6X25) 6 Rp16.500
23 04221-06129-000 PIN 2 Rp12.500
24 17521-58M00-000 BELT, WATER PUMP (5PK897) 1 Rp195.500
25 12620-77M01-000
SUB: 12620M68K00-000		 FLYWHEEL 1 Rp766.000
26 12623-61J00-000
SUB: 12623-71C01-000		 BEARING,INPUT SHAFT 1 Rp39.500
27 09100-10275-000
SUB: 09103-10305-000		 BOLT,10X18.5 6 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
