ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET FIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 MUFFLERFIG.16 FUEL PUMPFIG.17 DELIVERY PIPEFIG.18 OIL PUMPFIG.19 WATER PUMPFIG.20 RADIATOR (MT)FIG.21 RADIATOR (AT)FIG.22 WATER HOSE (GL)FIG.23 WATER HOSE (GLX)FIG.24 EMISSION CONTROLFIG.25 LABEL

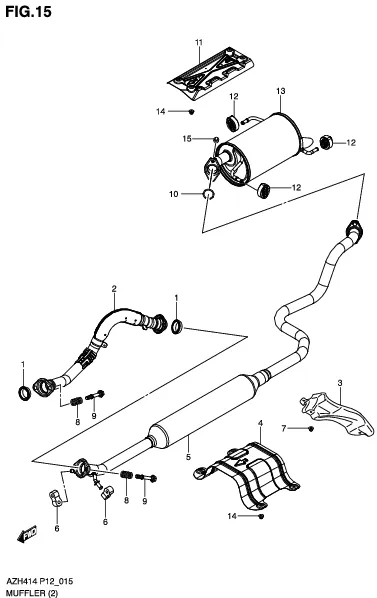

FIG.15 MUFFLER

FIG.15 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14183-58M00-000 RING, SEAL EXH PIPE 2 Rp370.500
2 14190-58M00-000 PIPE, EXH NO.1 1 Rp1.671.000
3 14232-71L00-000 INSULATOR, PARKING CABLE HEAT 1 Rp359.000
4 14233-71L00-000 INSULATOR, SUB CHMBR HEAT 1 Rp388.500
5 14250-58M00-000 PIPE, EXH CENTER 1 Rp6.693.500
6 14281-58M00-000 MOUNTING, MUFFLER 2 Rp190.500
7 14357-72J00-000 NUT, HEAT INSULATOR 3 Rp14.500
8 14492-58M00-000 SPRING, EXH PIPE 4 Rp118.500
9 09119-10073-000 BOLT (10X65) 4 Rp75.000
10 14182M79F11-000 GASKET, EXH PIPE 1 Rp14.000
11 14231-71L00-000 INSULATOR, HEAT 1 Rp1.391.000
12 14281-58M10-000 MOUNTING, MUFFLER 3 Rp115.000
13 14300-58M00-000 MUFFLER 1 Rp6.441.500
14 14357-72J00-000 NUT, HEAT INSULATOR 8 Rp14.500
15 09159M10049-000
SUB: 09159-10102-000		 NUT 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
