ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET FIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 MUFFLERFIG.16 FUEL PUMPFIG.17 DELIVERY PIPEFIG.18 OIL PUMPFIG.19 WATER PUMPFIG.20 RADIATOR (MT)FIG.21 RADIATOR (AT)FIG.22 WATER HOSE (GL)FIG.23 WATER HOSE (GLX)FIG.24 EMISSION CONTROLFIG.25 LABEL

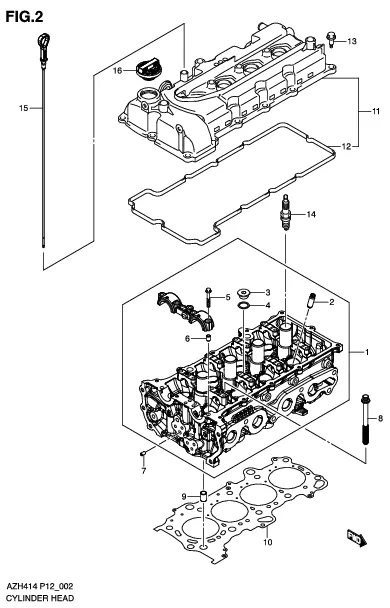

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-69LB0-000 HEAD ASSY, CYLINDER 1 Rp16.558.500
2 11115-69L00-001 •GUIDE, VALVE 16 Rp232.500
3 09248-18011-000 •PLUG 3 Rp38.000
4 11216-77E00-000 •GASKET, M18 PLUG 3 Rp21.000
5 11128-69G01-000 •BOLT, CAMSHAFT HOUSING 21 Rp24.000
6 09206-08001-000
SUB: 09206B08001N000		 •PIN (8X11) 16 Rp5.500
7 11112-53A00-000 PLUG, OIL VENTURI 1 Rp31.500
8 11117-69J00-000 BOLT, CYLINDER HEAD 10 Rp64.500
9 09206-13020-000 PIN (10.4X13X18) 2 Rp13.500
10 11141-58M00-000 GASKET, CYLINDER HEAD 1 Rp522.500
11 11170-69L00-000 COVER, CYLINDER HEAD 1 Rp3.381.500
12 11189-69L00-000 •GASKET, CYLINDER HEAD COVER 1 Rp185.000
13 11178-69L00-000 BOLT 14 Rp23.000
14 09482-00L10-000
SUB: 09482B00L10N000		 SPARK PLUG (NGK,KR6A-10) 4 Rp41.500
15 16910M68K02-000
SUB: 16910M68K01-000		 GAUGE, OIL LEVEL 1 Rp29.000
16 16920M68K00-000 CAP, OIL FILTER 1 Rp50.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
