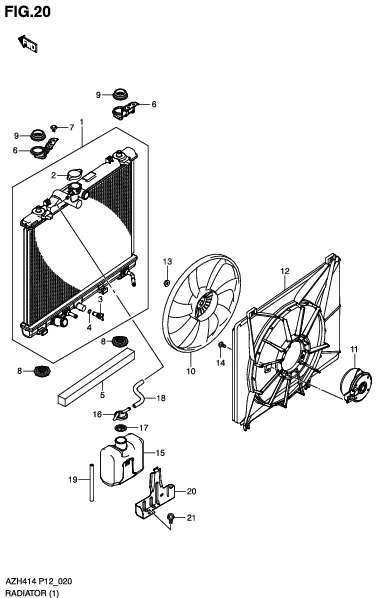

FIG.20 RADIATOR (MT)

FIG.20 RADIATOR (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 17700-58M01-000
SUB: 17700-58M00-000		 RADIATOR ASSY 1 Rp2.501.000
2 17920-58M00-000 •CAP, RADIATOR 1 Rp197.500
3 17751-58M00-000 •PLUG, DRAIN 1 Rp40.000
4 17759-82K00-000 •O RING 1 Rp7.500
5 17793-63J00-000 SEAL, RADIATOR NO.3 1 Rp65.000
6 17861-71L00-000 BRACKET, RADIATOR SUP UPPER 2 Rp680.500
7 02162-0612A-000 SCREW 4 Rp11.000
8 17878-58M01-000
SUB: 17878-58M00-000		 MOUNT, RADIATOR SUPPORT LOWER 2 Rp47.500
9 17879-58M00-000 MOUNT, RADIATOR SUPPORT UPPER 2 Rp48.000
10 17111-58M00-000 FAN, COOLING 1 Rp465.500
11 17120-58M01-000
SUB: 17120-58M00-000		 MOTOR ASSY, FAN 1 Rp1.441.500
12 17760-58M00-000 SHROUD, ENG COOLING FAN 1 Rp615.500
13 08316-2005A-000 NUT 1 Rp13.000
14 17129-56F00-000 SCREW, FAN MOTOR 3 Rp24.000
15 17931-69L00-000
SUB: 17931B69L00N000		 TANK, WATER RESERVE 1 Rp32.000
16 17932-76G00-000
SUB: 17932B76G00N000		 CAP, WATER RESERVER TANK 1 Rp5.500
17 17933-60B00-000
SUB: 17933B60B00N000		 SEAL, WATER RESERVER TANK CAP 1 Rp5.500
18 09352-70111-600 HOSE (7X11X600)L:600->140 1 Rp82.500 L:600->140
19 09352-70111-600 HOSE (7X11X600) L:600->190 1 Rp82.500 L:600->190
20 17935-69L01-000 BRACKET, RSV TANK 1 Rp164.500
21 02162-0612A-000 SCREW 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
