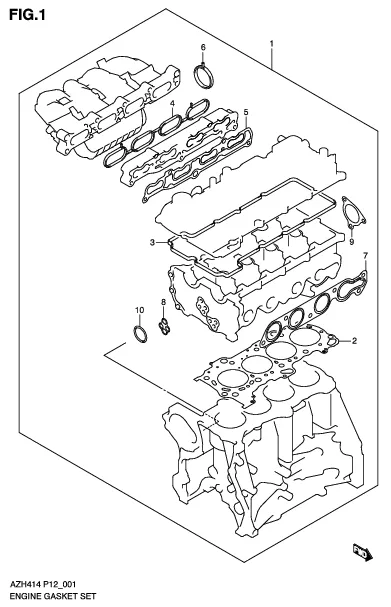

FIG.1 ENGINE GASKET SET

FIG.1 ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11400-58891-000
SUB: 11400-58890-000		 GASKET SET, ENGINE 1 Rp1.820.000
2 11141-58M00-000 •GASKET, CYLINDER HEAD 1 Rp522.500
3 11189-69L00-000 •GASKET, CYLINDER HEAD COVER 1 Rp185.000
4 13118-58M00-000
SUB: 13118B58M00N000		 •GASKET, INTAKE MANIFOLD 1 Rp64.000
5 13119M73K00-000 •GASKET, INTAKE MANIFOLD PLATE 1 Rp129.000
6 13421-58M00-000
SUB: 13421B58M00N000		 •GASKET, THROTTLE BODY 1 Rp19.500
7 14140-71L00-000 •GASKET, EXH MANIFOLD 1 Rp151.500
8 16118-58MB0-000 •O RING, OCV 1 Rp126.500
9 17699M68K00-000 •GASKET,THERMO CASE 1 Rp13.000
10 09280-28L02-000 •O RING 1 Rp119.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
