ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET FIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 ENGINE MOUNTING (MT)FIG.6 ENGINE MOUNTING (AT)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 MUFFLERFIG.16 FUEL PUMPFIG.17 DELIVERY PIPEFIG.18 OIL PUMPFIG.19 WATER PUMPFIG.20 RADIATOR (MT)FIG.21 RADIATOR (AT)FIG.22 WATER HOSE (GL)FIG.23 WATER HOSE (GLX)FIG.24 EMISSION CONTROLFIG.25 LABEL

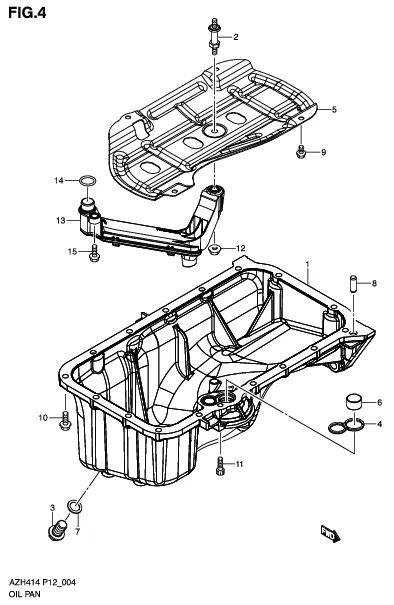

FIG.4 OIL PAN

FIG.4 OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11511-69L00-000 PAN, OIL 1 Rp2.176.500
2 11515-51K03-000 STUD BOLT 1 Rp54.000
3 11518-63J10-000 PLUG, OIL DRAIN 1 Rp9.500
4 11518M68K00-000 O RING 1 Rp6.500
5 11541M73K00-000
SUB: 11541-73K00-000		 PLATE, OIL PAN BAFFLE 1 Rp86.500
6 16114M69J00-000
SUB: 16114-69J00-000		 PIN, OIL PAN DOWEL 1 Rp14.500
7 09168-14015-000 GASKET (14X20X1.5) 1 Rp7.500
8 09202-08004-000 PIN (8X23) 1 Rp6.500
9 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 4 -
10 DISCONTINUE
SUB: 01550B0625AN000		 BOLT 16 -
11 07130-0625A-000
SUB: 07130B0625AN000		 BOLT 1 Rp3.500
12 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
13 16520-69L00-000 STRAINER, OIL PUMP 1 Rp316.000
14 51181-37B00-000
SUB: 09280B17002N000		 O RING (D:2.4,ID:16.8) 1 Rp5.000
15 07120-0620A-000 BOLT 1 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
