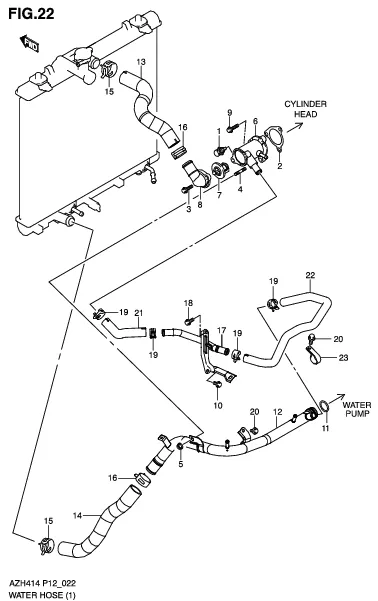

FIG.22 WATER HOSE (GL)

FIG.22 WATER HOSE (GL)
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR, WTR TEMP 1 Rp368.000
2 17699M68K00-000 GASKET 1 Rp13.000
3 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500
4 01421-0825A-000 STUD BOLT 2 Rp13.000
5 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
6 17690-58M00-000 CASE, THERMOSTAT 1 Rp1.527.000
7 17670-50G11-000
SUB: 17670-50G10-000		 THERMOSTAT, WTR (88 DEGC) 1 Rp215.500
8 17561-58M00-000 CAP, WATER THERMOSTAT 1 Rp366.500
9 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
10 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
11 09280-28L02-000 O RING 1 Rp119.500
12 17830-58M00-000 PIPE, WATER INLET 1 Rp455.000
13 17852-58M00-000 HOSE, RADIATOR INLET 1 Rp87.500
14 17854-58M00-000 HOSE, RADIATOR OUTLET 1 Rp87.500
15 09401-30L03-000 CLIP 2 Rp37.000
16 09401-33L01-000 CLIP 2 Rp42.000
17 17840-74L00-000
SUB: 17840B74L00N000		 PIPE, WTR INLET 1 Rp105.000
18 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
19 09401-21L06-000 CLIP 4 Rp20.500
20 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
21 17871-58M00-000 HOSE, HEATER INLET NO.1 1 Rp79.500
22 17874-58M00-000 HOSE, HEATER CIRCULATION 1 Rp109.500
23 17881-58M00-000
SUB: 17881B58M00N000		 CLAMP, HEATER HOSE 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
