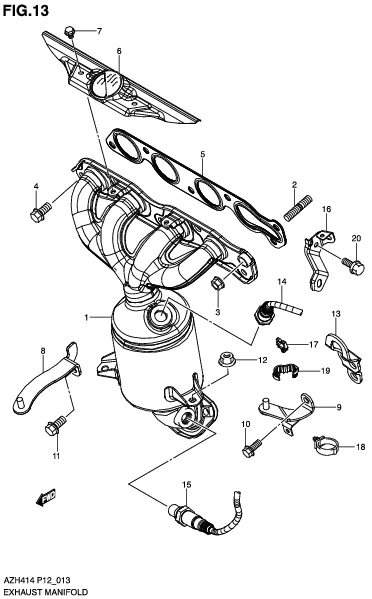

FIG.13 EXHAUST MANIFOLD

FIG.13 EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110-58M10-000 MANIFOLD, EXH 1 Rp5.980.500
2 14118-63J00-000 STUD BOLT 3 Rp21.500
3 08316-1010A-000
SUB: 08316B1010AN000		 NUT 3 Rp3.500
4 01550-1020A-000 BOLT 3 Rp21.000
5 14140-71L00-000 GASKET, EXH MANF 1 Rp151.500
6 14121-54M00-000 PLATE, CAUTION 1 Rp188.000
7 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 2 Rp21.500
8 14271-73K11-000 STIFFENER, EXH MANF 1 Rp129.000
9 14272-58M00-000 STIFFENER, EXH MANF 1 Rp120.000
10 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 1 Rp5.500
11 01550-1020A-000 BOLT 1 Rp21.000
12 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
13 11851-73K00-000
SUB: 11851B73K00N000		 HOOK, ENGINE 1 Rp12.000
14 18213-58M10-000 SENSOR, OXYGEN 1 Rp1.926.000
15 18213-58M20-000 SENSOR, OXYGEN RR 1 Rp2.167.500
16 18214-69L00-000 BRACKET, OXYGEN SENSOR 1 Rp40.500
17 09403-11322-000 CLAMP 1 Rp25.500
18 09403-12404-000 CLAMP 2 Rp13.500
19 09408-00258-000 CLAMP 1 Rp14.500
20 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
