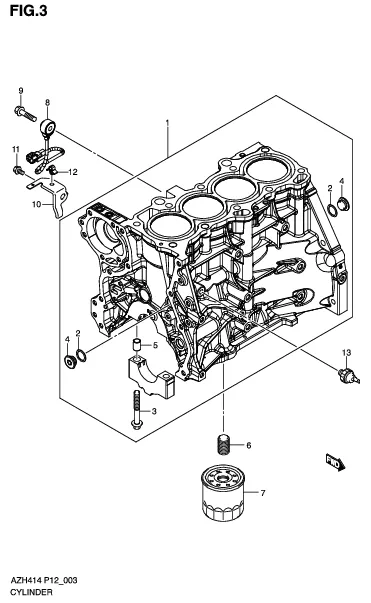

FIG.3 CYLINDER

FIG.3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200-71L10-X12
SUB: 11200-71L00-X12		 BLOCK ASSY, CYLINDER 1 Rp19.972.000
2 11216-77E00-000 •GASKET, M18 PLUG 2 Rp21.000
3 11261-69J01-000
SUB: 11261-69J00-000		 •BOLT, CRANK BEARING CAP 10 Rp37.000
4 09248-18011-000 •PLUG 2 Rp38.000
5 04211M13189-000
SUB: 04211-13189-000		 •PIN 5 Rp9.000
6 11241-68K00-000
SUB: 11241B68K00N000		 STAND, OIL FILTER 1 Rp15.000
7 16510-61J00-000
SUB: 16510-58M00-000		 FILTER ASSY, OIL 1 Rp37.000
8 DISCONTINUE
SUB: 18640-58M00-000		 SENSOR ASSY, KNOCK 1 -
9 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500
10 18645-58M00-000 BRACKET, KNOCK SENSOR 1 Rp669.000
11 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 1 Rp5.500
12 09403-06412-000 CLAMP 1 Rp16.500
13 37820-80GP0-000
SUB: 37820-80G01-000		 SWITCH ASSY, OIL PRESSURE 1 Rp144.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
