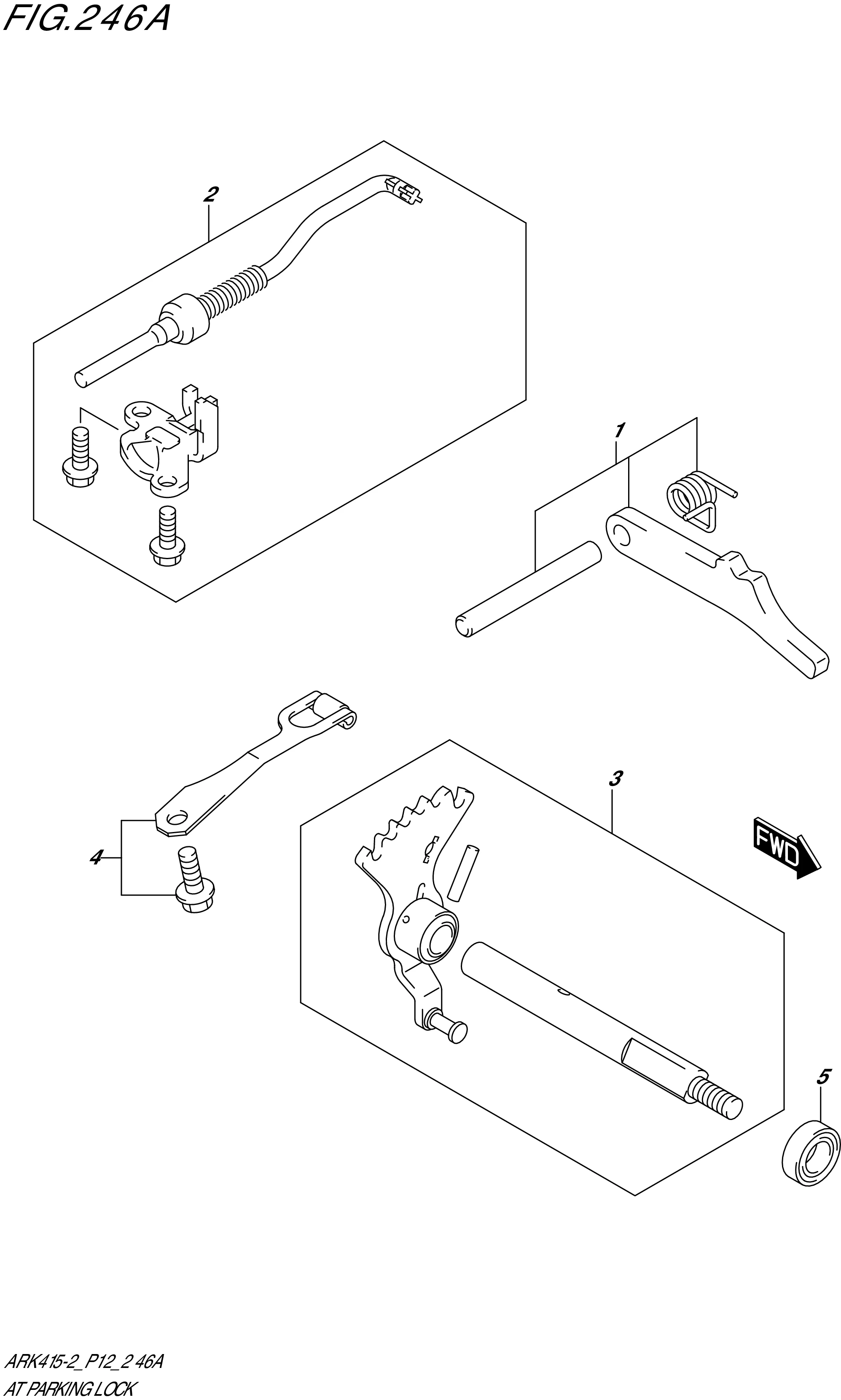

FIG. 246A- AT PARKING LOCK (4AT)

FIG. 246A- AT PARKING LOCK (4AT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	25912-77MT0-000	PAWL SET,PARKING LOCK	1	Rp434.000
2	25920-77MT0-000	ROD SET,PARKING LOCK PAWL	1	Rp351.000
3	25941-77MT0-000	SHAFT SET,MANUAL SHIFT	1	Rp769.000
4	25961-77MU0-000	SPRING SET,MANUAL DETENT	1	Rp307.500
5	25981-60G10-000	SEAL,OIL	1	Rp73.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
