ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 34PA - WIRING HARNESS REAR SIDE FIG. 34WA - BODY HARNESS FIG. 50CA - FRONT BRAKE PIPING (N_ESP)FIG- 50CB- FRONT BRAKE PIPING (W_ESP)FIG- 50DA- REAR BRAKE PIPING FIG- 73AA- HEATER CONTROL (GA,GL)FIG. 73AB- HEATER CONTROL (GX)FIG. 101A- SHORT ENGINE ASSY FIG. 105A- ENGINE GASKET SET FIG. 110A- CYLINDER HEAD COVER FIG. 111A- CYLINDER HEAD FIG.112A- CYLINDER FIG. 115A- OIL PAN FIG. 120A- CRANKSHAFT FIG. 122A- CAM SHAFT/VALVE FIG. 124A- CAM CHAIN FIG. 128A- ENGINE MOUNTING (5MT)FIG. 128B- ENGINE MOUNTING (4AT)FIG. 130A- INTAKE MANIFOLD FIG. 142A- THROTTLE BODY FIG. 150A- AIR CLEANER FIG. 154A- EXHAUST MANIFOLD FIG. 156A- MUFFLER FIG. 157A- DELIVERY PIPE FIG. 160A- FUEL PUMP FIG. 176A- OIL PUMP FIG. 180A- WATER PUMP FIG. 184A- RADIATOR (5MT)FIG. 184B- RADIATOR (4AT)FIG. 188A- WATER HOSE (5MT)FIG. 188B- WATER HOSE (4AT)FIG. 190A- EMISSION CONTROL FIG. 199A- LABEL FIG. 202A- MT CLUTCH (5MT)FIG. 204A- MT TRANSMISSION GEAR (5MT)FIG. 206A- MT TRANSMISSION CASE (5MT)FIG. 208A- MT GEAR SHIFT FORK (5MT)FIG. 210A- AT TRANSMISSION ASSY (4AT)FIG. 214A- AT OIL PUMP (4AT)FIG. 216A- AT INPUT SHAFT (4AT)FIG. 220A- AT PLANETARY GEAR (4AT)FIG. 226A- AT REDUCTION GEAR (4AT)FIG. 228A- AT FORWARD CLUTCH (4AT)FIG. 234A- AT 1ST/REVERSE BRAKE (4AT)FIG. 237A- AT OVER DRIVE BRAKE (4AT)FIG. 240A- AT TRANSMISSION CASE (4AT)FIG. 242A- AT OIL PAN (4AT)FIG. 244A- AT VALVE (4AT)FIG. 246A- AT PARKING LOCK (4AT)FIG. 248A- AT OIL HOSE (4AT)

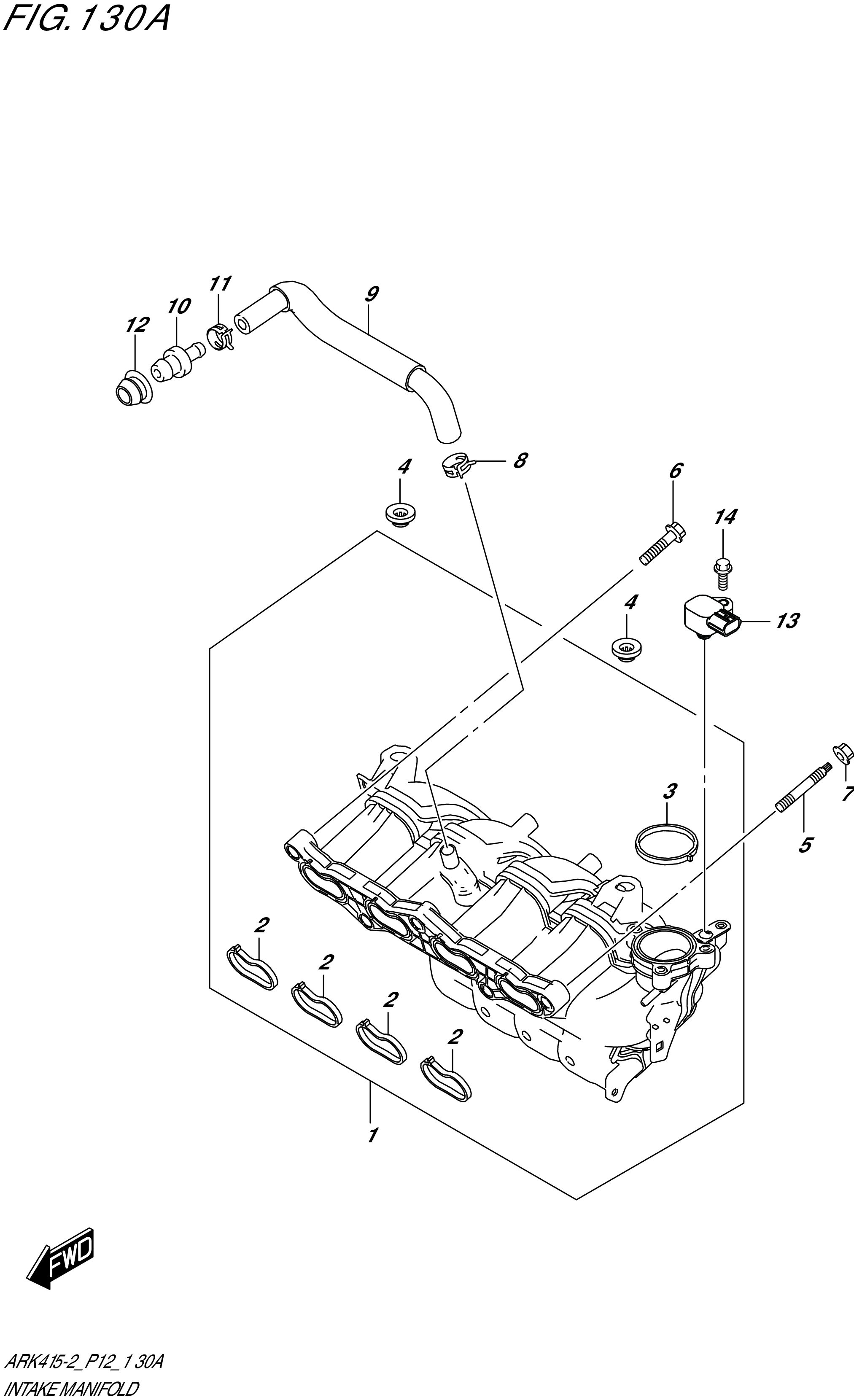

FIG. 130A- INTAKE MANIFOLD

FIG. 130A- INTAKE MANIFOLD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	13110-73R00-000	MANIFOLD,INTK	0	Rp532.000
2	13118-67LB0-000	.GASKET, INTK MANF	0	Rp10.500
3	13421-67LB0-000	.GASKET,THROTTLE BODY	0	Rp15.000
4	13723M84MB0-000	GROMMET, AIR CLNR	0	Rp6.500
5	01421-0835A-000	BOLT,STUD	0	Rp13.500
6	01550-0835A-000 SUB: 01550B0835AN000	BOLT (8X35)	0	Rp3.500
7	08316-1008A-000 SUB: 08316B1008AN000	NUT	0	Rp3.500
8	09401-15414-000	CLIP	0	Rp19.000
9	11193-73R00-000	HOSE,PCV	0	Rp19.000
10	18118-60M00-000	VALVE,PCV	0	Rp177.000
11	09401-13423-000	CLIP	0	Rp24.000
12	11198M79F00-000 SUB: 11198-58B00-000	SEAL,PCV VALVE	0	Rp16.500
13	18590-73R00-000	SENSOR ASSY,PRESSURE	0	Rp139.000
14	09132-05066-000	SCREW,MAP SENSOR	0	Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
