ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 34PA - WIRING HARNESS REAR SIDEFIG. 34WA - BODY HARNESSFIG. 50CA - FRONT BRAKE PIPING (N_ESP)FIG- 50CB- FRONT BRAKE PIPING (W_ESP)FIG- 50DA- REAR BRAKE PIPINGFIG- 73AA- HEATER CONTROL (GA,GL)FIG. 73AB- HEATER CONTROL (GX)FIG. 101A- SHORT ENGINE ASSYFIG. 105A- ENGINE GASKET SETFIG. 110A- CYLINDER HEAD COVERFIG. 111A- CYLINDER HEADFIG.112A- CYLINDERFIG. 115A- OIL PANFIG. 120A- CRANKSHAFTFIG. 122A- CAM SHAFT/VALVEFIG. 124A- CAM CHAINFIG. 128A- ENGINE MOUNTING (5MT)FIG. 128B- ENGINE MOUNTING (4AT)FIG. 130A- INTAKE MANIFOLDFIG. 142A- THROTTLE BODYFIG. 150A- AIR CLEANERFIG. 154A- EXHAUST MANIFOLDFIG. 156A- MUFFLERFIG. 157A- DELIVERY PIPEFIG. 160A- FUEL PUMPFIG. 176A- OIL PUMPFIG. 180A- WATER PUMPFIG. 184A- RADIATOR (5MT)FIG. 184B- RADIATOR (4AT)FIG. 188A- WATER HOSE (5MT)FIG. 188B- WATER HOSE (4AT)FIG. 190A- EMISSION CONTROLFIG. 199A- LABELFIG. 202A- MT CLUTCH (5MT)FIG. 204A- MT TRANSMISSION GEAR (5MT)FIG. 206A- MT TRANSMISSION CASE (5MT)FIG. 208A- MT GEAR SHIFT FORK (5MT)FIG. 210A- AT TRANSMISSION ASSY (4AT)FIG. 214A- AT OIL PUMP (4AT)FIG. 216A- AT INPUT SHAFT (4AT)FIG. 220A- AT PLANETARY GEAR (4AT)FIG. 226A- AT REDUCTION GEAR (4AT)FIG. 228A- AT FORWARD CLUTCH (4AT)FIG. 234A- AT 1ST/REVERSE BRAKE (4AT)FIG. 237A- AT OVER DRIVE BRAKE (4AT)FIG. 240A- AT TRANSMISSION CASE (4AT)FIG. 242A- AT OIL PAN (4AT)FIG. 244A- AT VALVE (4AT)FIG. 246A- AT PARKING LOCK (4AT)FIG. 248A- AT OIL HOSE (4AT)

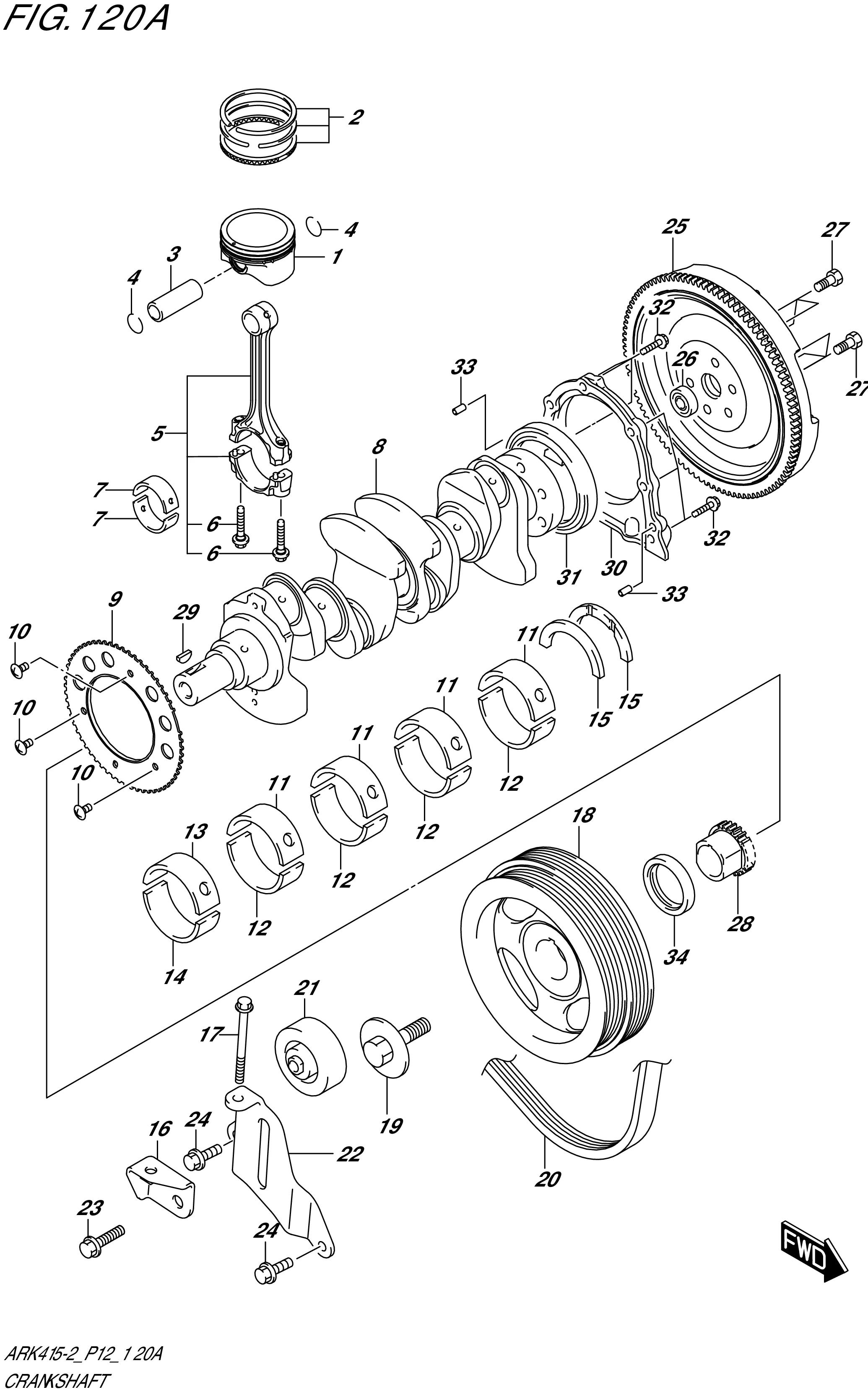

FIG. 120A- CRANKSHAFT

FIG. 120A- CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12111-73R00-000 PISTON 0 Rp101.000
2 12140-73R00-000 RING SET,PISTON 0 Rp81.500
3 12151-71L00-0C0
SUB: 12151B71L00N0C0		 PIN,PISTON 0 Rp49.000
4 09381-18002-000
SUB: 09381B18002N000		 CIRCLIP (OD:20.5) 0 Rp2.500
5 12160-73R00-000 CONNROD ASSY 0 Rp291.500
6 12163-69J00-000 .BOLT,CONNROD 0 Rp25.500
7-5 12181-77M00-0E0
SUB: 12181B77M00N0E0		 BEARING,CONNROD BLUE (STD,T:1. 0 Rp46.000
7-6 12181-77M00-025
SUB: 12181B77M00N025		 BEARING,CONNROD RED (US:0.25,T 0 Rp45.000
7-4 12181-77M00-0D0
SUB: 12181B77M00N0D0		 BEARING,CONNROD YELLOW (STD,T: 0 Rp45.000
7-3 12181-77M00-0C0
SUB: 12181B77M00N0C0		 BEARING,CONNROD NON (STD,T:1.5 0 Rp45.000
7-2 12181-77M00-0B0
SUB: 12181B77M00N0B0		 BEARING,CONNROD BLACK (STD,T:1 0 Rp45.000
7-1 12181-77M00-0A0
SUB: 12181B77M00N0A0		 BEARING,CONNROD GREEN (STD,T:1 0 Rp45.000
8 12221-73R00-000 CRANKSHAFT 0 Rp3.691.000
9 12222-73R00-000 PLATE,SENSOR 0 Rp39.000
10 12223-69G00-000 SCREW,SENSOR PLATE 6X10 (6X10) 0 Rp13.500
11-6 12341-77M00-0AA
SUB: 12341B77M00N0AA		 BEARING,CRANK UPR RED/PINK (US 0 Rp26.500
11-10 12341-77M00-0EA
SUB: 12341B77M00N0EA		 BEARING,CRANK UPR RED/BLACK (U 4 Rp26.500
11-9 12341-77M00-0DA
SUB: 12341B77M00N0DA		 BEARING,CRANK UPR RED/GREEN (U 4 Rp27.000
11-8 12341-77M00-0CA
SUB: 12341B77M00N0CA		 BEARING,CRANK UPR RED/BROWN (U 4 Rp26.500
11-7 12341-77M00-0BA
SUB: 12341B77M00N0BA		 BEARING,CRANK UPR RED/PURPLE ( 0 Rp26.500
11-5 12341-77M00-0E0
SUB: 12341B77M00N0E0		 BEARING,CRANK UPR BLACK (STD,T 0 Rp26.500
11-4 12341-77M00-0D0
SUB: 12341B77M00N0D0		 BEARING,CRANK UPR GREEN (STD,T 0 Rp26.500
11-3 12341-77M00-0C0
SUB: 12341B77M00N0C0		 BEARING,CRANK UPR BROWN (STD,T 0 Rp26.500
11-2 12341-77M00-0B0
SUB: 12341B77M00N0B0		 BEARING,CRANK UPR PURPLE (STD, 0 Rp26.500
11-1 12341-77M00-0A0
SUB: 12341B77M00N0A0		 BEARING,CRANK UPR PINK (STD,T: 0 Rp26.500
12-6 12345-77M00-0AA
SUB: 12345B77M00N0AA		 BEARING,CRANK LWR RED/PINK 4 Rp26.500
12-10 12345-77M00-0EA
SUB: 12345B77M00N0EA		 BEARING,CRANK LWR RED/BLACK 4 Rp26.500
12-9 12345-77M00-0DA
SUB: 12345B77M00N0DA		 BEARING,CRANK LWR RED/GREEN 4 Rp27.000
12-8 12345-77M00-0CA
SUB: 12345B77M00N0CA		 BEARING,CRANK LWR RED/BROWN 4 Rp26.500
12-7 12345-77M00-0BA
SUB: 12345B77M00N0BA		 BEARING,CRANK LWR RED/PURPLE 4 Rp26.500
12-5 12345-77M00-0E0
SUB: 12345B77M00N0E0		 BEARING,CRANK LWR BLACK 4 Rp26.500
12-4 12345-77M00-0D0
SUB: 12345B77M00N0D0		 BEARING,CRANK LWR GREEN 4 Rp26.500
12-3 12345-77M00-0C0
SUB: 12345B77M00N0C0		 BEARING,CRANK LWR BROWN 4 Rp26.500
12-2 12345-77M00-0B0
SUB: 12345B77M00N0B0		 BEARING,CRANK LWR PURPLE 4 Rp26.500
12-1 12345-77M00-0A0
SUB: 12345B77M00N0A0		 BEARING,CRANK LWR PINK 4 Rp26.500
13-4 12341-85K10-0Y0 BEARING, CRANK UPR (STD,T:2.0) 1 Rp140.500
13-10 12341-85K10-0ZA BEARING, CRANK UPR (US:0.25,T: 1 Rp144.000
13-9 12341-85K10-0YA BEARING, CRANK UPR (US:0.25,T: 1 Rp144.000
13-8 12341-85K10-0CA BEARING, CRANK UPR (US:0.25,T: 1 Rp139.000
13-7 12341-85K10-0BA BEARING, CRANK UPR (US:0.25,T: 1 Rp144.000
13-5 12341-85K10-0Z0 BEARING, CRANK UPR (STD,T:2.0) 1 Rp140.500
13-6 12341-85K10-0AA BEARING, CRANK UPR (US:0.25,T: 1 Rp133.000
13-1 12341-85K10-0A0 BEARING,CRANKSHAFT UPPER (STD, 1 Rp129.000
13-2 12341-85K10-0B0 BEARING,CRANKSHAFT UPPER (STD, 1 Rp142.500
13-3 12341-85K10-0C0 BEARING,CRANKSHAFT UPPER (STD, 1 Rp136.500
14-1 12345-85K00-0A0 BEARING,CRANKSHAFT LOWER (STD, 1 Rp71.500
14-2 12345-85K00-0B0 BEARING,CRANKSHAFT LOWER (STD, 1 Rp74.500
14-3 12345-85K00-0C0 BEARING,CRANKSHAFT LOWER (STD, 1 Rp71.500
14-4 12345-85K00-0Y0 BEARING, CRANK LWR (STD,T:2.0) 1 Rp77.000
14-5 12345-85K00-0Z0 BEARING, CRANK LWR (STD,T:2.0) 1 Rp77.000
14-6 12345-85K00-0AA BEARING, CRANK LWR (US:0.25,T: 1 Rp73.000
14-7 12345-85K00-0BA BEARING, CRANK LWR (US:0.25,T: 1 Rp79.000
14-8 12345-85K00-0CA BEARING, CRANK LWR (US:0.25,T: 1 Rp73.000
14-9 12345-85K00-0YA BEARING, CRANK LWR (US:0.25,T: 1 Rp79.000
14-10 12345-85K00-0ZA BEARING, CRANK LWR (US:0.25,T: 1 Rp79.000
15-1 12351-77M00-000
SUB: 12351B77M00N000		 BEARING,CRANK THRUST (STD,T:2. 2 Rp17.500
15-2 12351-77M00-012
SUB: 12351B77M00N012		 BEARING,CRANK THRUST (US:0.125 2 Rp43.500
16 11562-73R00-000 ADJUSTER,GENERATOR 1 Rp8.000
17 11563-61M00-000 BOLT,GEN BELT ADJUSTING 1 Rp57.000
18 12610-73R00-000 PULLEY,CRANKSHAFT 1 Rp293.500
19 12619-67LA0-000
SUB: 12619B67LA0N000		 BOLT,CRANK PULLEY (12X37) 1 Rp54.000
20 17521-73R00-000 BELT,WATER PUMP (5PK913) 1 Rp79.000
21 17530-62R03-000
SUB: 17530-62R02-000		 PULLEY,BELT TENSIONER 1 Rp580.000
22 17541-73R00-000 ARM,BELT TENSIONER 1 Rp46.500
23 17545-62R00-000 BOLT,TENSIONER PULLEY 1 Rp41.500
24 01550-0825A-000
SUB: 01550B0825AN000		 BOLT (8X25) 2 Rp3.500
25 12620-73R00-000 FLYWHEEL 1 Rp1.025.000
26 12623-61J00-000
SUB: 12623B61J00N000		 BEARING,INPUT SHAFT 1 Rp39.500
27 09103-10440-000 BOLT (10X18.5) 6 Rp33.000
28 12631-54GA1-000 SPROCKET,CRANKSHAFT TIMING 1 Rp171.500
29 08341M31059-000
SUB: 08341-31059-000		 KEY 1 Rp4.500
30 11341M51K00-000
SUB: 11341-51K00-000		 HOUSING,OIL SEAL 1 Rp73.000
31 11342-67LD0-000 SEAL CRANKSHAFT REAR OIL 1 Rp70.000
32 09103-06282-000 BOLT (6X25) 6 Rp16.500
33 04221-06129-000 PIN (4X6X11) 2 Rp12.500
34 16141-73R00-000 SEAL,CRANKSHAFT FRONT OIL 1 Rp52.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
