ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 34PA - WIRING HARNESS REAR SIDE FIG. 34WA - BODY HARNESS FIG. 50CA - FRONT BRAKE PIPING (N_ESP)FIG- 50CB- FRONT BRAKE PIPING (W_ESP)FIG- 50DA- REAR BRAKE PIPING FIG- 73AA- HEATER CONTROL (GA,GL)FIG. 73AB- HEATER CONTROL (GX)FIG. 101A- SHORT ENGINE ASSY FIG. 105A- ENGINE GASKET SET FIG. 110A- CYLINDER HEAD COVER FIG. 111A- CYLINDER HEAD FIG.112A- CYLINDER FIG. 115A- OIL PAN FIG. 120A- CRANKSHAFT FIG. 122A- CAM SHAFT/VALVE FIG. 124A- CAM CHAIN FIG. 128A- ENGINE MOUNTING (5MT)FIG. 128B- ENGINE MOUNTING (4AT)FIG. 130A- INTAKE MANIFOLD FIG. 142A- THROTTLE BODY FIG. 150A- AIR CLEANER FIG. 154A- EXHAUST MANIFOLD FIG. 156A- MUFFLER FIG. 157A- DELIVERY PIPE FIG. 160A- FUEL PUMP FIG. 176A- OIL PUMP FIG. 180A- WATER PUMP FIG. 184A- RADIATOR (5MT)FIG. 184B- RADIATOR (4AT)FIG. 188A- WATER HOSE (5MT)FIG. 188B- WATER HOSE (4AT)FIG. 190A- EMISSION CONTROL FIG. 199A- LABEL FIG. 202A- MT CLUTCH (5MT)FIG. 204A- MT TRANSMISSION GEAR (5MT)FIG. 206A- MT TRANSMISSION CASE (5MT)FIG. 208A- MT GEAR SHIFT FORK (5MT)FIG. 210A- AT TRANSMISSION ASSY (4AT)FIG. 214A- AT OIL PUMP (4AT)FIG. 216A- AT INPUT SHAFT (4AT)FIG. 220A- AT PLANETARY GEAR (4AT)FIG. 226A- AT REDUCTION GEAR (4AT)FIG. 228A- AT FORWARD CLUTCH (4AT)FIG. 234A- AT 1ST/REVERSE BRAKE (4AT)FIG. 237A- AT OVER DRIVE BRAKE (4AT)FIG. 240A- AT TRANSMISSION CASE (4AT)FIG. 242A- AT OIL PAN (4AT)FIG. 244A- AT VALVE (4AT)FIG. 246A- AT PARKING LOCK (4AT)FIG. 248A- AT OIL HOSE (4AT)

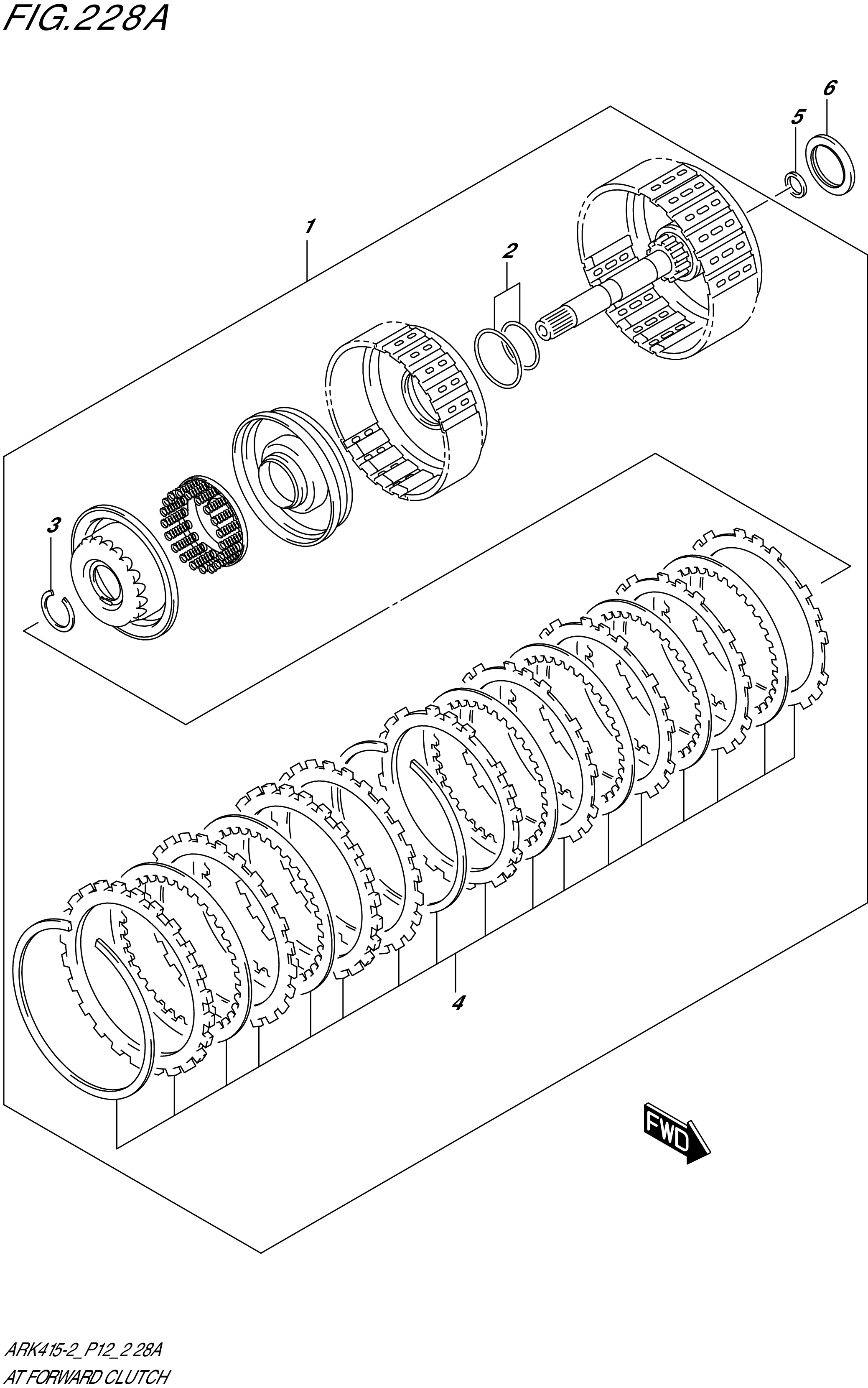

FIG. 228A- AT FORWARD CLUTCH (4AT)

FIG. 228A- AT FORWARD CLUTCH (4AT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24200-77M10-000	CLUTCH ASSY,FORWARD	1	Rp7.565.500
2	26614-77MT0-000	.O-RING SET,FORWARD CLUTCH	1	Rp47.500
3	26617-79C10-000	.RING,BALANCER SNAP	1	Rp29.500
4	26618-77MT0-000	.DISC SET,FWD&REV CLUTCH	1	Rp2.971.500
5	24271-77M10-000	RING,INTERMEDIATE SHAFT SEAL	1	Rp55.500
6	24975-77M10-000	BEARING,REVERSE CL DRUM	1	Rp232.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
