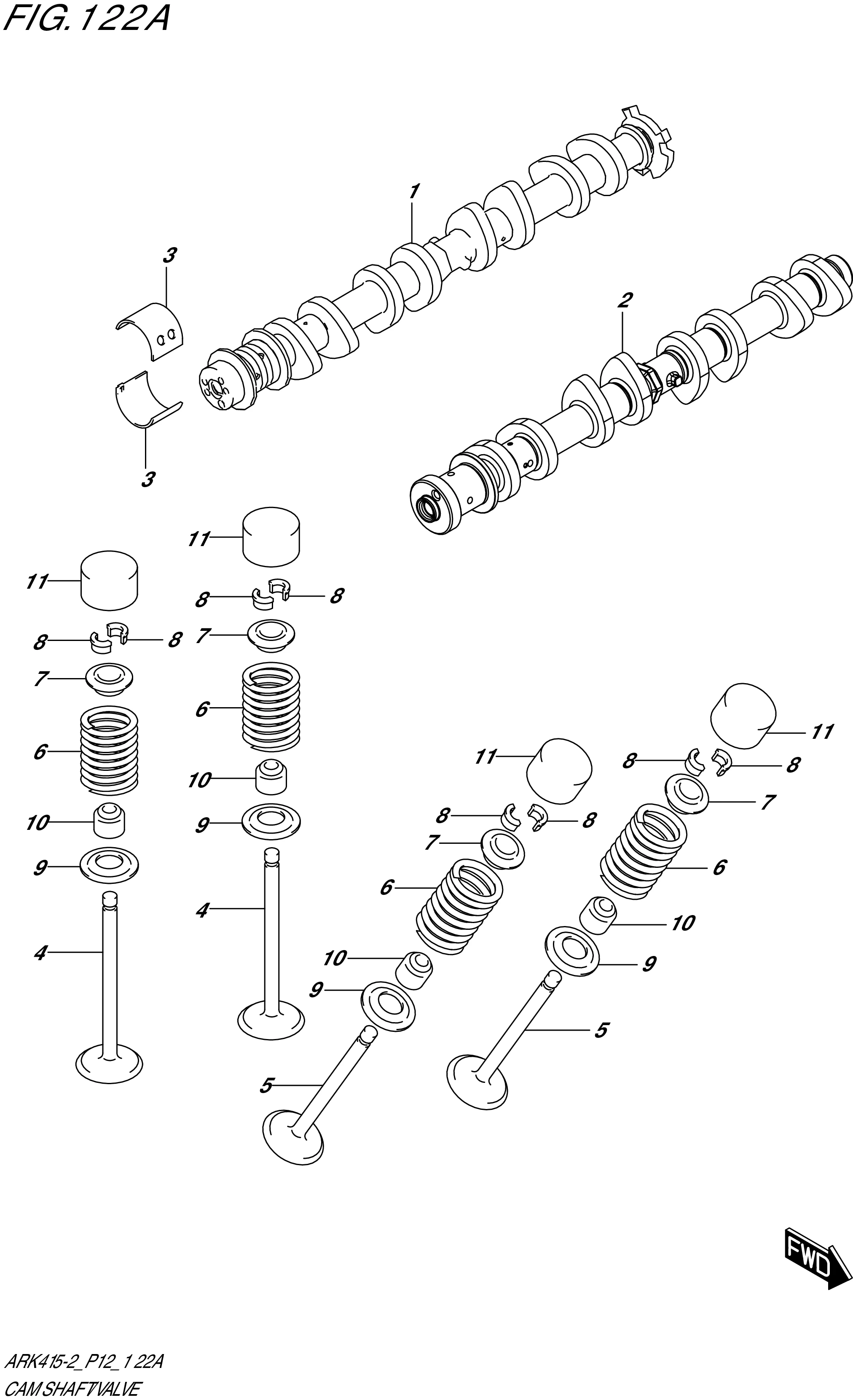

FIG. 122A- CAM SHAFT/VALVE

No	No. Part	Description	Price Per Pcs
1	12710-73R00-000	CAMSHAFT,INTK	Rp1.242.500
2	12721-73R00-000	CAMSHAFT,EXH	Rp1.213.000
3	12737-77M00-000 SUB: 12737B77M00N000	BEARING,CAMSHAFT	Rp42.000
4	12911-77M00-000 SUB: 12911B77M00N000	VALVE,INTK	Rp60.000
5	12915-77M00-000 SUB: 12915B77M00N000	VALVE,EXH	Rp60.000
6	12921-77M00-000	SPRING,VALVE	Rp13.000
7	12931-69L00-000	RETAINER,VALVE SPRING	Rp42.000
8	12932-24F00-000	COTTER VALVE	Rp15.000
9	12933M51E00-000 SUB: 12933-51E00-000	SEAT,VALVE SPRING	Rp3.500
10	12934-77M00-000	SEAL,VALVE STEM	Rp9.500
11-14	12891-51K00-336	TAPPET,T:3.36 (T:3.36)	Rp226.000
11-25	12891-51K00-358	TAPPET,T:3.58 (T:3.58)	Rp232.500
11-15	12891-51K00-338	TAPPET,T:3.38 (T:3.38)	Rp226.000
11-16	12891-51K00-340	TAPPET,T:3.40 (T:3.40)	Rp227.000
11-17	12891-51K00-342	TAPPET,T:3.42 (T:3.42)	Rp220.000
11-18	12891-51K00-344	TAPPET,T:3.44 (T:3.44)	Rp232.500
11-19	12891-51K00-346	TAPPET,T:3.46 (T:3.46)	Rp226.000
11-20	12891-51K00-348	TAPPET,T:3.48 (T:3.48)	Rp226.000
11-21	12891-51K00-350	TAPPET,T:3.50 (T:3.50)	Rp232.500
11-22	12891-51K00-352	TAPPET,T:3.52 (T:3.52)	Rp232.500
11-23	12891-51K00-354	TAPPET,T:3.54 (T:3.54)	Rp232.500
11-24	12891-51K00-356	TAPPET,T:3.56 (T:3.56)	Rp226.000
11-13	12891-51K00-334	TAPPET,T:3.34 (T:3.34)	Rp232.500
11-12	12891-51K00-332	TAPPET,T:3.32 (T:3.32)	Rp232.500
11-11	12891-51K00-330	TAPPET,T:3.30 (T:3.30)	Rp232.500
11-10	12891-51K00-328	TAPPET,T:3.28 (T:3.28)	Rp232.500
11-9	12891-51K00-326	TAPPET,T:3.26 (T:3.26)	Rp234.500
11-8	12891-51K00-324	TAPPET,T:3.24 (T:3.24)	Rp232.500
11-7	12891-51K00-322	TAPPET,T:3.22 (T:3.22)	Rp232.500
11-6	12891-51K00-320	TAPPET,T:3.20 (T:3.20)	Rp232.500
11-5	12891-51K00-318	TAPPET,T:3.18 (T:3.18)	Rp232.500
11-4	12891-51K00-316	TAPPET,T:3.16	Rp232.500
11-3	12891-51K00-314	TAPPET,T:3.14	Rp234.500
11-2	12891-51K00-312	TAPPET,T:3.12	Rp234.500
11-1	12891-51K00-310	TAPPET,T:3.10	Rp227.500
