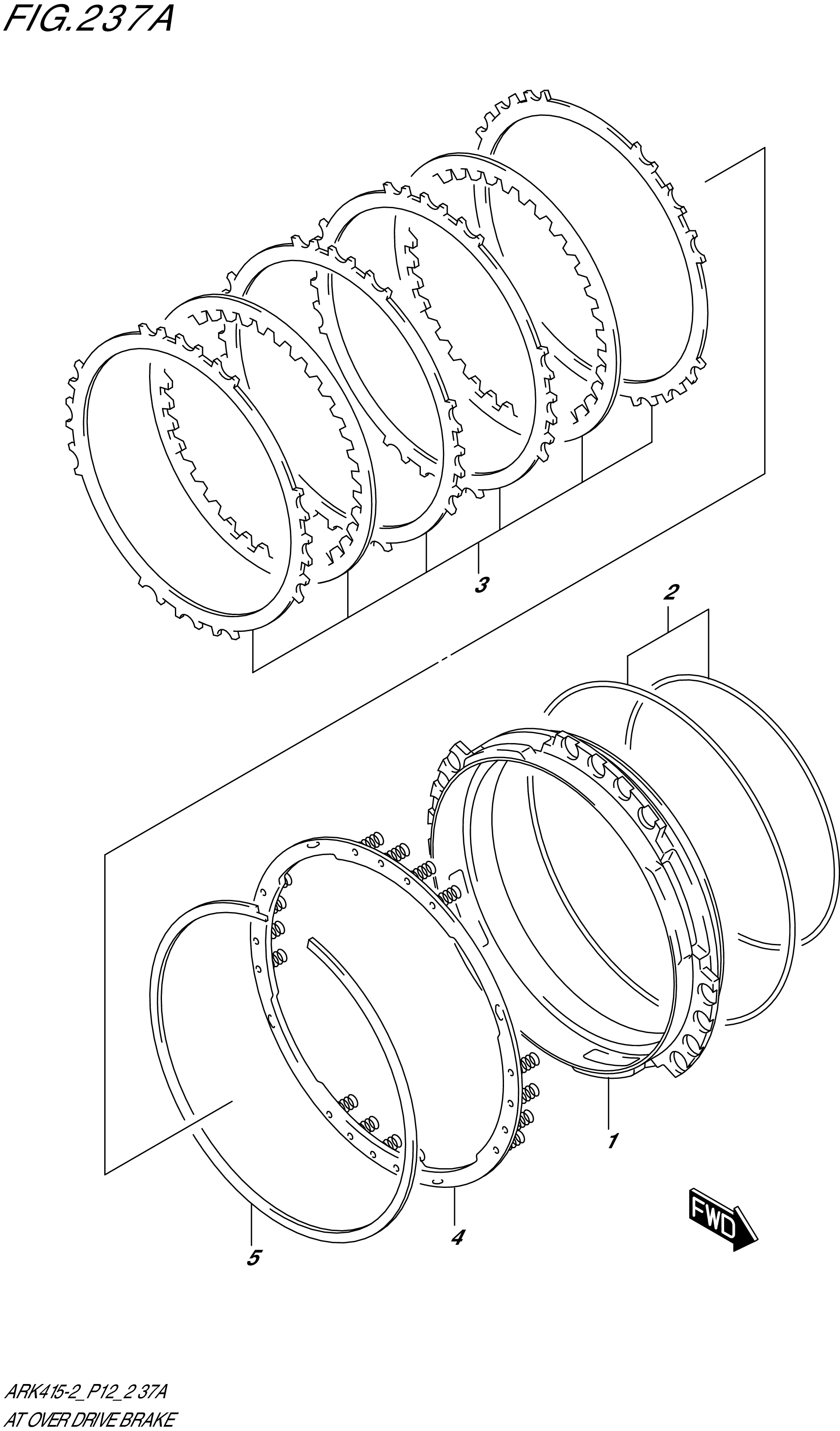

FIG. 237A- AT OVER DRIVE BRAKE (4AT)

FIG. 237A- AT OVER DRIVE BRAKE (4AT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	26771-77M10-000	PISTON,O/D BRAKE	1	Rp410.500
2	26772-77MT0-000	O-RING SET,O/D BRAKE PISTON	1	Rp92.000
3	26774-77MT0-000	DISC SET,O/D BRAKE	1	Rp1.461.000
4	26780-77M10-000	SPRING S/ASSY,O/D BRAKE RETURN	1	Rp174.000
5	26791-77M10-000	RING,O/D BK RETURN SPRING SNAP	1	Rp74.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
