ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 34PA - WIRING HARNESS REAR SIDE FIG. 34WA - BODY HARNESS FIG. 50CA - FRONT BRAKE PIPING (N_ESP)FIG- 50CB- FRONT BRAKE PIPING (W_ESP)FIG- 50DA- REAR BRAKE PIPING FIG- 73AA- HEATER CONTROL (GA,GL)FIG. 73AB- HEATER CONTROL (GX)FIG. 101A- SHORT ENGINE ASSY FIG. 105A- ENGINE GASKET SET FIG. 110A- CYLINDER HEAD COVER FIG. 111A- CYLINDER HEAD FIG.112A- CYLINDER FIG. 115A- OIL PAN FIG. 120A- CRANKSHAFT FIG. 122A- CAM SHAFT/VALVE FIG. 124A- CAM CHAIN FIG. 128A- ENGINE MOUNTING (5MT)FIG. 128B- ENGINE MOUNTING (4AT)FIG. 130A- INTAKE MANIFOLD FIG. 142A- THROTTLE BODY FIG. 150A- AIR CLEANER FIG. 154A- EXHAUST MANIFOLD FIG. 156A- MUFFLER FIG. 157A- DELIVERY PIPE FIG. 160A- FUEL PUMP FIG. 176A- OIL PUMP FIG. 180A- WATER PUMP FIG. 184A- RADIATOR (5MT)FIG. 184B- RADIATOR (4AT)FIG. 188A- WATER HOSE (5MT)FIG. 188B- WATER HOSE (4AT)FIG. 190A- EMISSION CONTROL FIG. 199A- LABEL FIG. 202A- MT CLUTCH (5MT)FIG. 204A- MT TRANSMISSION GEAR (5MT)FIG. 206A- MT TRANSMISSION CASE (5MT)FIG. 208A- MT GEAR SHIFT FORK (5MT)FIG. 210A- AT TRANSMISSION ASSY (4AT)FIG. 214A- AT OIL PUMP (4AT)FIG. 216A- AT INPUT SHAFT (4AT)FIG. 220A- AT PLANETARY GEAR (4AT)FIG. 226A- AT REDUCTION GEAR (4AT)FIG. 228A- AT FORWARD CLUTCH (4AT)FIG. 234A- AT 1ST/REVERSE BRAKE (4AT)FIG. 237A- AT OVER DRIVE BRAKE (4AT)FIG. 240A- AT TRANSMISSION CASE (4AT)FIG. 242A- AT OIL PAN (4AT)FIG. 244A- AT VALVE (4AT)FIG. 246A- AT PARKING LOCK (4AT)FIG. 248A- AT OIL HOSE (4AT)

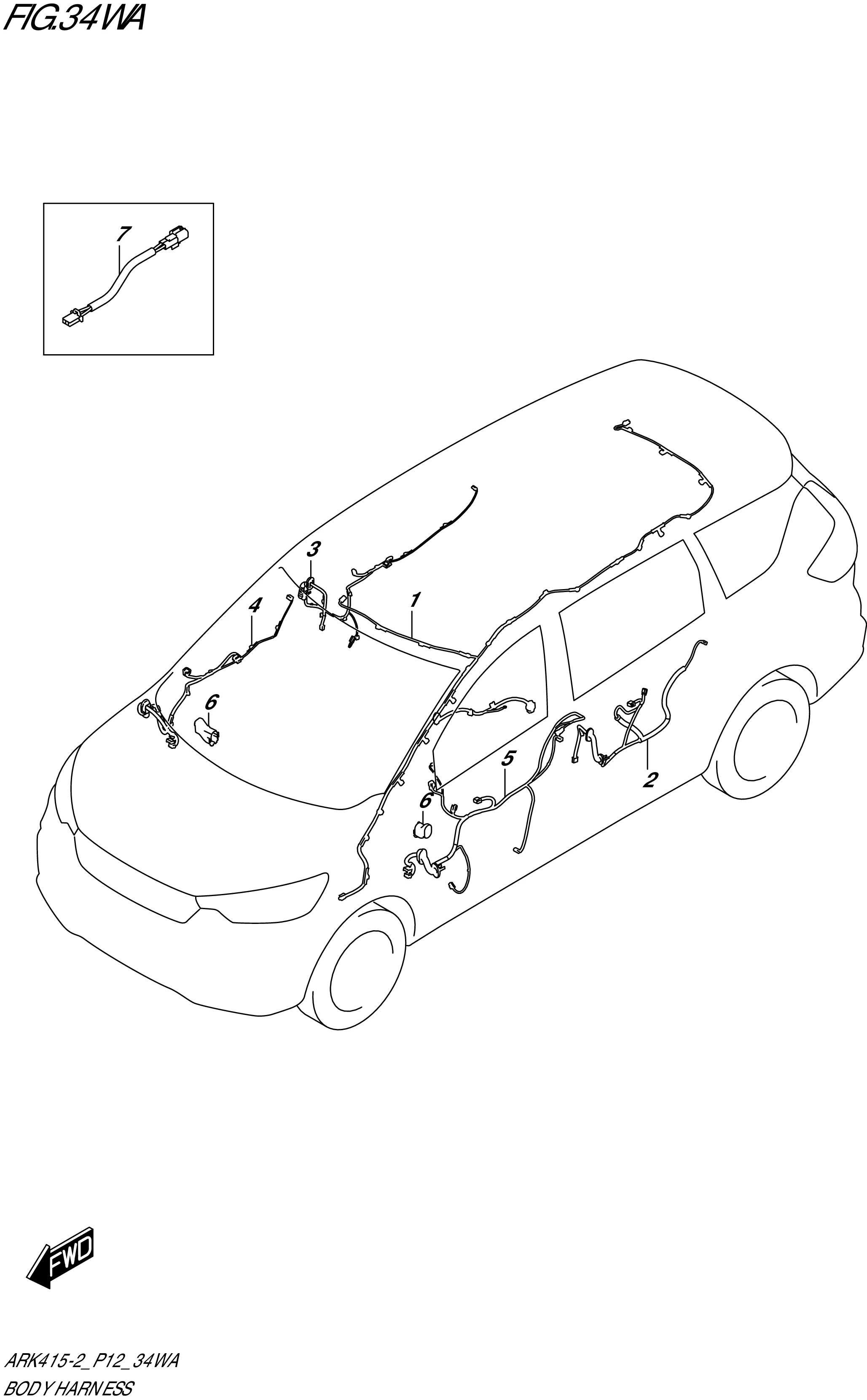

FIG. 34WA - BODY HARNESS

FIG. 34WA - BODY HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	36820-73R00-000	WIRE,ROOF	0	Rp146.000
1-2	36820-73R10-000	WIRE,ROOF	0	Rp168.500
1-3	36820-73R20-000	WIRE,ROOF	0	Rp150.500
2-1	36751-73RA0-000	WIRE,REAR DOOR L SIDE	0	Rp176.000
2-2	36751-73RB0-000	WIRE,REAR DOOR L SIDE	0	Rp163.000
3-1	36751-73R00-000	WIRE,REAR DOOR R SIDE	0	Rp175.000
3-2	36751-73R10-000	WIRE,REAR DOOR R SIDE	0	Rp161.000
4-1	36756-73R00-000	WIRE,DRVR DOOR	0	Rp352.500
4-2	36756-73R10-000	WIRE,DRVR DOOR	0	Rp371.000
4-3	36756-73R20-000	WIRE,DRVR DOOR	0	Rp496.000
5-1	36757-73R00-000	WIRE,SUB DOOR	0	Rp190.000
5-2	36757-73R10-000	WIRE,SUB DOOR	0	Rp195.000
5-3	36757-73R20-000	WIRE,SUB DOOR	0	Rp286.000
6	36759M68P00-000	PROTECTOR,DOOR HARN	0	Rp17.500
7	36691-73R00-000	WIRE,A/B	0	Rp563.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
