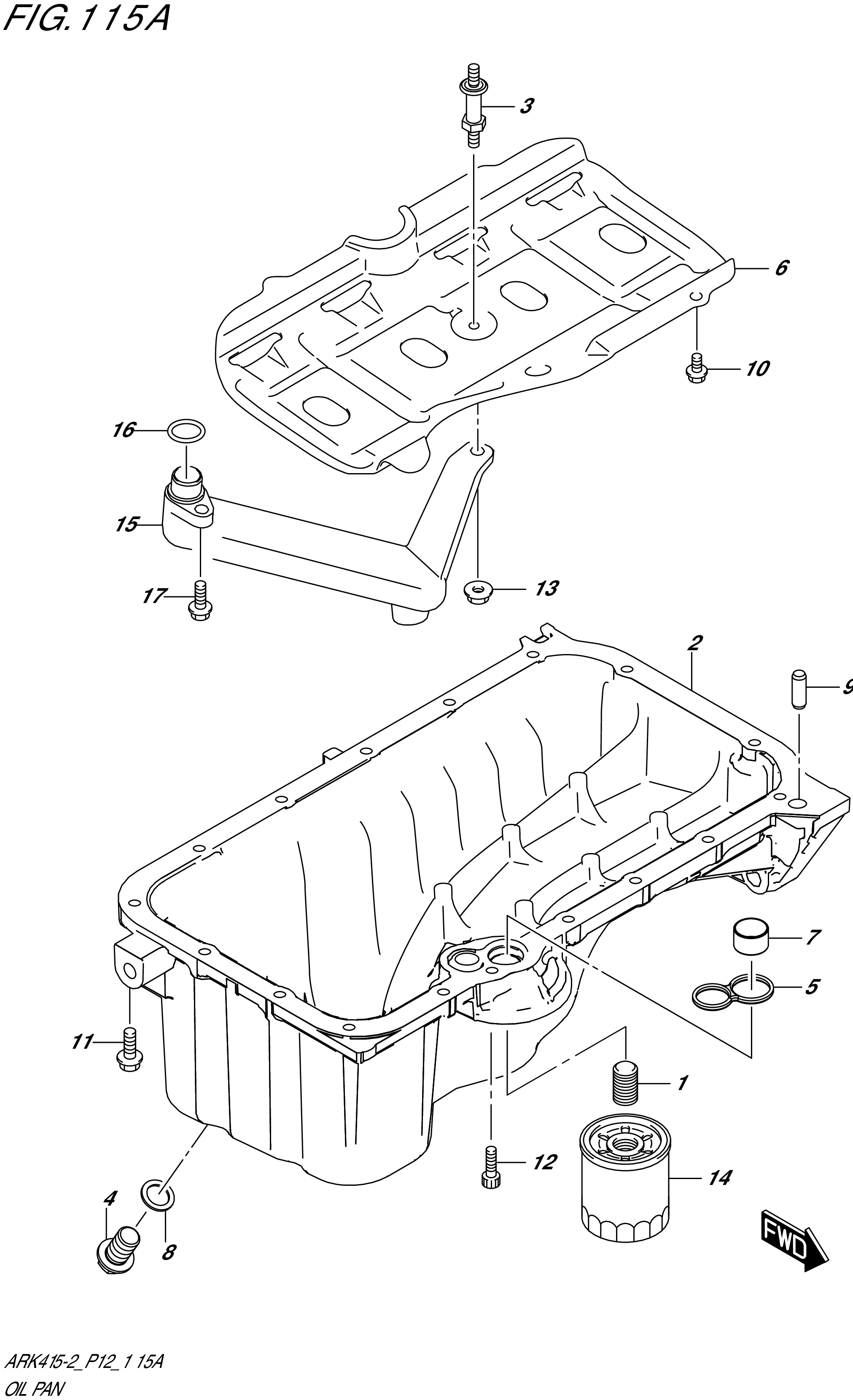

FIG. 115A- OIL PAN

FIG. 115A- OIL PAN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11241-68K00-000 SUB: 11241B68K00N000	STAND,OIL FILTER	0	Rp15.000
2	11511-73R00-000	PAN,OIL	0	Rp539.000
3	11515-51K03-000	BOLT,OIL PAN BAFFLE STUD	0	Rp54.000
4	11518-63J20-000	PLUG,OIL DRAIN	0	Rp29.500
5	11518-67LA0-000 SUB: 11518B67LA0N000	O-RING,OIL PAN	0	Rp6.000
6	11541M73K00-000 SUB: 11541-73K10-000	PLATE,OIL PAN BAFFLE	0	Rp86.500
7	16114M69J00-000 SUB: 16114B69J00N000	PIN,OIL PAN DOWEL	0	Rp14.500
8	09168-14015-000	GASKET,14X20X1.5 (14X20X1.5)	0	Rp7.500
9	09202-08004-000 SUB: 09202B08004N000	PIN (8X23)	0	Rp6.500
10	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	0	-
11	01550-0625C-000	BOLT (6X25)	0	Rp14.500
12	07130-0625A-000 SUB: 07130B0625AN000	BOLT (6X25)	0	Rp3.500
13	08316-1006A-000 SUB: 08316B1006AN000	NUT (6X12)	0	Rp2.000
14	16510-61J00-000	FILTER ASSY,OIL	0	Rp37.000
15	16520-73R01-000 SUB: 16520-73R00-000	STRAINER,OIL PUMP	0	Rp72.500
16	51181-37B00-000 SUB: 09280B17002N000	O-RING (D:2.4,ID:16.8)	0	Rp5.000
17	07120-0620A-000	BOLT (6X20)	0	Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
