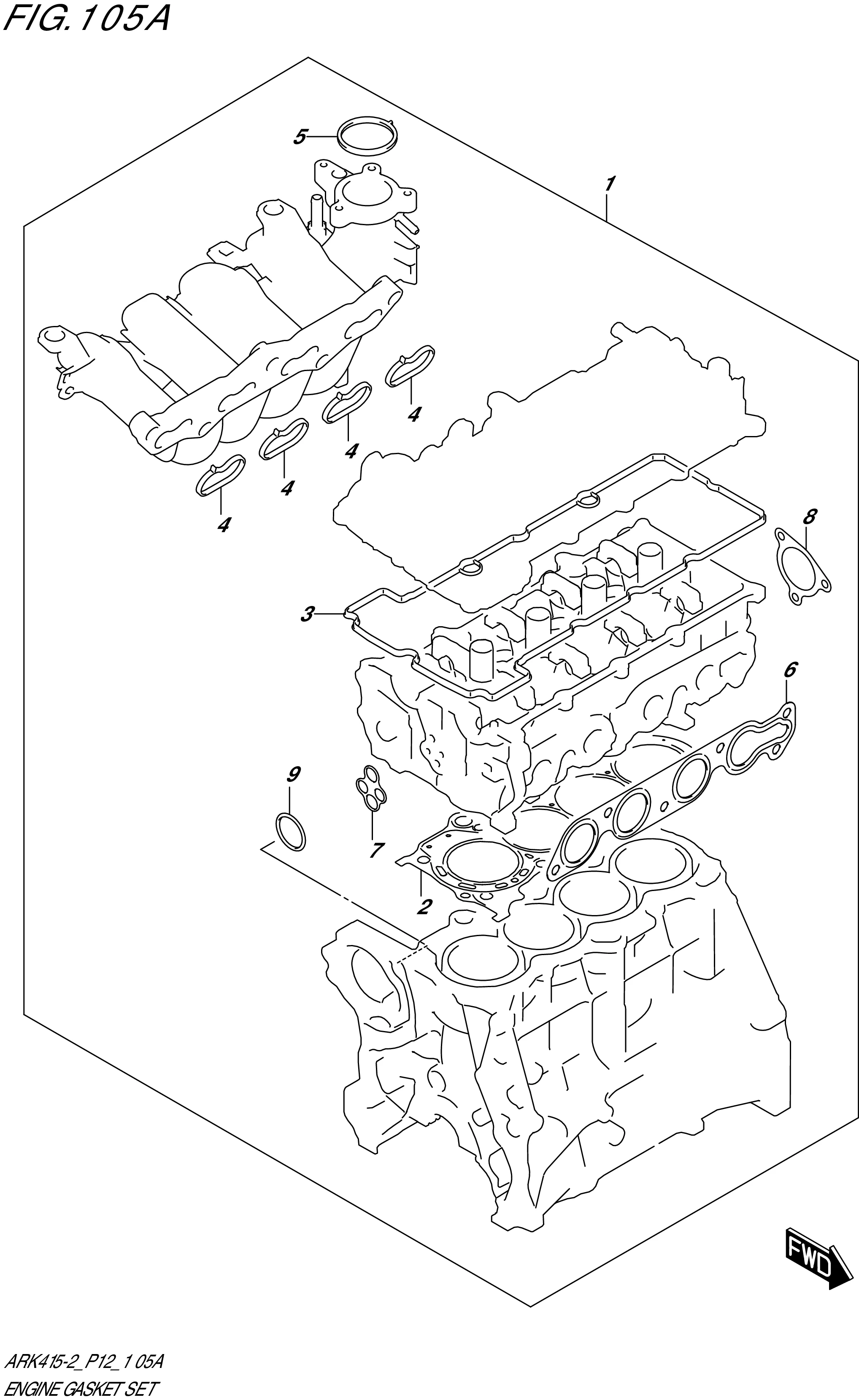

FIG. 105A- ENGINE GASKET SET

FIG. 105A- ENGINE GASKET SET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11400-59820-000	GASKET SET,ENGINE	0	Rp354.500
2	11141-73R00-000	.GASKET,CYL HEAD	0	Rp133.500
3	11189-62R10-000	.GASKET,CYL HEAD COVER	0	Rp50.500
4	13118-67LB0-000	.GASKET, INTK MANF	0	Rp10.500
5	13421-67LB0-000	.GASKET,THROTTLE BODY	0	Rp15.000
6	14140-59R00-000	.GASKET,EXH MANF	0	Rp43.000
7	16118-77M00-000	.O RING, OCV	0	Rp9.500
8	17699-67LA0-000 SUB: 17699B67LA0N000	.GASKET,THERMO CASE	0	Rp13.500
9	09280-28008-000 SUB: 09280B28008N000	.O RING (D:3.5,ID:27.7)	0	Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
