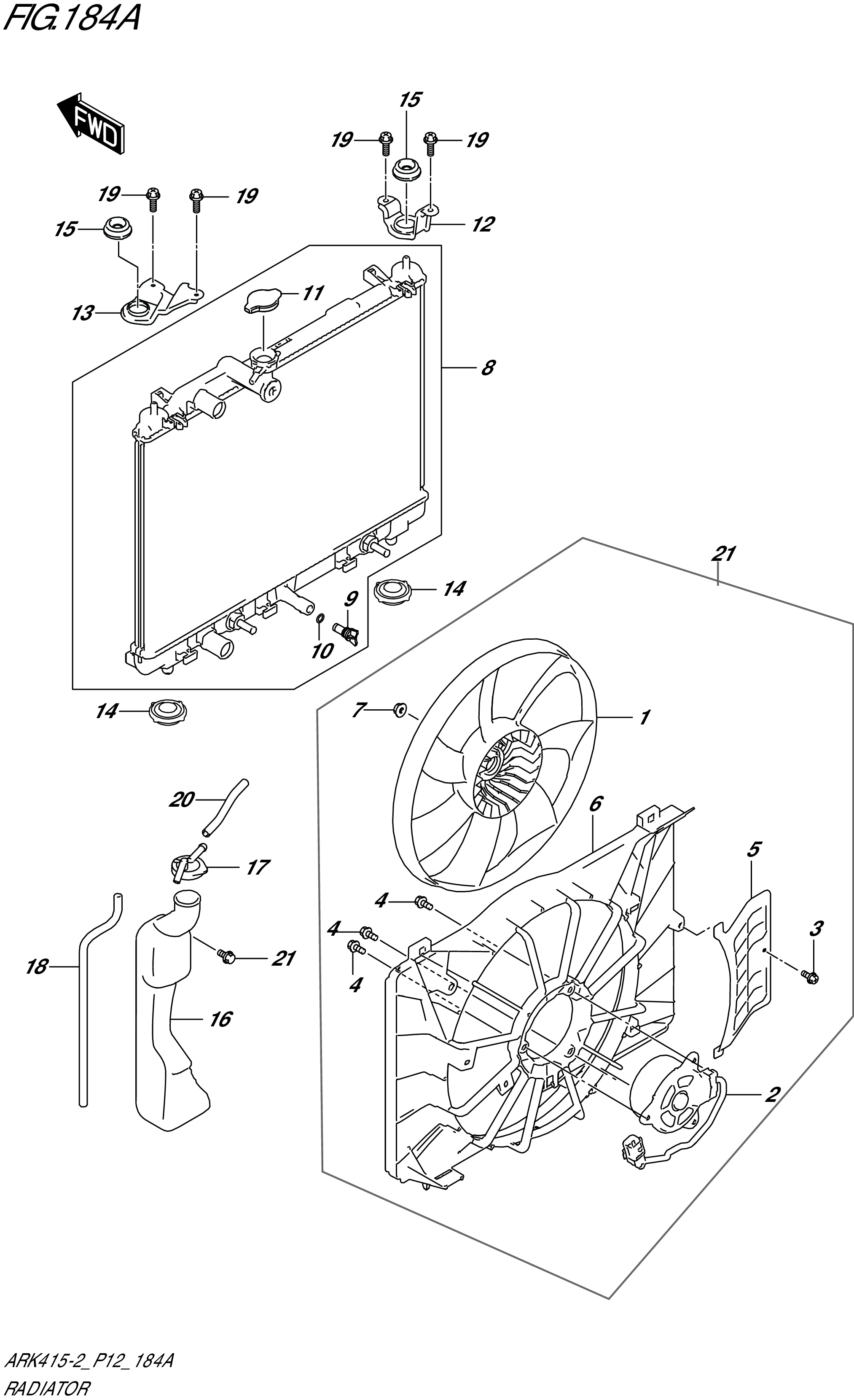

FIG. 184A- RADIATOR (5MT)

FIG. 184A- RADIATOR (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17111-73R00-000	.FAN ASSY	1	Rp376.000
2	17120-73R00-000	.MOTOR ASSY,COOLING FAN	1	Rp816.500
3	17129-50F10-000	.SCREW (M4)	1	Rp21.500
4	17129-56F00-000	.SCREW,FAN MOTOR (5X11)	3	Rp24.000
5	17191-73R00-000	.BRACKET	1	Rp112.000
6	17760-73R00-000	.SHOROUD ASSY,FAN	1	Rp155.000
7	08316-2005A-000	.NUT	1	Rp13.000
8	17700-73R00-000	RADIATOR ASSY	1	Rp1.567.000
9	17751-61A00-000 SUB: 17751B61A00N000	.VALVE ASSY,STOP	1	Rp13.000
10	17759-82K00-000 SUB: 17759B82K00N000	.O-RING	1	Rp7.500
11	DISCONTINUE SUB: 17920B75F00N000	.CAP,RADIATOR (1.1)	1	-
12	17861-52R00-000	BRACKET,RDTR SUPPORT UPPER R	1	Rp31.000
13	17861-72R00-000	BRACKET,RDTR SUPPORT UPPER L	1	Rp33.500
14	17878-77MA0-000 SUB: 17878B77MA0N000	MOUNT, RADIATOR SUPPORT LOWER	2	Rp12.500
15	17879-73R00-000	MOUNT,RADIATOR SUPPORT UPPER	2	Rp8.000
16	17931-68P00-000	TANK,WATER RESERVE	1	Rp62.000
17	17932-76G00-000 SUB: 17932B76G00N000	CAP,WTR RSVR TANK	1	Rp5.500
18	17934-73R00-000	HOSE,RSV TANK	1	Rp22.000
19	09122-76003-000	SCREW (6X16)	4	Rp15.000
20	09352-70L04-120	HOSE,RDTR TO RSV TANK	1	Rp6.500
21	DISCONTINUE SUB: 17100-73R00-000	BLOWER ASSY,W/SHROUD	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
