ALL NEW ERTIGA SUZUKI SPORT

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 34PA - WIRING HARNESS REAR SIDE FIG. 34WA - BODY HARNESS FIG. 50CA - FRONT BRAKE PIPING (N_ESP)FIG- 50CB- FRONT BRAKE PIPING (W_ESP)FIG- 50DA- REAR BRAKE PIPING FIG- 73AA- HEATER CONTROL (GA,GL)FIG. 73AB- HEATER CONTROL (GX)FIG. 101A- SHORT ENGINE ASSY FIG. 105A- ENGINE GASKET SET FIG. 110A- CYLINDER HEAD COVER FIG. 111A- CYLINDER HEAD FIG.112A- CYLINDER FIG. 115A- OIL PAN FIG. 120A- CRANKSHAFT FIG. 122A- CAM SHAFT/VALVE FIG. 124A- CAM CHAIN FIG. 128A- ENGINE MOUNTING (5MT)FIG. 128B- ENGINE MOUNTING (4AT)FIG. 130A- INTAKE MANIFOLD FIG. 142A- THROTTLE BODY FIG. 150A- AIR CLEANER FIG. 154A- EXHAUST MANIFOLD FIG. 156A- MUFFLER FIG. 157A- DELIVERY PIPE FIG. 160A- FUEL PUMP FIG. 176A- OIL PUMP FIG. 180A- WATER PUMP FIG. 184A- RADIATOR (5MT)FIG. 184B- RADIATOR (4AT)FIG. 188A- WATER HOSE (5MT)FIG. 188B- WATER HOSE (4AT)FIG. 190A- EMISSION CONTROL FIG. 199A- LABEL FIG. 202A- MT CLUTCH (5MT)FIG. 204A- MT TRANSMISSION GEAR (5MT)FIG. 206A- MT TRANSMISSION CASE (5MT)FIG. 208A- MT GEAR SHIFT FORK (5MT)FIG. 210A- AT TRANSMISSION ASSY (4AT)FIG. 214A- AT OIL PUMP (4AT)FIG. 216A- AT INPUT SHAFT (4AT)FIG. 220A- AT PLANETARY GEAR (4AT)FIG. 226A- AT REDUCTION GEAR (4AT)FIG. 228A- AT FORWARD CLUTCH (4AT)FIG. 234A- AT 1ST/REVERSE BRAKE (4AT)FIG. 237A- AT OVER DRIVE BRAKE (4AT)FIG. 240A- AT TRANSMISSION CASE (4AT)FIG. 242A- AT OIL PAN (4AT)FIG. 244A- AT VALVE (4AT)FIG. 246A- AT PARKING LOCK (4AT)FIG. 248A- AT OIL HOSE (4AT)

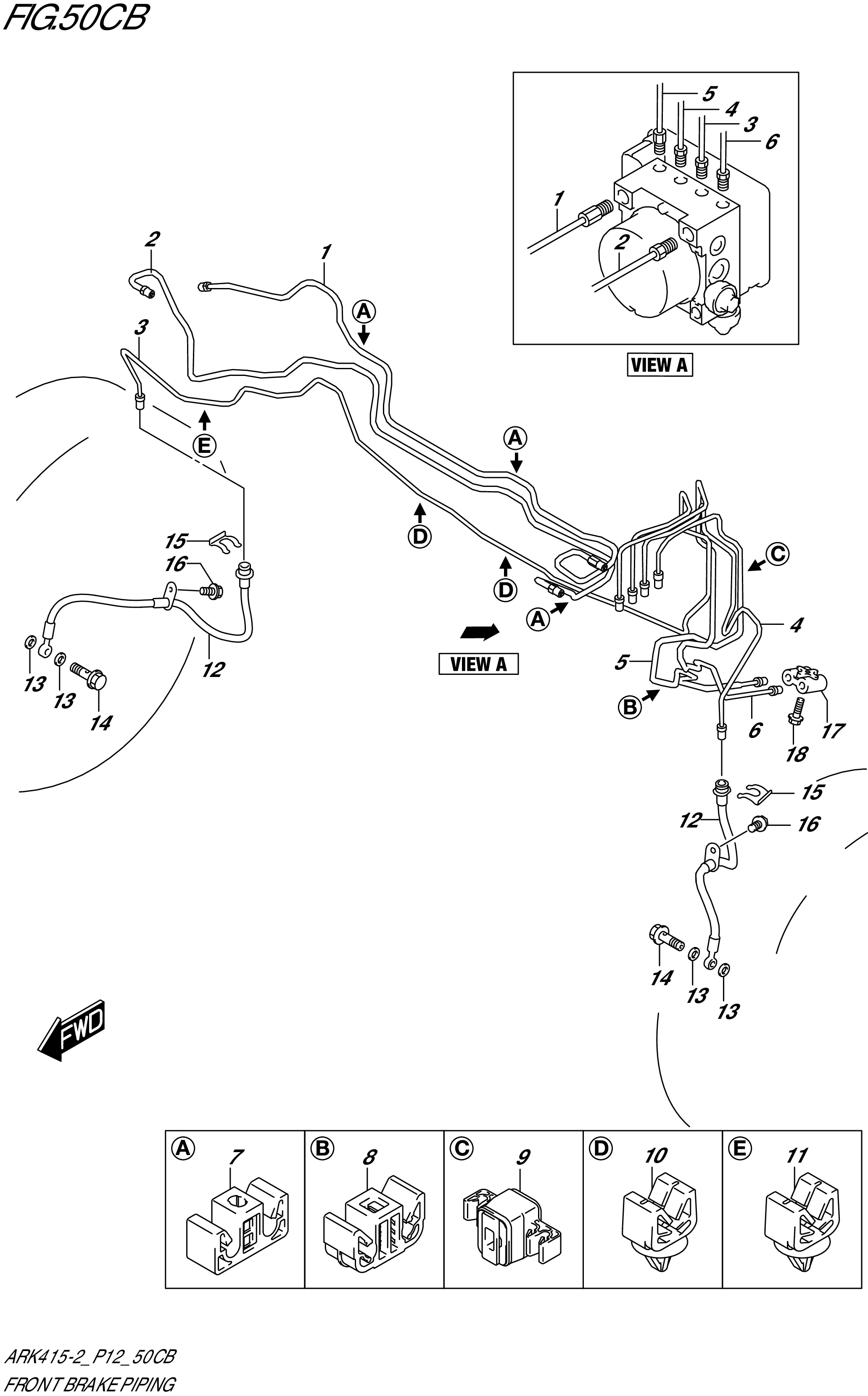

FIG- 50CB- FRONT BRAKE PIPING (W_ESP)

FIG- 50CB- FRONT BRAKE PIPING (W_ESP)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	51410-73R00-000	PIPE,MA PRI TO HU	0	Rp67.500
2	51420-73R00-000	PIPE,MA SEC TO HU	0	Rp83.000
3	51430-73R00-000	PIPE,HU TO FR BK HOSE,R	0	Rp54.500
4	51440-73R00-000	PIPE,HU TO FR BK HOSE,L	0	Rp54.500
5	51450-73R00-000	PIPE,HU TO JOINT,R	0	Rp46.500
6	51460-73R00-000	PIPE,HU TO JOINT,L	0	Rp39.000
7	51751-65J30-000	CLAMP,BK PIPE FR SIDE	0	Rp38.500
8	51751-67L20-000 SUB: 51751B67L20N000	CLAMP,BK PIPE RR FL DOUBLE	0	Rp6.500
9	51751M68P00-000	CLAMP,BK PIPE	0	Rp46.000
10	51761-77M40-000 SUB: 51761B77M40N000	CLAMP, BRAKE PIPE	0	Rp6.500
11	51761-77M40-000 SUB: 51761B77M40N000	CLAMP, BRAKE PIPE	0	Rp6.500
12	51550-68R01-000	HOSE,FR BRAKE FLEXIBLE	0	Rp214.500
13	51562-67L20-000 SUB: 51562B67L20N000	WASHER,FR DISC FLEXIBLE HOSE	0	Rp6.500
14	51561M55K00-000 SUB: 09360-10046-000	UNION (M10X1.0X23)	0	Rp8.500
15	09383M13004-000 SUB: 09383-13003-000	E RING	0	Rp7.000
16	01551-0816C-000	BOLT	0	Rp13.500
17	DISCONTINUE SUB: 51630B81K00N000	JOINT,BRAKE 4 WAY	0	-
18	02162M0625E-000	BOLT,BRAKE JOINT	0	Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
