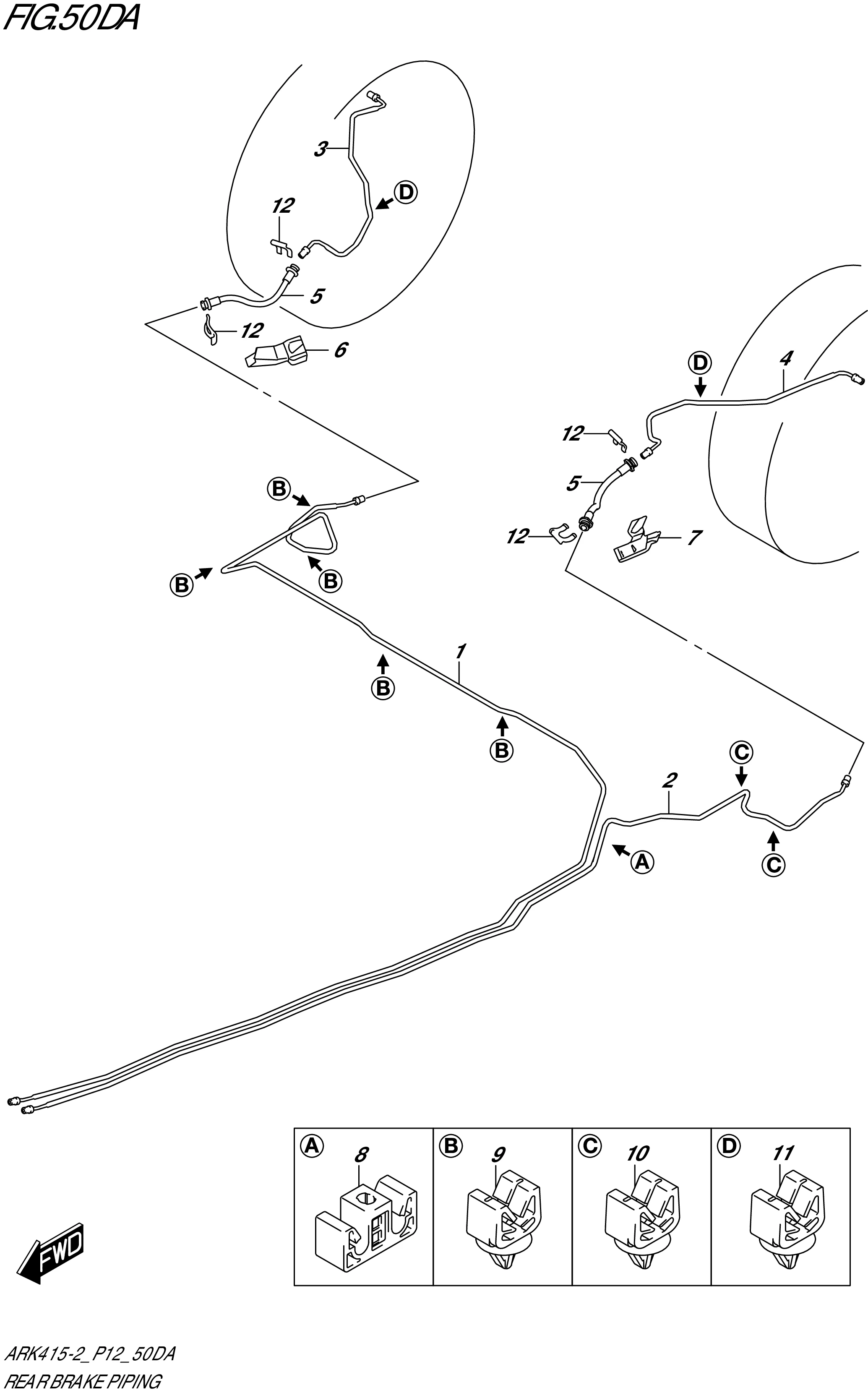

FIG- 50DA- REAR BRAKE PIPING

FIG- 50DA- REAR BRAKE PIPING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	51470-72R00-000	PIPE,JOINT TO RR BK HOSE,R	0	Rp131.500
2	51480-72R00-000	PIPE,JOINT TO RR BK HOSE,L	0	Rp93.500
3	51510-73R00-000	PIPE,RR BK HOSE TO RR W/C,R	0	Rp40.000
4	51520-73R00-000	PIPE,RR BK HOSE TO RR W/C,L	0	Rp42.000
5	51570-73R00-000	HOSE,RR BRAKE FLEXIBLE	0	Rp44.500
6	51711-52R00-000	COVER,BRAKE PIPE,R	0	Rp57.000
7	51712-52R00-000	COVER,BRAKE PIPE,L	0	Rp57.000
8	51761-77M30-000 SUB: 51761B77M30N000	CLAMP, BRAKE PIPE REAR FL	0	Rp6.500
9	51761-77M40-000 SUB: 51761B77M40N000	CLAMP, BRAKE PIPE	0	Rp6.500
10	51761-77M40-000 SUB: 51761B77M40N000	CLAMP, BRAKE PIPE	0	Rp6.500
11	51761-77M40-000 SUB: 51761B77M40N000	CLAMP, BRAKE PIPE	0	Rp6.500
12	09383M13004-000 SUB: 09383-13003-000	E RING	0	Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
