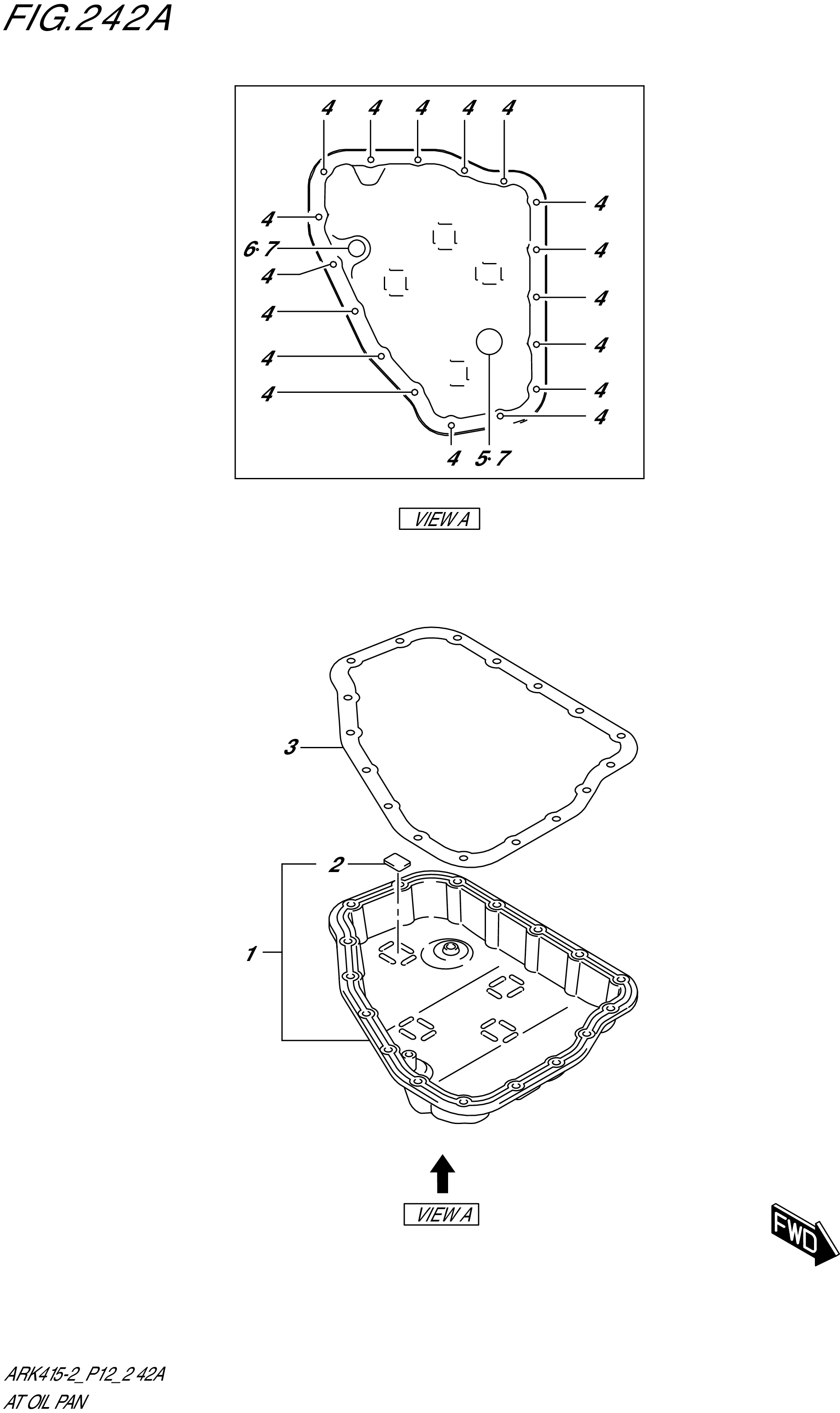

FIG. 242A- AT OIL PAN (4AT)

FIG. 242A- AT OIL PAN (4AT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24761-77MT0-000	PAN SET,T/M OIL	1	Rp1.209.500
2	DISCONTINUE SUB: 24745-59J00-000	.MAGNET,OIL CLEANER	4	-
3	24784-77M10-000	GASKET,T/M OIL PAN	1	Rp163.000
4	24882-79C10-000	BOLT,T/M OIL PAN (6X14)	17	Rp22.000
5	24823-79C10-000	PLUG,DRAIN	1	Rp31.000
6	24824-77M10-000	PLUG, T/M OIL CHECK	1	Rp42.500
7	24781-57B00-000	GASKET,DRAIN PLUG	2	Rp33.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
