V-Strom SX250

Preview Engine Transmission Electrical Suspension Body

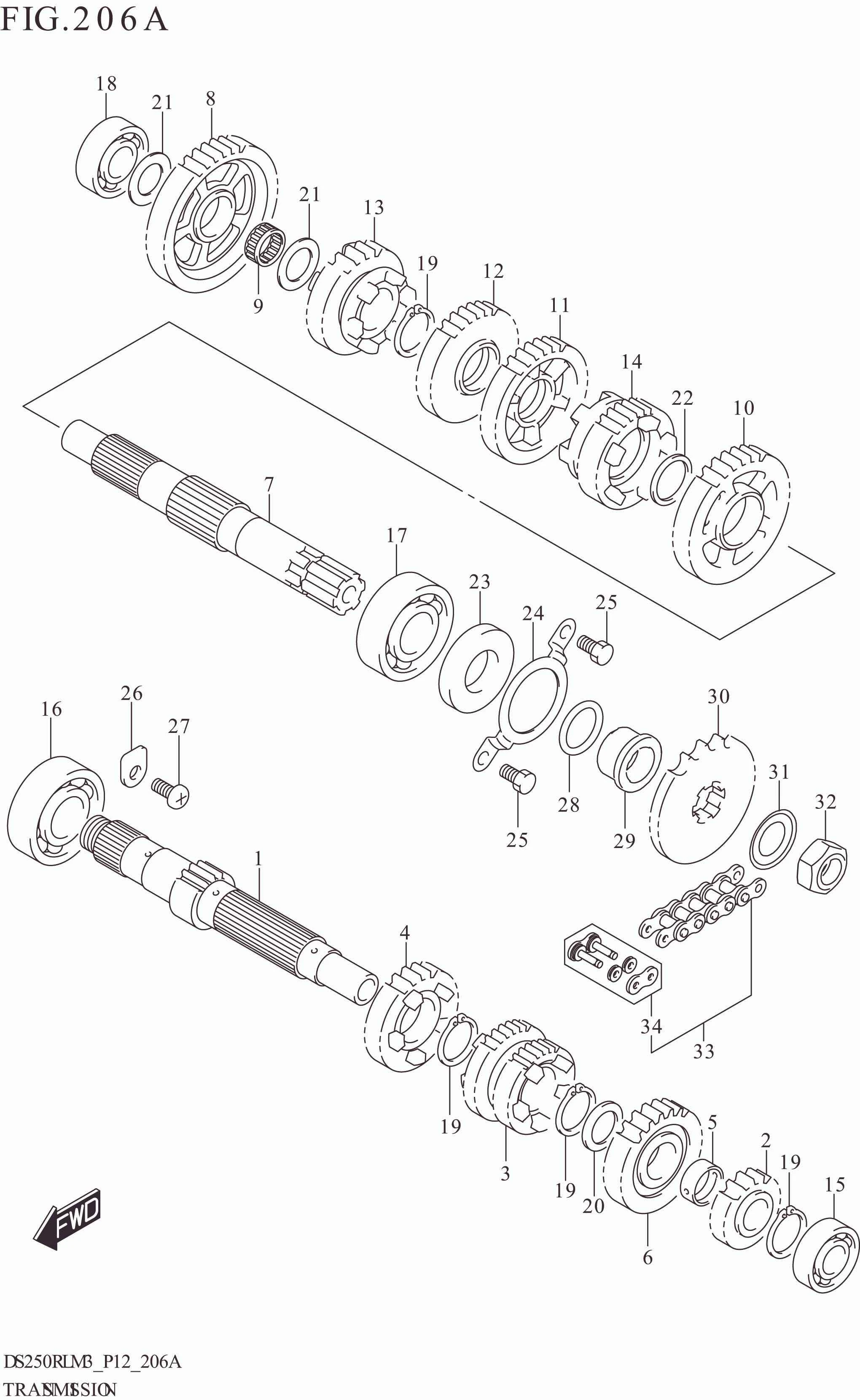

FIG. 206A TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs
1	24121-41KA0-000	SHAFT,COUNTER (NT:12)	1	Rp1.006.500
2	24221-41KA0-000	GEAR,2ND DRIVE (NT:16)	1	Rp295.500
3	24231-41KA0-000	GEAR,3RD & 4TH DRIVE (NT:18)	1	Rp601.500
4	24261-41KA0-000	GEAR,6TH DRIVE (NT:23)	1	Rp273.000
5	24252-41KA0-000	BUSH,5TH DRIVE GEAR	1	Rp44.000
6	24251-41KA0-000	GEAR,5TH DRIVE (NT:22)	1	Rp272.000
7	24130-41KA0-000	SHAFT,DRIVE	1	Rp520.500
8	24311-41KA0-000	GEAR,1ST DRIVEN (NT:30)	1	Rp437.500
9	09263-17060-000	BEARING (22X29X16.8)	1	Rp53.500
10	24321-41KA0-000	GEAR,2ND DRIVEN (NT:27)	1	Rp384.000
11	24331-41KA0-000	GEAR,3RD DRIVEN (NT:25)	1	Rp345.500
12	24341-41KA0-000	GEAR,4TH DRIVEN (NT:20)	1	Rp270.500
13	24361-41KA0-000	GEAR,6TH DRIVEN (NT:19)	1	Rp259.500
14	24351-41KA0-000	GEAR,5TH DRIVEN (NT:21)	1	Rp310.000
15	09262-17055-000	BEARING (17X14X12)	1	Rp68.000
16	08112-63040-000	BEARING	1	Rp97.000
17	09262-25189-000	BEARING (25X52X15)	1	Rp131.500
18	08110-62030-000	BEARING	1	Rp33.500
19	DISCONTINUE SUB: 09380-22018-000	CIRCLIP	4	-
20	09160-22088-000	WASHER (22X30X1)	1	Rp10.500
21	09160-17063-000	WASHER (17X26X1)	2	Rp11.500
22	DISCONTINUE SUB: 09380-25016-000	CIRCLIP	1	-
23	09283-34016-000	SEAL,OIL (34X46X8)	1	Rp63.500
24	24751-41K00-000	RETAINER,DRIVE SHAFT OIL SEAL	1	Rp9.000
25	01500-0610A-000	BOLT	2	Rp6.500
26	24741-20A10-000	RETAINER,SHIFT CAM,R BEARING	2	Rp3.500
27	02112-0612A-000	SCREW	2	Rp3.500
28	09280-24015-000	O-RING (D:2.5,ID:23.8)	1	Rp8.500
29	27531-41K00-000	SPACER,ENGINE SPROCKET	1	Rp63.500
30	27511-41K00-000	SPROCKET,ENGINE (NT:13)	1	Rp137.500
31	09167-25019-000	WASHER (25.3X41.6X1.0)	1	Rp13.500
32	09140-20022-000	NUT	1	Rp222.500
33	27600-41K00-114	CHAIN ASSY,DRIVE (GREEN)	1	Rp908.500
34	27620-41K00-000	.JOINT SET,CHAIN	1	Rp228.500
