V-Strom SX250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A GASKETFIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 122A STARTER CLUTCHFIG. 124A CRANK BALANCERFIG. 126A CAMSHAFT OR VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 178A OIL COOLERFIG. 201A CLUTCHFIG. 206A TRANSMISSIONFIG. 212A GEAR SHIFTING

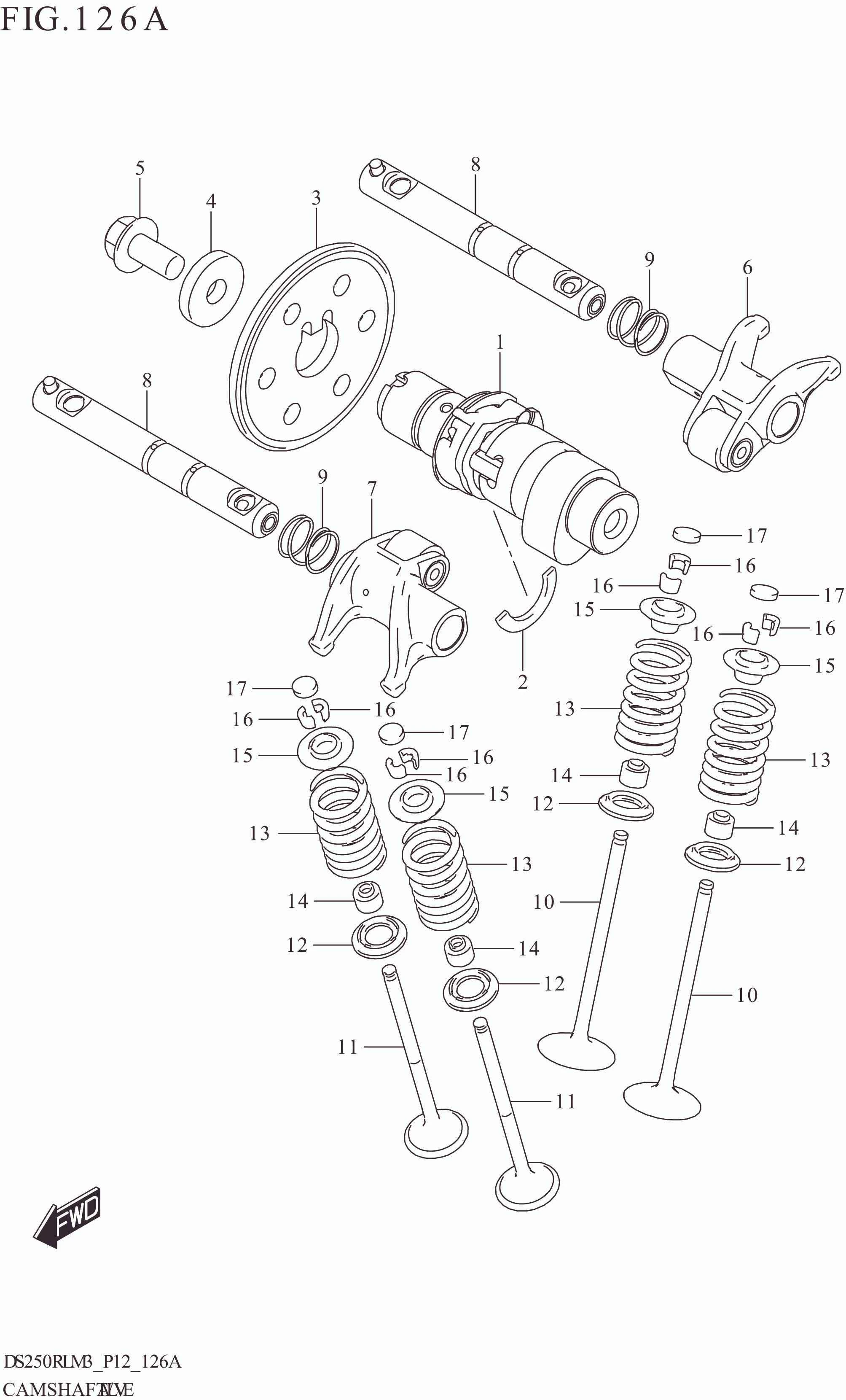

FIG. 126A CAMSHAFT OR VALVE

FIG. 126A CAMSHAFT OR VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-41K00-000 CAMSHAFT ASSY 1 Rp728.000
2 09390-22002-000 C-RING 1 Rp11.500
3 12741-41K00-000 SPROCKET,CAMSHAFT (NT:34) 1 Rp55.000
4 09160-08176-000 WASHER (8X23X4) 1 Rp16.000
5 12742-41K00-000 BOLT,SPROCKET 1 Rp29.000
6 12841-41K00-000 ARM,VALVE ROCKER INTAKE 1 Rp213.000
7 12851-41K00-000 ARM,VALVE ROCKER EXHAUST 1 Rp213.000
8 12860-41K00-000 SHAFT,VALVE ROCKER ARM 2 Rp47.500
9 12867-41K00-000 SPRING,VALVE ROCKER ARM 2 Rp5.000
10 12911-41K00-000 VALVE,INTAKE 2 Rp66.000
11 12912-41K00-000 VALVE,EXHAUST 2 Rp107.000
12 12933-09G00-000 SEAT,VALVE SPRING 4 Rp9.000
13 12921-41K00-000 SPRING,VALVE 4 Rp30.000
14 09289-05019-000 SEAL,OIL (4X10X8) 4 Rp39.000
15 12931-41K00-000 RETAINER,VALVE SPRING 4 Rp36.500
16 12932-09G00-000
SUB: 12932-09G10-000		 COTTER VALVE (NT:23) 8 Rp4.500
17-24 12892-35G00-208 SHIM,TAPPET (T:2.08) 4 Rp35.500
17-33 12892-41C00-230 SHIM,TAPPET (T:2.30) 4 Rp65.000
17-34 12892-41C00-232 SHIM,TAPPET (T:2.32) 4 Rp53.500
17-35 12892-41C00-235 SHIM,TAPPET (T:2.35) 4 Rp65.000
17-36 12892-41C00-238 SHIM,TAPPET (T:2.38) 4 Rp53.500
17-37 12892-41C00-240 SHIM,TAPPET (T:2.40) 4 Rp65.000
17-38 12892-41C00-242 SHIM,TAPPET (T:2.42) 4 Rp53.500
17-32 12892-35G00-228 SHIM,TAPPET (T:2.28) 4 Rp35.500
17-39 12892-41C00-245 SHIM,TAPPET (T:2.45) 4 Rp66.000
17-40 12892-41C00-248 SHIM,TAPPET (T:2.48) 4 Rp53.500
17-41 12892-41C00-250 SHIM,TAPPET (T:2.50) 4 Rp66.000
17-42 12892-41C00-252 SHIM,TAPPET (T:2.52) 4 Rp53.500
17-43 12892-41C00-255 SHIM,TAPPET (T:2.55) 4 Rp66.000
17-44 12892-41C00-258 SHIM,TAPPET (T:2.58) 4 Rp53.500
17-45 12892-41C00-260 SHIM,TAPPET (T:2.60) 4 Rp66.000
17-46 12892-41C00-262 SHIM,TAPPET (T:2.62) 4 Rp53.500
17-47 12892-41C00-265 SHIM,TAPPET (T:2.65) 4 Rp66.000
17-48 12892-41C00-268 SHIM,TAPPET (T:2.68) 4 Rp53.500
17-49 12892-41C00-270 SHIM,TAPPET (T:2.70) 4 Rp66.000
17-50 12892-41C00-272 SHIM,TAPPET (T:2.72) 4 Rp53.500
17-51 12892-41C00-275 SHIM,TAPPET (T:2.75) 4 Rp66.000
17-52 12892-41C00-278 SHIM,TAPPET (T:2.78) 4 Rp53.500
17-53 12892-41C00-280 SHIM,TAPPET (T:2.80) 4 Rp66.000
17-54 12892-41C00-282 SHIM,TAPPET (T:2.82) 4 Rp53.500
17-55 12892-41C00-285 SHIM,TAPPET (T:2.85) 4 Rp66.000
17-56 12892-41C00-288 SHIM,TAPPET (T:2.88) 4 Rp53.500
17-57 12892-41C00-290 SHIM,TAPPET (T:2.90) 4 Rp66.000
17-58 12892-41C00-292 SHIM,TAPPET (T:2.92) 4 Rp53.500
17-59 12892-41C00-295 SHIM,TAPPET (T:2.95) 4 Rp66.000
17-60 12892-41C00-298 SHIM,TAPPET (T:2.98) 4 Rp53.500
17-61 12892-41C00-300 SHIM,TAPPET (T:3.00) 4 Rp65.000
17-30 12892-35G00-222 SHIM,TAPPET (T:2.22) 4 Rp35.500
17-1 12892-35G00-150 SHIM,TAPPET (T:1.50) 4 Rp30.500
17-2 12892-35G00-152 SHIM,TAPPET (T:1.52) 4 Rp36.500
17-3 12892-35G00-155 SHIM,TAPPET (T:1.55) 4 Rp36.500
17-4 12892-35G00-158 SHIM,TAPPET (T:1.58) 4 Rp36.500
17-5 12892-35G00-160 SHIM,TAPPET (T:1.60) 4 Rp36.500
17-6 12892-35G00-162 SHIM,TAPPET (T:1.62) 4 Rp36.500
17-7 12892-35G00-165 SHIM,TAPPET (T:1.65) 4 Rp36.500
17-8 12892-35G00-168 SHIM,TAPPET (T:1.68) 4 Rp36.500
17-9 12892-35G00-170 SHIM,TAPPET (T:1.70) 4 Rp36.500
17-10 12892-35G00-172 SHIM,TAPPET (T:1.72) 4 Rp36.500
17-11 12892-35G00-175 SHIM,TAPPET (T:1.75) 4 Rp36.500
17-12 12892-35G00-178 SHIM,TAPPET (T:1.78) 4 Rp36.500
17-13 12892-35G00-180 SHIM,TAPPET (T:1.80) 4 Rp36.500
17-14 12892-35G00-182 SHIM,TAPPET (T:1.82) 4 Rp36.500
17-16 12892-35G00-188 SHIM,TAPPET (T:1.88) 4 Rp36.500
17-31 12892-35G00-225 SHIM,TAPPET (T:2.25) 4 Rp35.500
17-29 12892-35G00-220 SHIM,TAPPET (T:2.20) 4 Rp35.500
17-28 12892-35G00-218 SHIM,TAPPET (T:2.18) 4 Rp35.500
17-27 12892-35G00-215 SHIM,TAPPET (T:2.15) 4 Rp35.500
17-26 12892-35G00-212 SHIM,TAPPET (T:2.12) 4 Rp35.500
17-25 12892-35G00-210 SHIM,TAPPET (T:2.10) 4 Rp35.500
17-23 12892-35G00-205 SHIM,TAPPET (T:2.05) 4 Rp35.500
17-22 12892-35G00-202 SHIM,TAPPET (T:2.02) 4 Rp35.500
17-21 12892-35G00-200 SHIM,TAPPET (T:2.00) 4 Rp35.500
17-20 12892-35G00-198 SHIM,TAPPET (T:1.98) 4 Rp36.500
17-19 12892-35G00-195 SHIM,TAPPET (T:1.95) 4 Rp35.500
17-18 12892-35G00-192 SHIM,TAPPET (T:1.92) 4 Rp36.500
17-17 12892-35G00-190 SHIM,TAPPET (T:1.90) 4 Rp35.500
17-15 12892-35G00-185 SHIM,TAPPET (T:1.85) 4 Rp36.500
18 12800-35820-000 SHIM SET,TAPPET (5PCS. EACH) 1 Rp9.829.500
19 99000-69471-000 .CASE,TAPPET SHIM 2 Rp1.448.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
