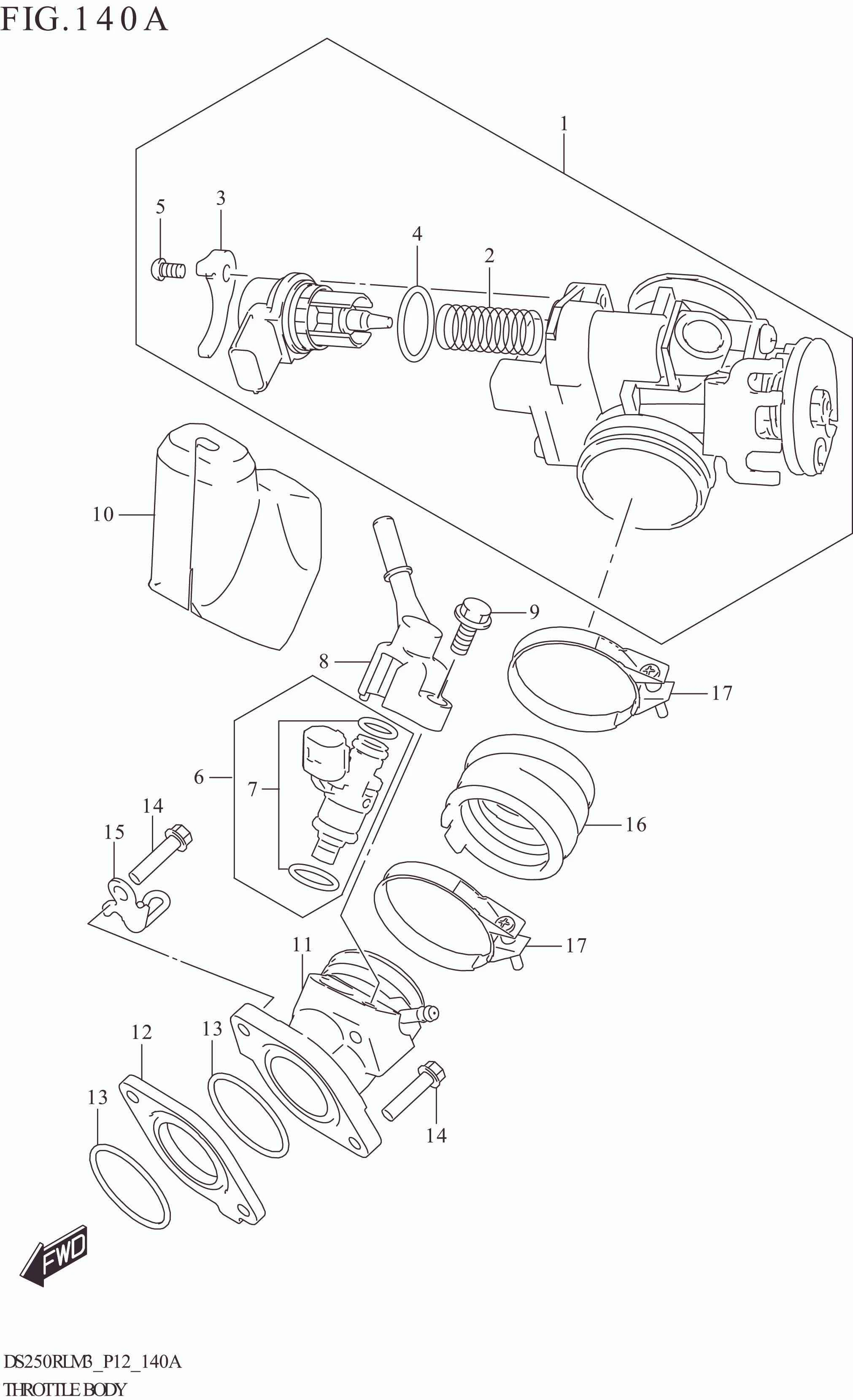

FIG. 140A THROTTLE BODY

FIG. 140A THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-41K00-000 BODY ASSY,THROTTLE 1 Rp3.051.500
2 13417-09JA0-000 .SPRING 1 Rp9.500
3 13421-42J00-000 .PLATE 1 Rp22.500
4 13438-09JA0-000 .O-RING 1 Rp27.500
5 13602-06128-000 .SCREW 1 Rp9.000
6 15710-41K00-000 INJECTOR,ASSY FUEL 1 Rp788.500
7 15720-41810-000 .O-RING&GROMMET SET 1 Rp526.000
8 15830-41K00-000 JOINT,FUEL HOSE 1 Rp55.000
9 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 1 Rp6.500
10 15719-41K00-000 COVER,FUEL INJECTOR 1 Rp14.500
11 13110-41K00-000 PIPE,INTAKE NO.1 1 Rp173.500
12 13128-41K00-000 INSULATOR,INTAKE PIPE 1 Rp10.000
13 09280-40021-000 O-RING (D:2.4,ID:39.7) 2 Rp15.000
14 01547-0625A-000 BOLT 2 Rp6.500
15 18570-41K00-000 GUIDE,LEAD WIRE 1 Rp21.500
16 13121-41K00-000 PIPE,INTAKE NO.2 1 Rp26.500
17 13170-41K00-000 CLAMP,INTAKE PIPE 2 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
