Preview Engine Transmission Electrical Suspension Body

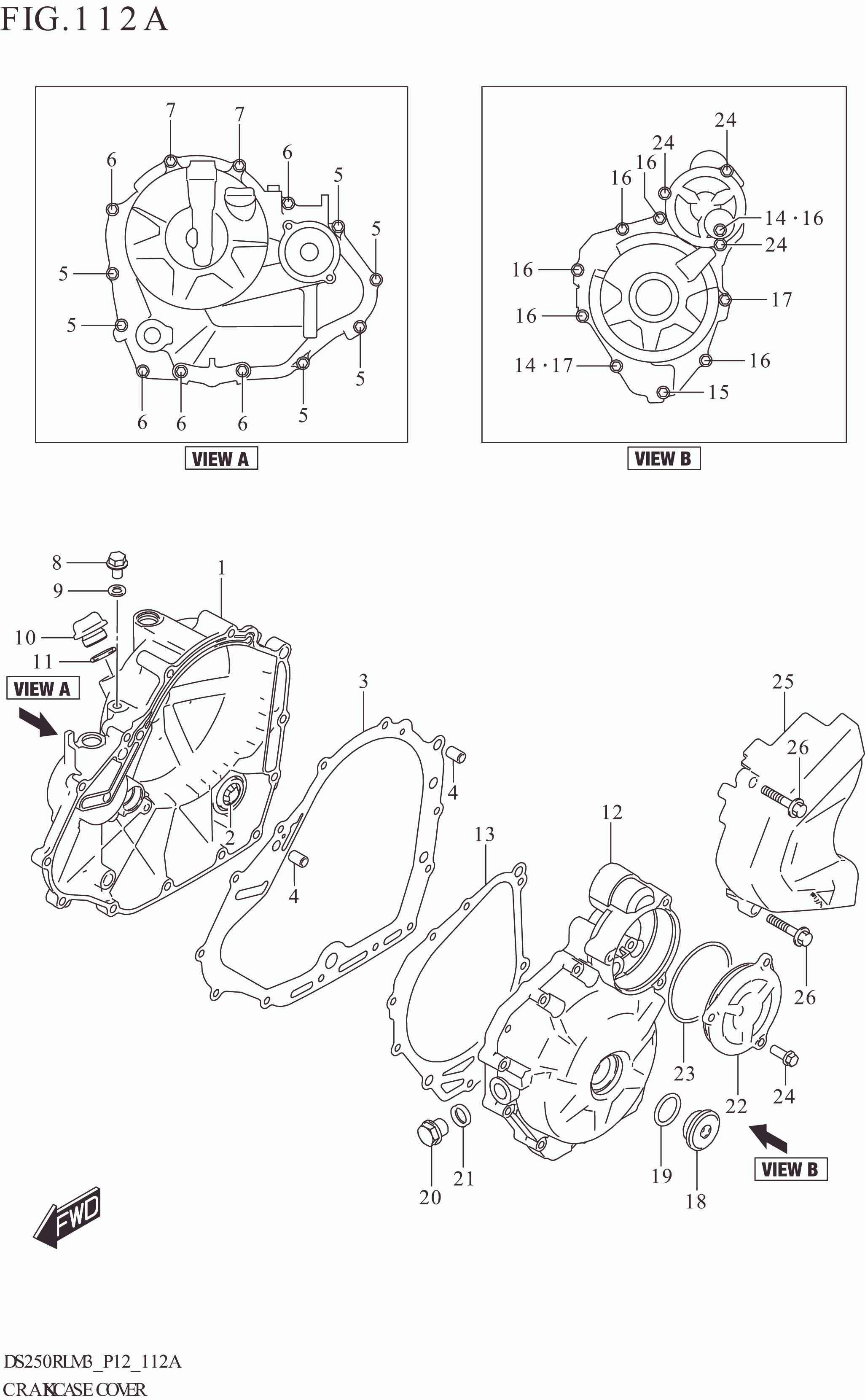

No	No. Part	Description	Qty	Price Per Pcs
1	11340-41K00-000	COVER,CLUTCH	1	Rp854.500
2	11971-45010-000	.LENS,OIL LEVEL CHECK	1	Rp33.500
3	11482-41K00-000	GASKET,CLUTCH COVER	1	Rp57.500
4	04211-09149-000	PIN (8.5X18X2.3)	2	Rp3.000
5	01547-0625A-000	BOLT	6	Rp6.500
6	01547-0635A-000	BOLT	5	Rp6.500
7	01547-0645A-000	BOLT	2	Rp7.000
8	01550-0812B-000	BOLT	1	Rp5.500
9	09168-08015-000	GASKET (8.2X14X1.6)	1	Rp2.000
10	11971-30H00-000	PLUG,OIL FILLER	1	Rp43.000
11	09280-17003-000	O-RING (D:3.1,ID:16.8)	1	Rp2.000
12	11351-41K00-000	COVER,MAGNETO	1	Rp819.500
13	11483-41K00-000	GASKET,MAGNETO COVER	1	Rp33.500
14	04211-09149-000	PIN (8.5X18X2.3)	2	Rp3.000
15	01547-0625A-000	BOLT	1	Rp6.500
16	01547-0635A-000	BOLT	6	Rp6.500
17	01547-0645A-000	BOLT	2	Rp7.000
18	09259-26035-000	PLUG	1	Rp67.500
19	09280-22008-000	O-RING (D:3.1,ID:22.7)	1	Rp3.500
20	09247-14054-000	PLUG (14X12)	1	Rp31.000
21	09168-14002-000	GASKET (13.8X18.8X4.8)	1	Rp14.000
22	11352-41K00-000	COVER,STARTER IDLE GEAR	1	Rp87.500
23	11353-41K00-000	O-RING,STARTER GEAR COVER	1	Rp9.000
24	01547-0616A-000	BOLT	3	Rp6.500
25	11360-41K00-000	COVER,ENG SPROCKET	1	Rp67.500
26	01547-0625A-000	BOLT	2	Rp6.500
