V-Strom SX250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A GASKETFIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 122A STARTER CLUTCHFIG. 124A CRANK BALANCERFIG. 126A CAMSHAFT OR VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 178A OIL COOLERFIG. 201A CLUTCHFIG. 206A TRANSMISSIONFIG. 212A GEAR SHIFTING

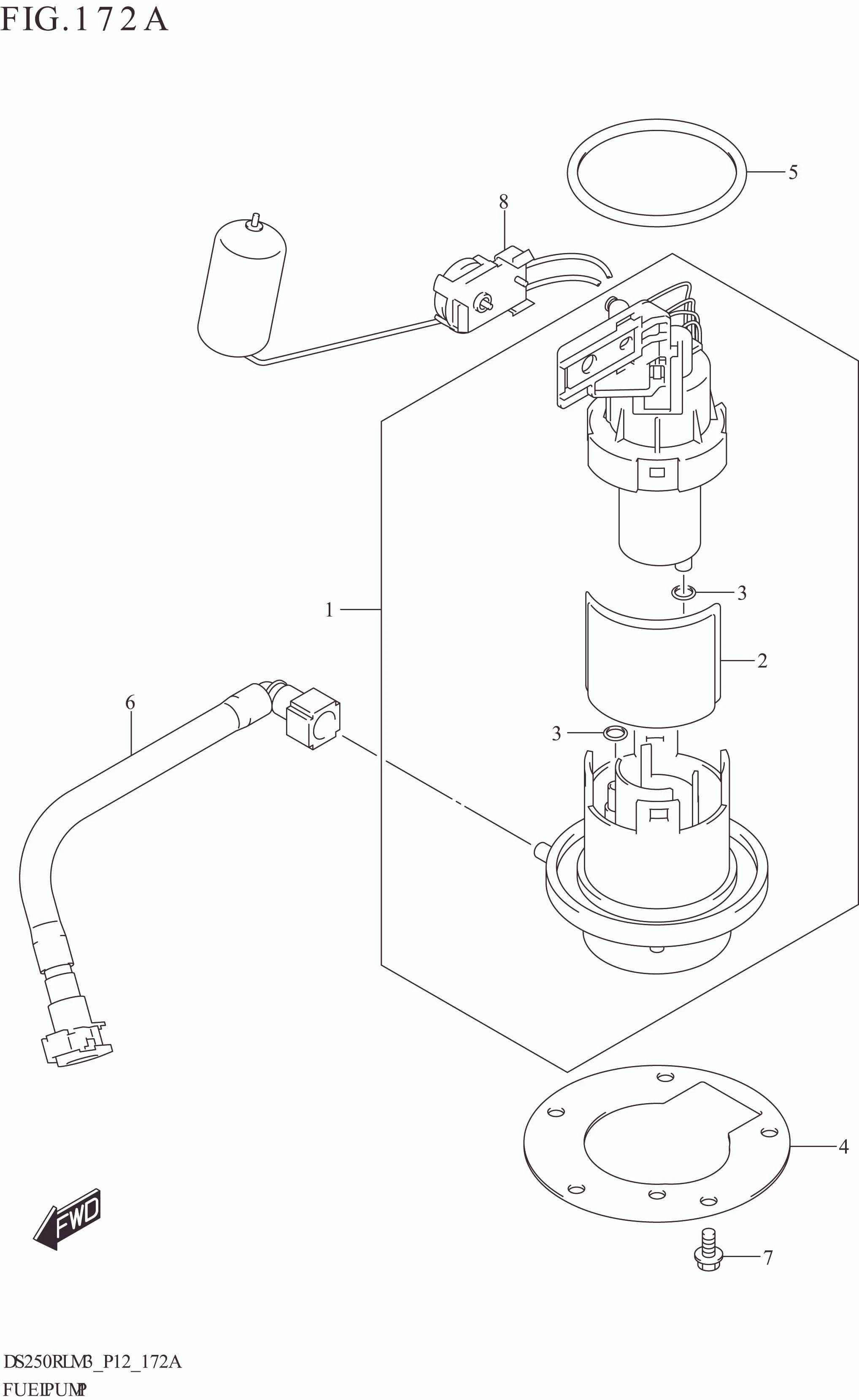

FIG. 172A FUEL PUMP

FIG. 172A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-41K00-000 PUMP ASSY,FUEL 1 Rp2.125.000
2 15420-34JB0-000 .FILTER 1 Rp58.500
3 15424-09JB0-000 .O-RING 2 Rp10.000
4 15121-34JB1-000 PLATE,FUEL PUMP 1 Rp23.000
5 15201-34JB0-000 O-RING,FUEL PUMP 1 Rp136.500
6 15810-41K00-000 HOSE,FUEL 1 Rp327.500
7 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 5 Rp3.000
8 34810-20L00-000 GAUGE ASSY,FUEL LEVEL SENDER 1 Rp287.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
