Preview Engine Transmission Electrical Suspension Body

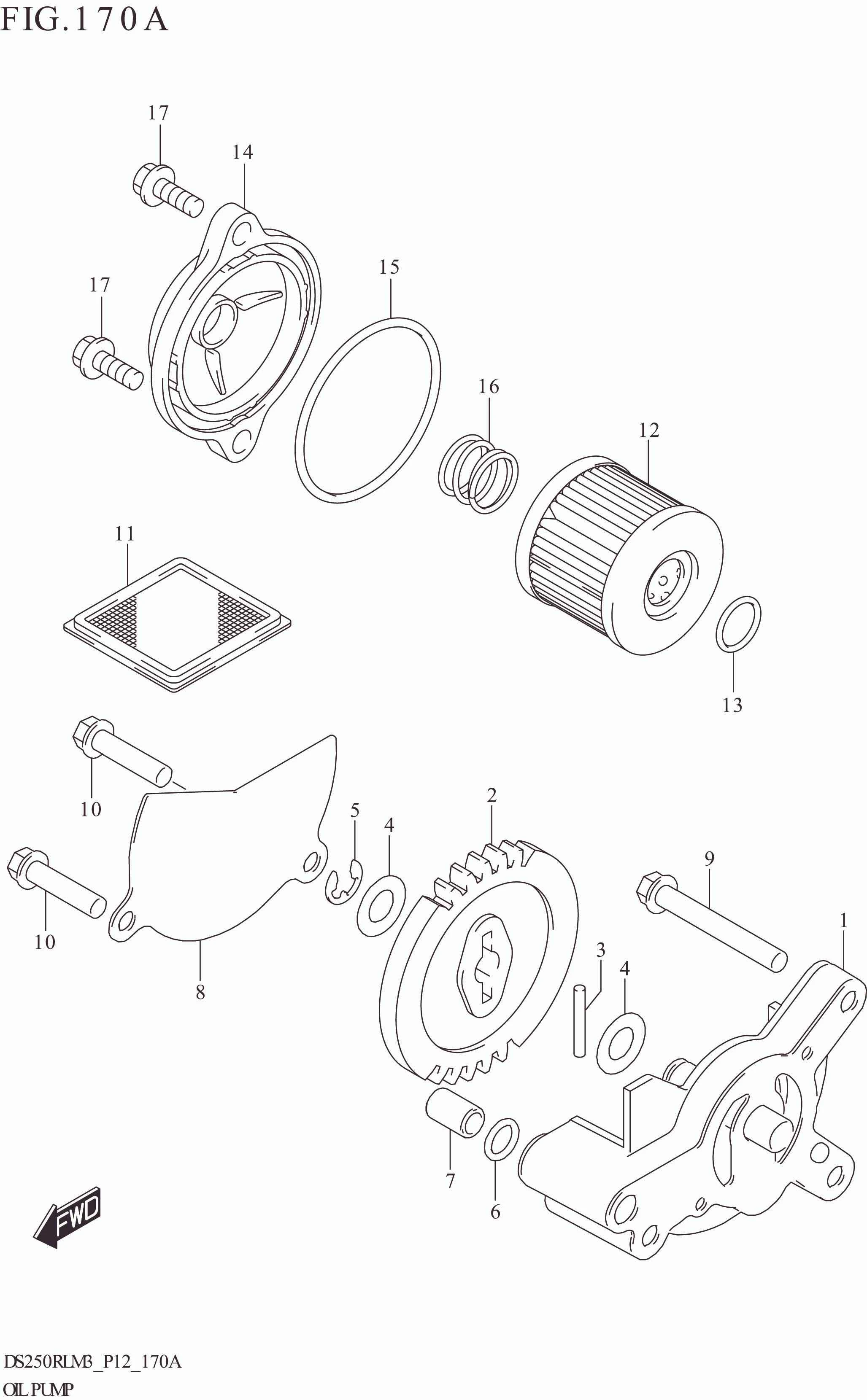

No	No. Part	Description	Qty	Price Per Pcs
1	16400-41K00-000	PUMP ASSY,ENGINE OIL	1	Rp202.500
2	16331-41K11-000	GEAR,OIL PUMP DRIVEN (NT:35)	1	Rp269.500
3	16421-41K00-000	PIN,OIL PUMP DRIVEN GEAR (4X29.8)	1	Rp5.500
4	DISCONTINUE SUB: 09181-10158-000	SHIM (10X18X0.5)	2	-
5	DISCONTINUE SUB: 08331-31109-000	CIRCLIP	1	-
6	09280-09013-000	O-RING (D:1.9,ID:8.6)	1	Rp14.500
7	04211-09149-000	PIN (8.5X18X2.3)	1	Rp3.000
8	16413-41K00-000	COVER,OIL PUMP	1	Rp9.000
9	01547-0625A-000	BOLT	1	Rp6.500
10	01547-0645A-000	BOLT	2	Rp7.000
11	16520-09440-000	STRAINER,ENGINE OIL	1	Rp33.500
12	16510-33G10-000	FILTER,ENGINE OIL	1	Rp40.000
13	09280-13010-000	O-RING (D:1.9,ID:12.5)	1	Rp3.000
14	16512-23J20-000	CAP,OIL FILTER	1	Rp121.000
15	09280-54001-000	O-RING (D:2.4,ID:52.6)	1	Rp3.000
16	16519-09J10-000	SPRING,OIL FILTER	1	Rp8.500
17	01547-0620B-000 SUB: 01547-0620A-000	BOLT	2	Rp6.500
