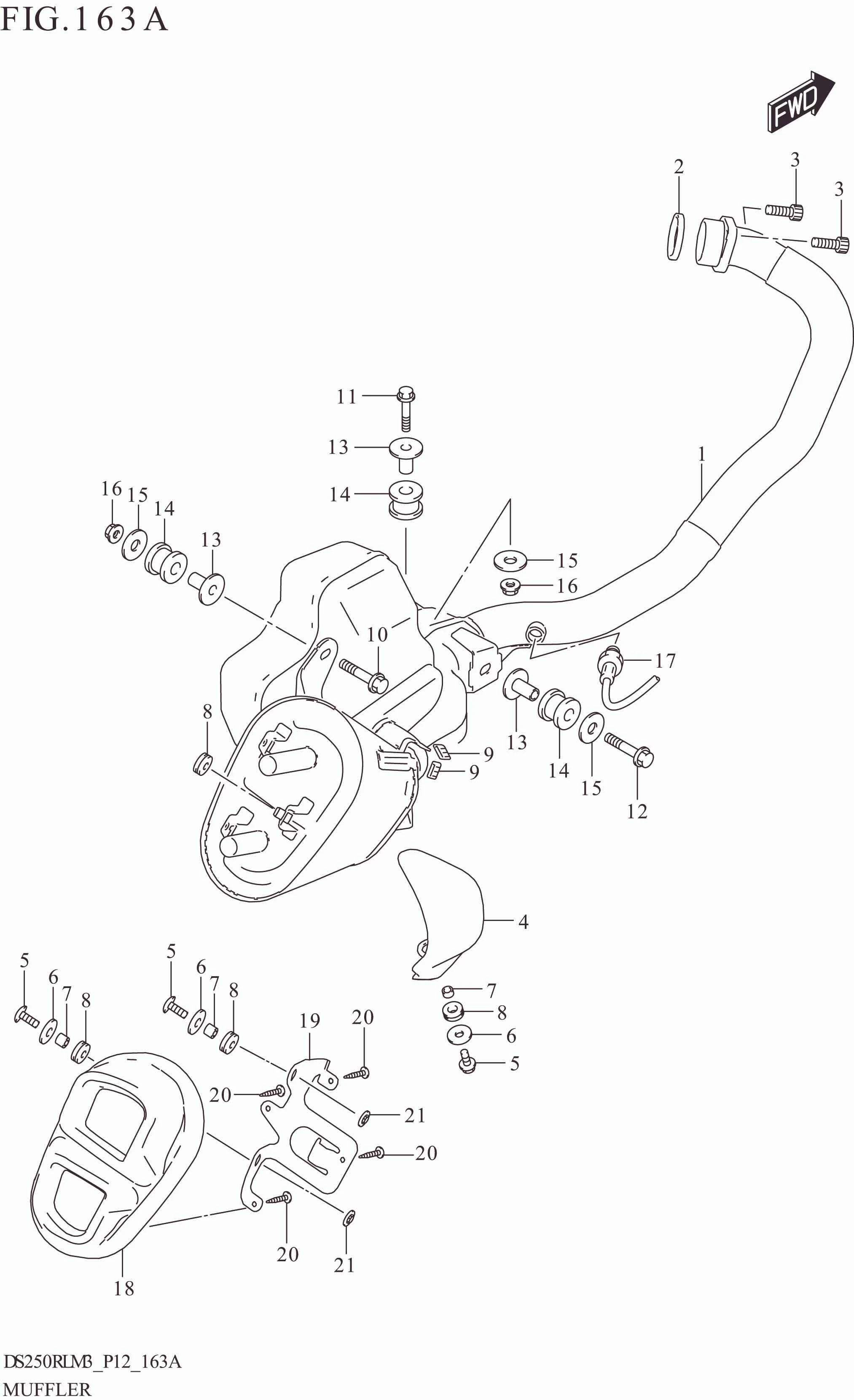

FIG. 163A MUFFLER

FIG. 163A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14310-41K01-000 BODY,MUFFLER 1 Rp7.880.500
2 14181-14D10-000 GASKET,EXHAUST PIPE (NA) 1 Rp30.500
3 07130-0825A-000 BOLT 2 Rp4.000
4 14780-20L00-000 COVER,MUFFLER 1 Rp167.000
5 09139-06194-000 SCREW (6X16) 3 Rp19.500
6 09160-06156-000 WASHER (6.5X18X1.6) 3 Rp20.500
7 09180-06256-000 SPACER (6.5X9X5.7) 3 Rp3.000
8 09320-08504-000 CUSHION (8.4X18X6) 4 Rp9.500
9 14795-10FA0-000 GROMMET 2 Rp5.500
10 01550-0845B-000 BOLT 1 Rp6.500
11 01550-0845B-000 BOLT 1 Rp6.500
12 09103-08558-000 BOLT (8X40) 1 Rp21.500
13 09180-10164-000 SPACER (10.5X30X25.3) 3 Rp22.000
14 09320-14027-000 CUSHION (14X30X24) 3 Rp33.000
15 09160-08174-000 WASHER (8.5X30X1.6) 3 Rp92.500
16 08319-3108A-000 NUT 2 Rp4.000
17 18213-41K01-000 SENSOR,OXYGEN 1 Rp1.233.500
18 14791-20L00-000 COVER,MUF RR 1 Rp210.500
19 14761-20L00-000 STAY,MUF RR COV 1 Rp77.000
20 03241-0412B-000 SCREW 4 Rp15.500
21 09148-05083-000 NUT 2 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
