  3. V-Strom SX250
  4. Engine
  5. FIG. 120A CRANKSHAFT

V-Strom SX250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A GASKETFIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 122A STARTER CLUTCHFIG. 124A CRANK BALANCERFIG. 126A CAMSHAFT OR VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 178A OIL COOLERFIG. 201A CLUTCHFIG. 206A TRANSMISSIONFIG. 212A GEAR SHIFTING

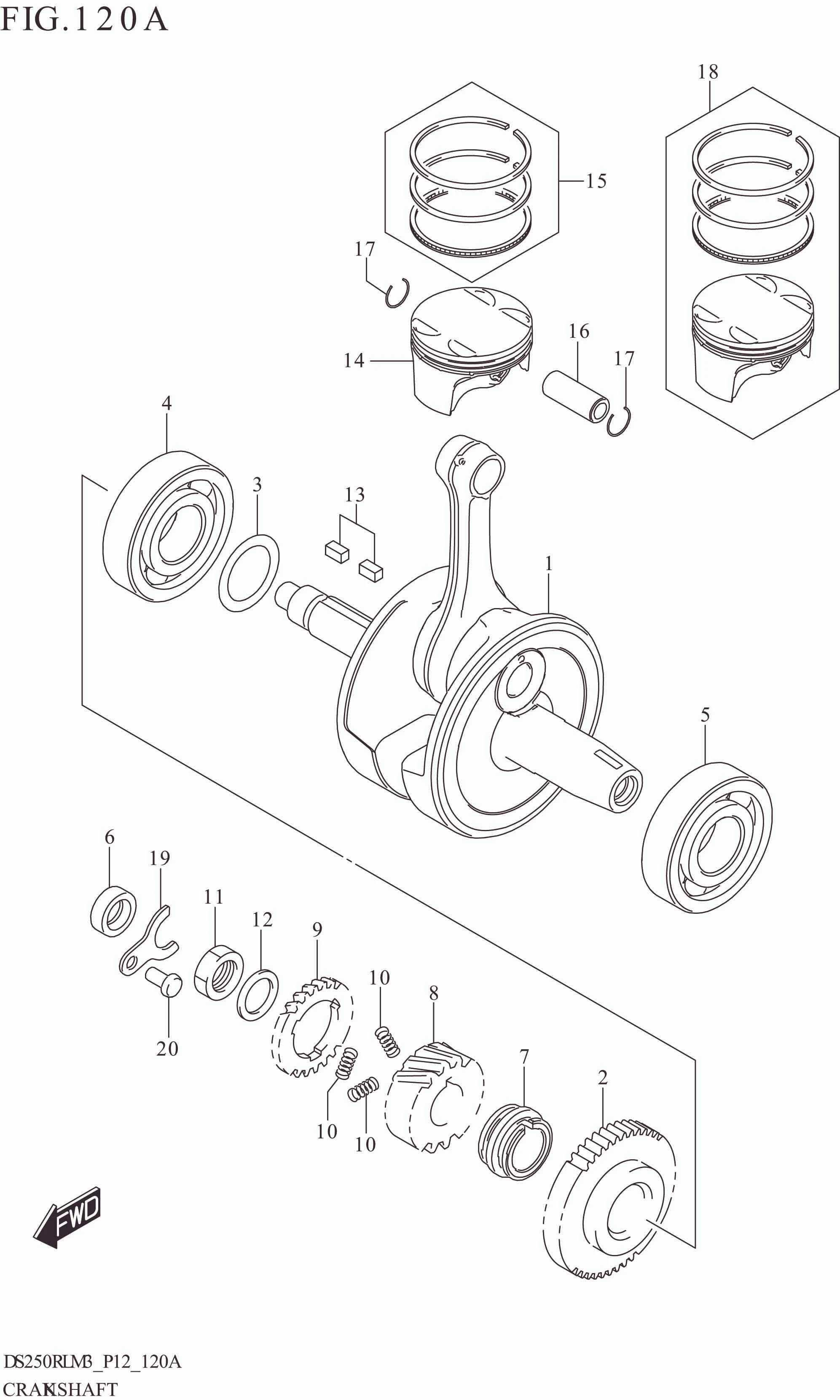

FIG. 120A CRANKSHAFT

FIG. 120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12200-41K00-000 CRANKSHAFT ASSY 1 Rp1.893.000
2 12661-41K00-000 GEAR,CRANK BALANCER DRIVE (NT:40) 1 Rp392.000
3-1 12228-12K00-0A0
SUB: 09181-28187-000		 SHIM (T:0.6) 1 Rp10.500
3-2 12228-12K00-0B0
SUB: 09181-28021-000		 SHIM (T:0.65) 1 Rp10.500
3-3 12228-12K00-0C0
SUB: 09181-28188-000		 SHIM (T:0.7) 1 Rp10.500
3-4 12228-12K00-0D0
SUB: 09181-28189-000		 SHIM (T:0.75) 1 Rp10.500
3-5 12228-12K00-0E0
SUB: 09181-28190-000		 SHIM (T:0.8) 1 Rp10.500
3-6 12228-12K00-0F0
SUB: 09181-28191-000		 SHIM (T:0.85) 1 Rp10.500
3-7 12228-12K00-0G0
SUB: 09181-28192-000		 SHIM (T:0.90) 1 Rp10.500
3-8 12228-12K00-0H0
SUB: 09181-28193-000		 SHIM (T:0.95) 1 Rp10.500
3-9 12228-12K00-0J0
SUB: 09181-28194-000		 SHIM (T:1.00) 1 Rp10.500
3-10 12228-12K00-0K0
SUB: 09181-28197-000		 SHIM (T:1.05) 1 Rp10.500
3-11 12228-12K00-0L0
SUB: 09181-28200-000		 SHIM (T:1.10) 1 Rp10.500
3-12 12228-12K00-0M0
SUB: 09181-28202-000		 SHIM (T:1.15) 1 Rp10.500
3-13 12228-12K00-0N0
SUB: 09181-28204-000		 SHIM (T:1.20) 1 Rp10.500
3-14 12228-12K00-0P0
SUB: 09181-28207-000		 SHIM (T:1.25) 1 Rp10.500
3-15 12228-12K00-0R0
SUB: 09181-28209-000		 SHIM (T:1.30) 1 Rp10.500
4 09262-28060-000 BEARING (28X68X18) 1 Rp235.500
5 09262-28061-000 BEARING (28X68X18) 1 Rp231.000
6 09282-12013-000 SEAL,OIL (12X21X7) 1 Rp19.500
7 12731-41K00-000 SPROCKET,CAM CHAIN DRIVE (NT:17) 1 Rp68.000
8 21111-41KA0-000 GEAR,PRIMARY DRIVE (NT:23) 1 Rp339.500
9 21112-41KA0-000 GEAR,PRIMARY DRIVE SCISSORS (NT:23) 1 Rp293.000
10 21114-41K00-000 SPRING,PRI DRIVE GEAR 3 Rp13.500
11 09140-18004-000 NUT (M18) 1 Rp24.500
12 09160-18044-000 WASHER (18X32X2) 1 Rp28.000
13 09421-05011-000 KEY 1 Rp14.500
14 12111-41K10-0F0 PISTON 1 Rp398.500
15 12140-41K00-000 RING SET,PISTON 1 Rp140.500
16 12151-41K00-000 PIN,PISTON 1 Rp52.500
17 09381-17005-000 CIRCLIP (OD:19.8) 2 Rp9.000
18 12100-41K10-050 PISTON SET (OS:0.5) 1 Rp428.500
19 12541-41K10-000 RETAINER,CRANKSHAFT OIL SEAL,R 1 Rp8.000
20 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
