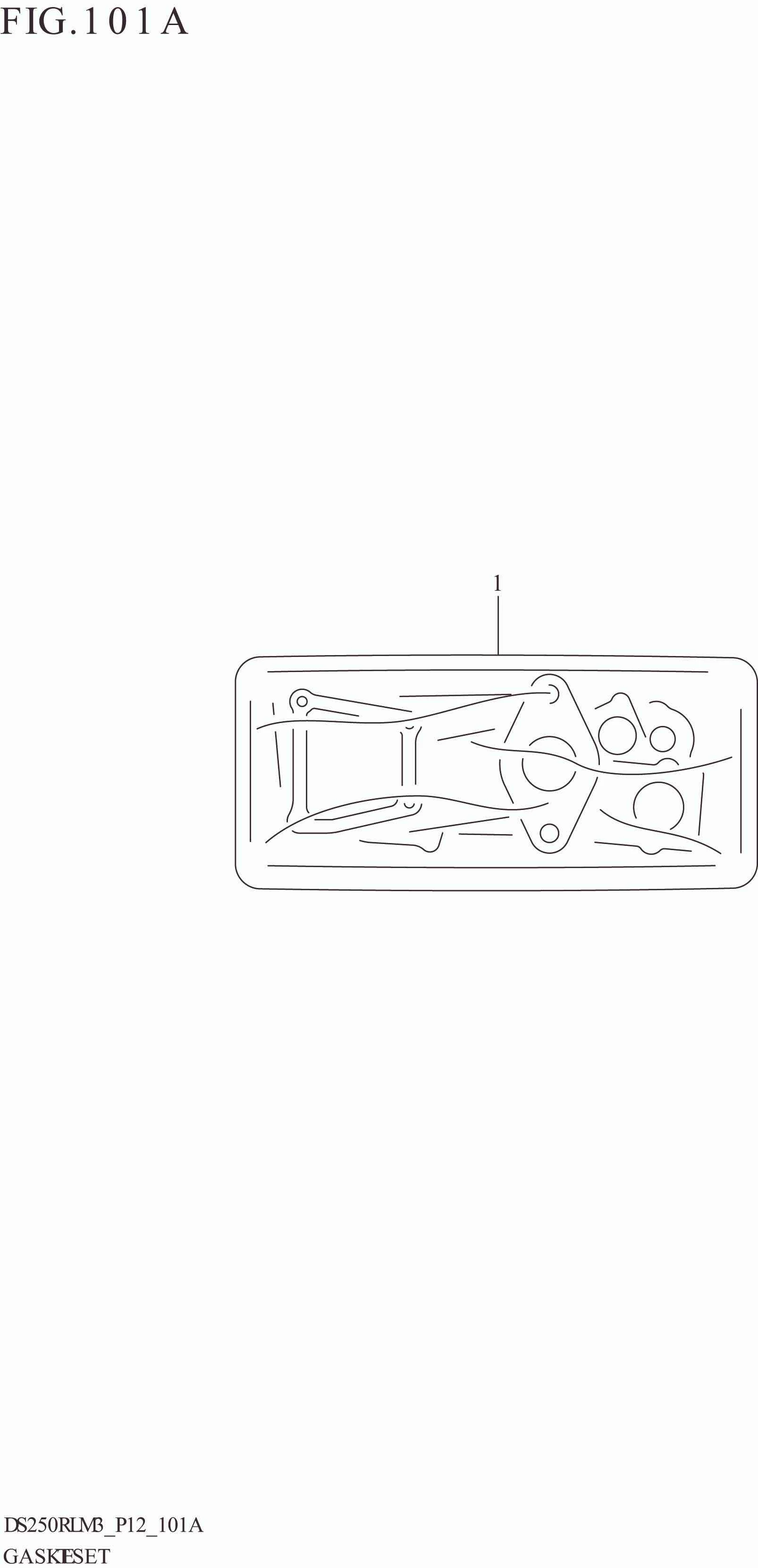

FIG. 101A GASKET

FIG. 101A GASKET
No No. Part Description Qty Price Per Pcs Remarks
1 11402-41840-000 GASKET SET 1 Rp288.000
2 11141-41K00-000 .GASKET,CYLINDER HEAD 1 Rp131.000
3 11173-41K00-000 .GASKET,CYL HEAD COVER 1 Rp23.500
4 11241-41K00-000 .GASKET,CYLINDER 1 Rp47.000
5 11353-41K00-000 .O-RING,STARTER GEAR COVER 1 Rp9.000
6 11482-41K00-000 .GASKET,CLUTCH COVER 1 Rp57.500
7 11483-41K00-000 .GASKET,MAGNETO COVER 1 Rp33.500
8 12837-24A30-000 .GASKET,TENSIONER ADJUSTER 1 Rp10.000
9 14181-14D10-000 .GASKET,EXHAUST PIPE (NA) 1 Rp30.500
10 09280-26005-000 .O-RING (D:2.4,ID:26.2) 1 Rp3.000
11 09280-54001-000 .O-RING (D:2.4,ID:52.6) 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
