V-Strom SX250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A GASKETFIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 122A STARTER CLUTCHFIG. 124A CRANK BALANCERFIG. 126A CAMSHAFT OR VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 178A OIL COOLERFIG. 201A CLUTCHFIG. 206A TRANSMISSIONFIG. 212A GEAR SHIFTING

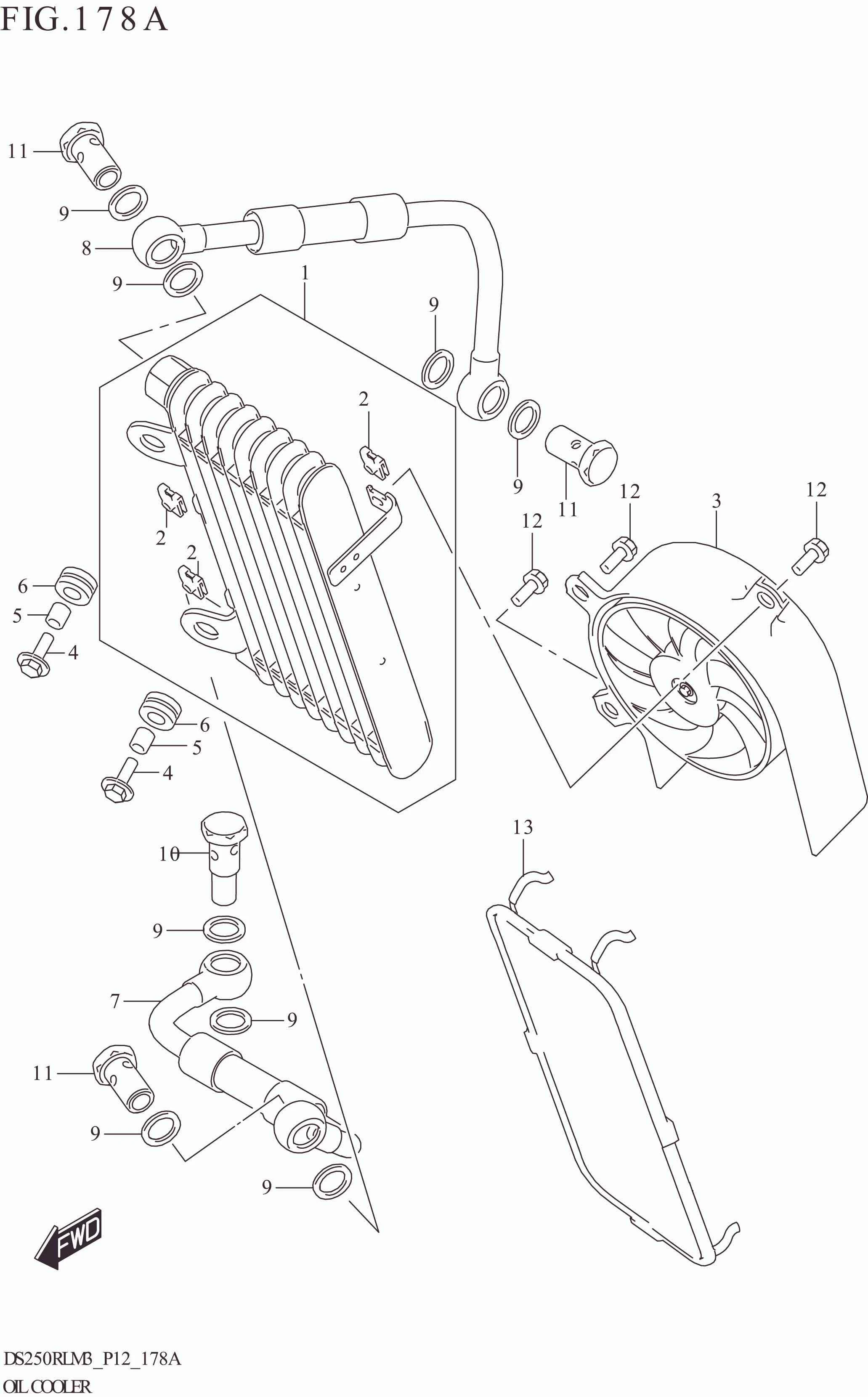

FIG. 178A OIL COOLER

FIG. 178A OIL COOLER
No No. Part Description Qty Price Per Pcs Remarks
1 16600-41K00-000 COOLER ASSY,OIL 1 Rp1.212.500
2 17802-41K00-000 .NUT 3 Rp31.000
3 16800-41K00-000 FAN ASSY,OIL COOLER 1 Rp1.063.000
4 09116-06111-000 BOLT (6X20) 2 Rp7.000
5 09180-06310-000 SPACER (6.5X10X10) 2 Rp5.000
6 09320-10015-000 CUSHION (10X20X10) 2 Rp5.500
7 16460-41K00-000 HOSE,OIL COOLER INLET 1 Rp1.406.000
8 16470-41K00-000 HOSE,OIL COOLER OUTLET 1 Rp1.448.500
9 09168-16002-000 GASKET (16X22X2) 8 Rp13.000
10 09360-14016-000 BOLT 1 Rp72.000
11 09360-16002-000 UNION (16X32) 3 Rp52.500
12 01550-0612A-000 BOLT 3 Rp3.500
13 16650-20L00-000 GUARD,OIL COOLER 1 Rp173.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
