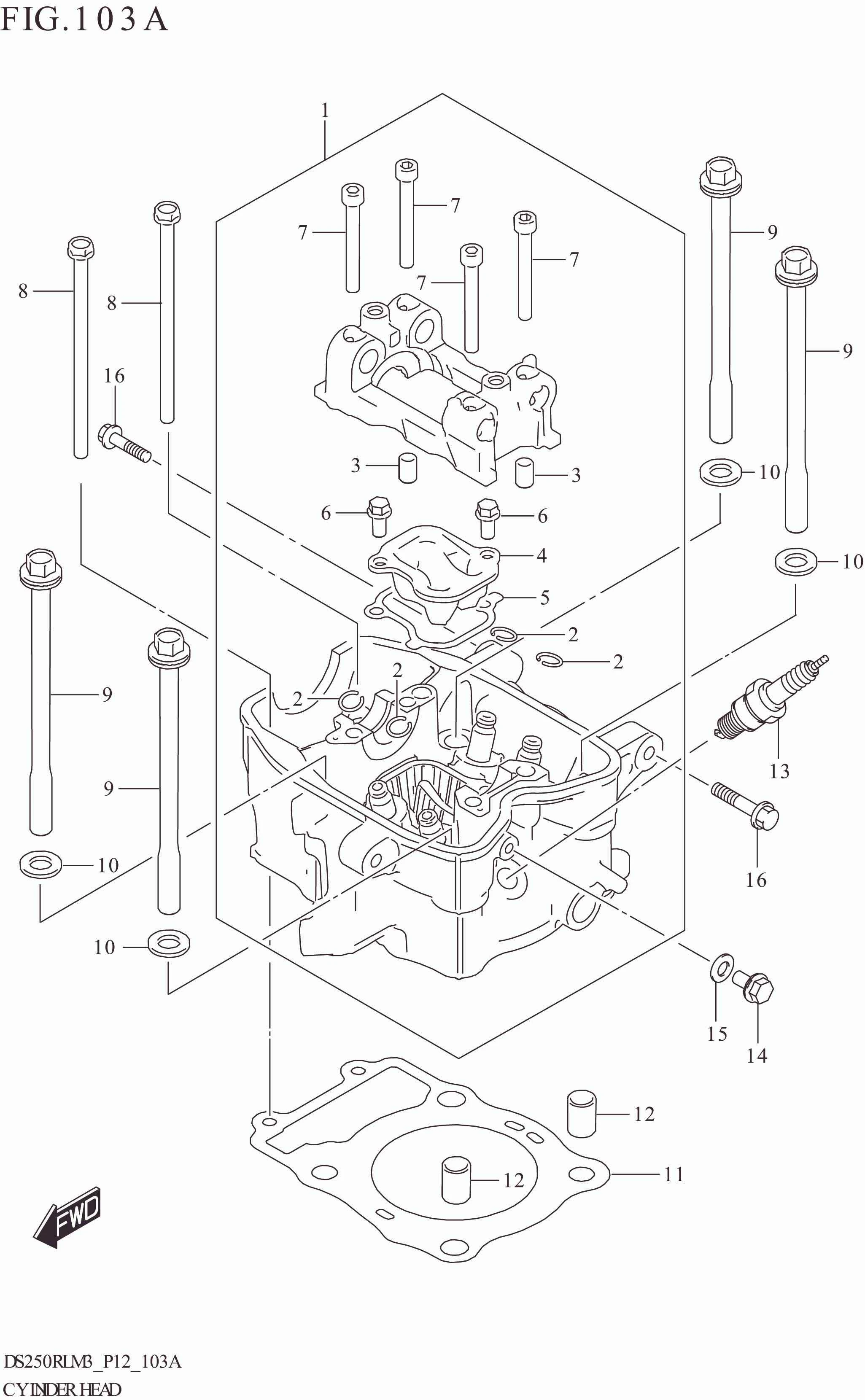

FIG. 103A CYLINDER HEAD

FIG. 103A CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-41K00-000 HEAD ASSY,CYLINDER 1 Rp1.929.500
2 09381-10004-000 .RING,SNAP (10X85) 4 Rp3.000
3 09206-08008-000 .PIN (6.3X8X12) 2 Rp4.000
4 11181-41K00-000 .LID,OIL JACKET 1 Rp53.000
5 11182-41K00-000 .GASKET,OIL JACKET LID 1 Rp20.000
6 01547-0610A-000
SUB: 01547-0612A-000
.BOLT 2 Rp3.000
7 07130-0650A-000 .BOLT 4 Rp16.000
8 09103-06545-000 BOLT (6X115) 2 Rp37.500
9 09103-10470-000 BOLT (10X145) 4 Rp134.000
10 09160-10164-000 WASHER (10.5X19X2) 4 Rp9.000
11 11141-41K00-000 GASKET,CYLINDER HEAD 1 Rp131.000
12 04211M13189-000
SUB: 04211-13189-000
PIN (10.4X13X18) 2 Rp9.000
13 09482-00646-000 PLUG,SPARK (MR8E-9) 1 Rp29.000
14 01550-0612A-000 BOLT 1 Rp3.500
15 09168-06018-000 GASKET (6.2X13X1.2) 1 Rp8.500
16 01550-0820B-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
