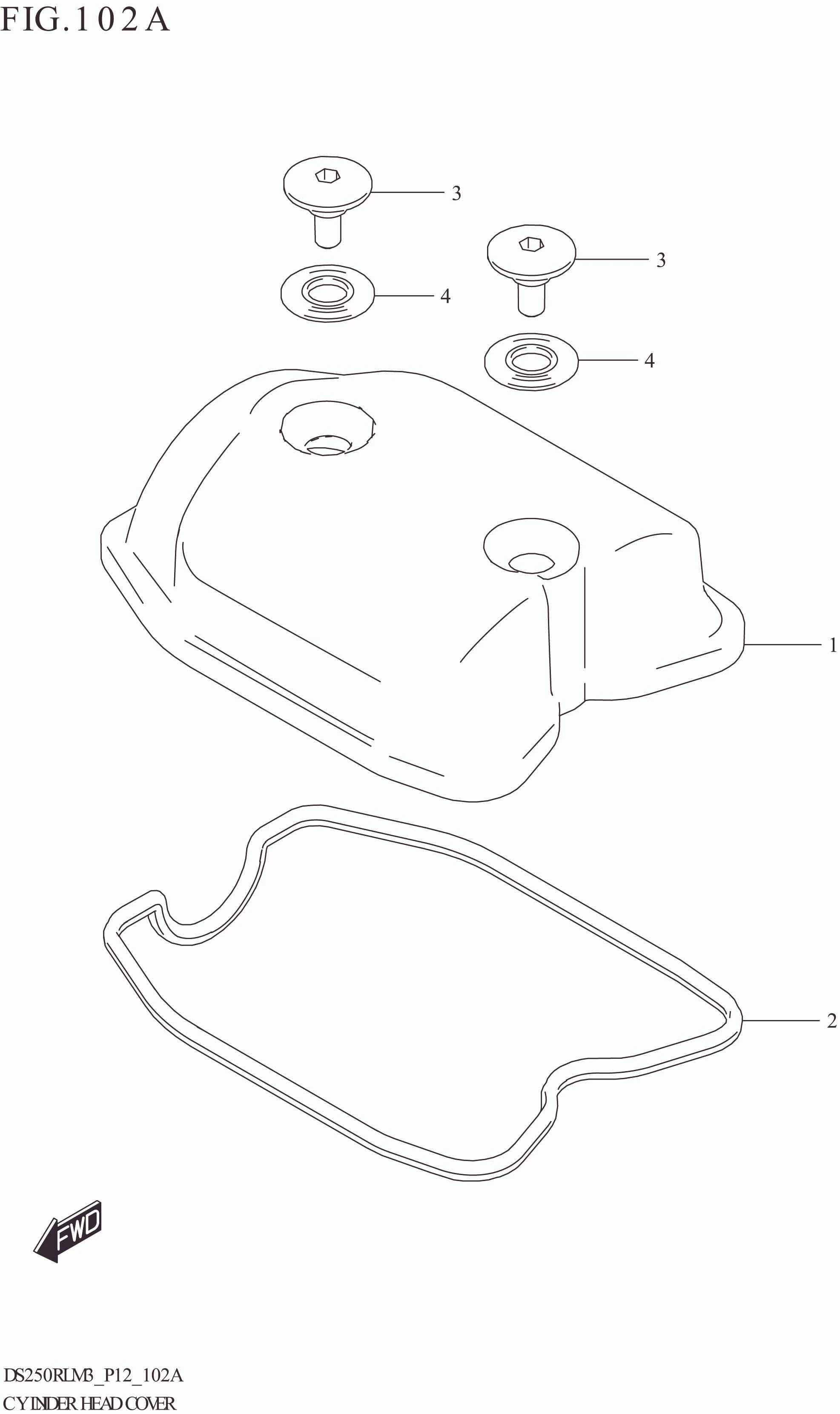

FIG. 102A CYLINDER HEAD COVER

FIG. 102A CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11171-41K00-000 COVER,CYLINDER HEAD 1 Rp275.000
2 11173-41K00-000 GASKET,CYL HEAD COVER 1 Rp23.500
3 09106-07027-000 BOLT (L6.5) 2 Rp23.000
4-1 11191-27E00-000 WASHER,CYL HEAD COVER (10.6X25.5X1.6) 2 Rp30.500
4-2 11191-27E70-000 WASHER (10.6X25.5X1.6) 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
