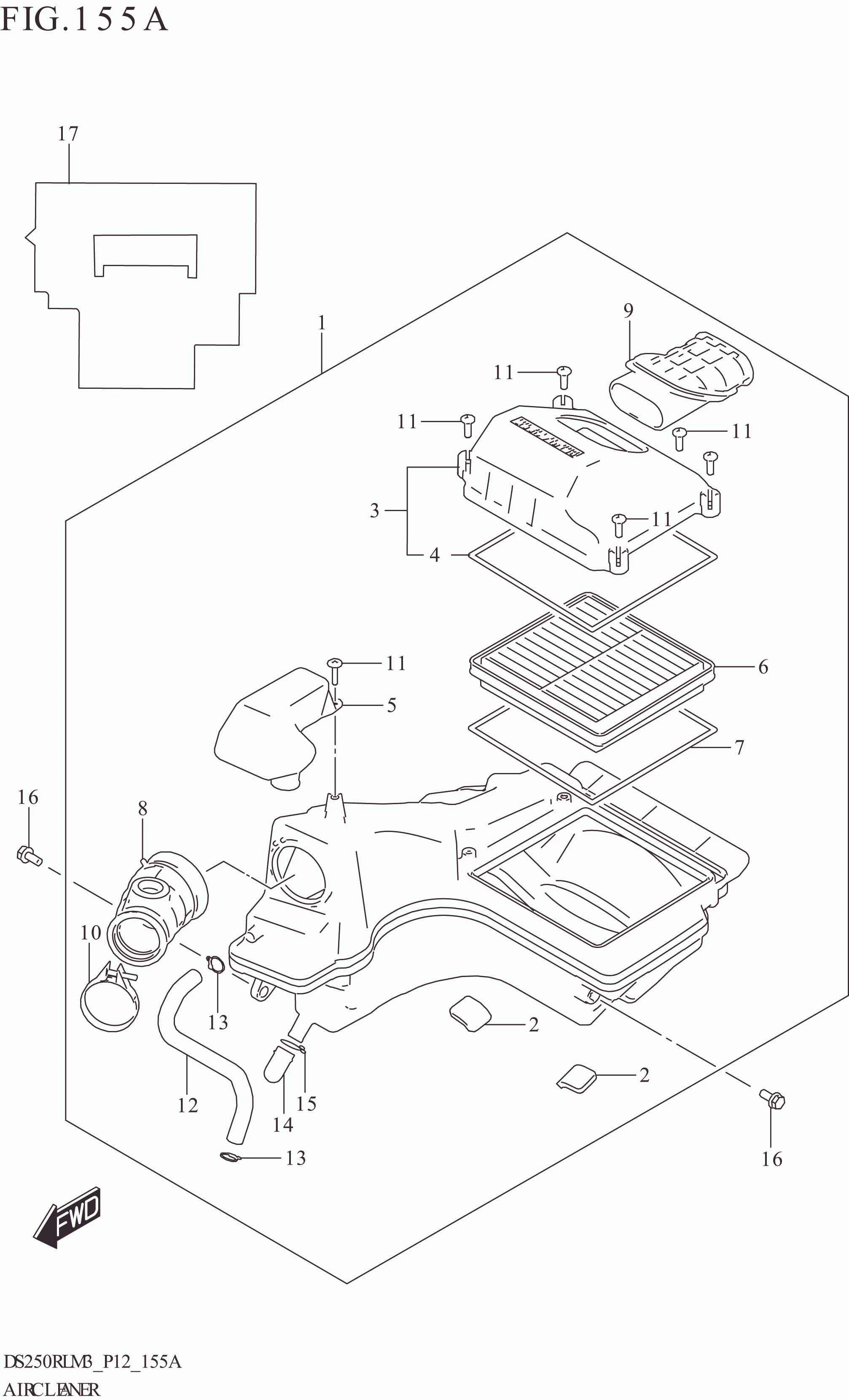

FIG. 155A AIR CLEANER

FIG. 155A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-41K00-000 CLEANER ASSY,AIR 1 Rp416.000
2 13725-41K00-000 .CUSHION,CASE 2 Rp9.000
3 13740-41K00-000 .CAP,AIR CLEANER 1 Rp39.500
4 13746-41K00-000 ..GASKET 1 Rp15.000
5 13761-41K00-000 .RESONATOR 1 Rp38.000
6 13780-41K00-000 .FILTER,AIR CLEANER 1 Rp83.000
7 13746-41K00-000 .GASKET 1 Rp15.000
8 13881-41K00-000 .TUBE,OUTLET 1 Rp105.500
9 13891-41K00-000 .TUBE,INLET 1 Rp76.500
10 13826-41K00-000 .CLAMP 1 Rp22.500
11 03541-0520A-000 .SCREW 6 Rp3.500
12 13853-41K00-000 .TUBE,BREATHER 1 Rp28.500
13 09401-12418-000 .CLIP 2 Rp5.500
14 13859-41B10-000 .PLUG 1 Rp44.500
15 09401-14101-000 .CLIP (ID:14.5) 1 Rp19.000
16 DISCONTINUE
SUB: 01580-0616A-000		 BOLT 2 -
17 13841-20L00-000 SHEET,AIR CLEANER INLET 1 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
