THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CRANK BALANCERFIG.8 CAMSHAFT - VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 2ND AIRFIG.15 CLUTCHFIG.16 TRANSMISSIONFIG.17 GEAR SHIFTING

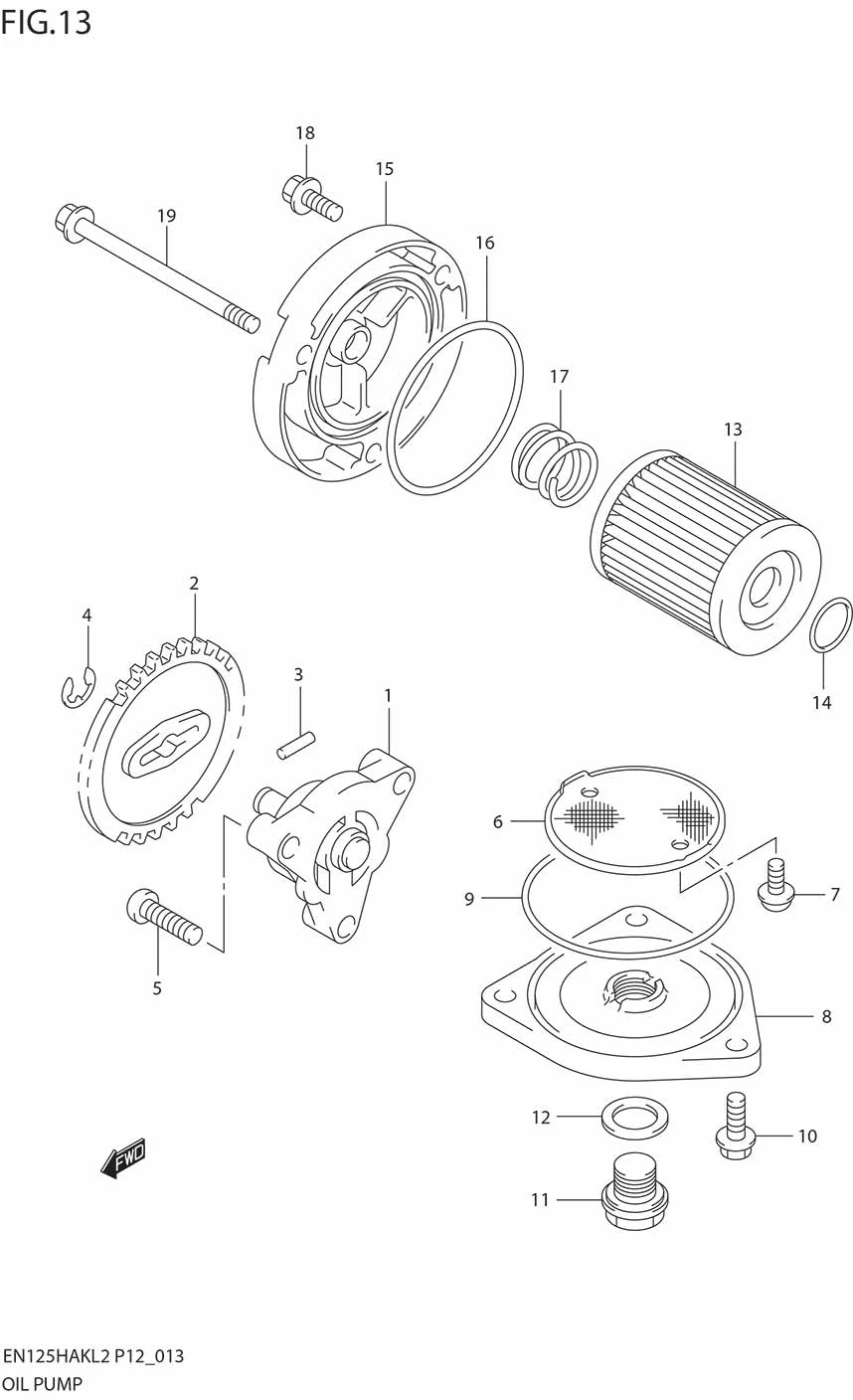

FIG.13 OIL PUMP

FIG.13 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16400-25H00-000 PUMP ASSY, ENGINE OIL 1 Rp115.500
2 16331-12F10-000 GEAR, DRIVEN (NT:30) 1 Rp47.500
3 09261-02001-000 PIN 1 Rp9.000
4 08332-1106A-000 CIRCLIP 1 Rp8.500
5 02112-0620A-000 SCREW 3 Rp4.000
6 16520-05202-000 STRAINER, ENGINE OIL 1 Rp24.000
7 02112-7512A-000 SCREW 2 Rp14.000
8 16523-24H00-000 CAP, OIL STRAINER 1 Rp46.500
9 09280-60005-000 O RING (D:2.4,ID:60.5) 1 Rp14.000
10 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 3 Rp6.500
11 09247-14043-000 PLUG, DRAIN 1 Rp13.000
12 09168-14002-000 GASKET 1 Rp14.000
13 16510-45H20-000
SUB: 16510-05240-000		 FILTER, ENGINE OIL 1 Rp9.000
14 09280-13004-000 O RING (D:1.9,ID:13) 1 Rp14.000
15 16512-25H00-000 CAP, OIL FILTER 1 Rp42.500
16 09280-54001-000 O RING (D:2.4,ID:52.6) 1 Rp3.000
17 DISCONTINUE
SUB: 09440-18002-000		 SPRING 1 -
18 01547-0616A-000 BOLT 2 Rp6.500
19 01547-0690A-000 BOLT 1 Rp22.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
