THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CRANK BALANCERFIG.8 CAMSHAFT - VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 2ND AIRFIG.15 CLUTCHFIG.16 TRANSMISSIONFIG.17 GEAR SHIFTING

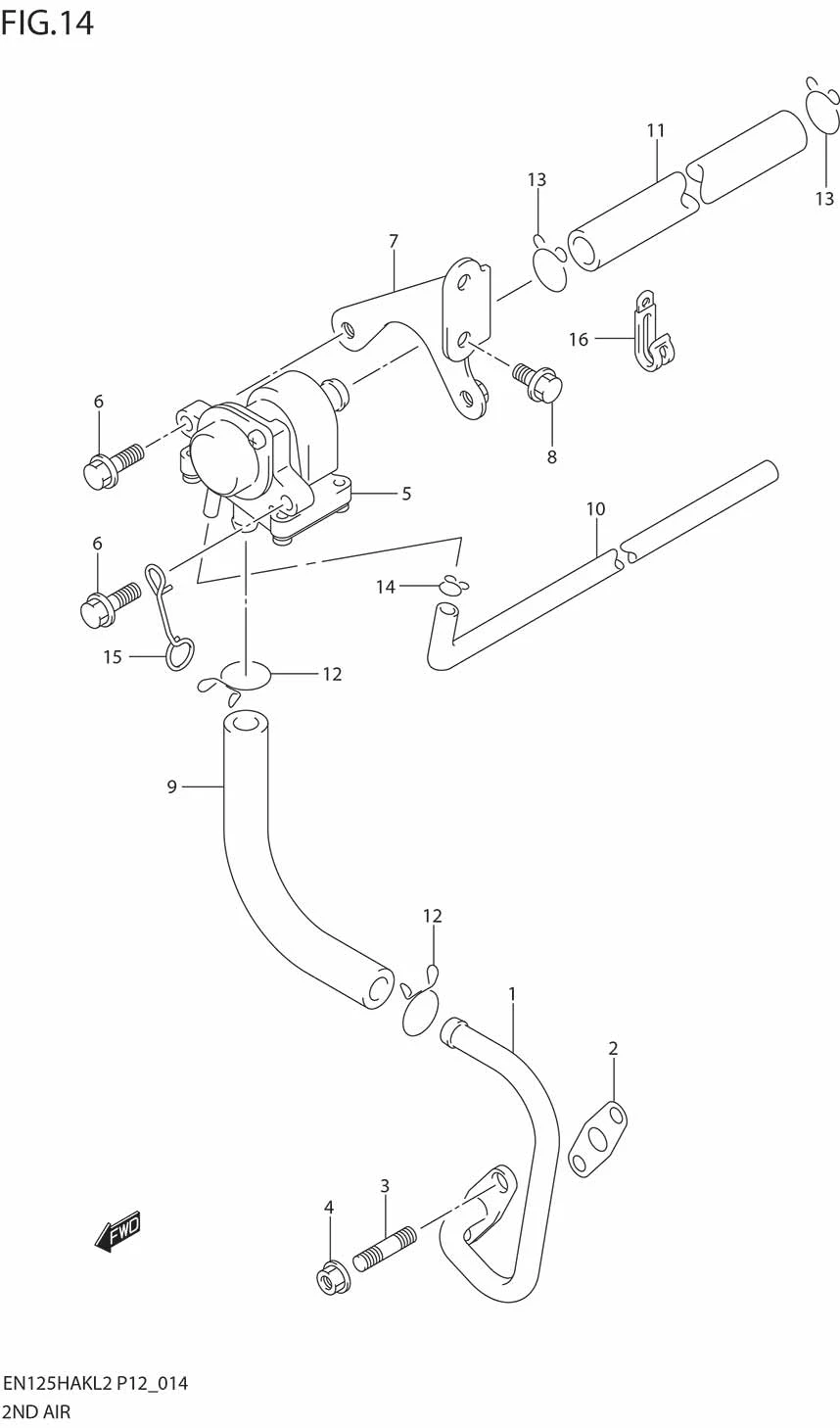

FIG.14 2ND AIR

FIG.14 2ND AIR
No No. Part Description Qty Price Per Pcs Remarks
1 18410-26H00-000 PIPE, 2ND AIR 1 Rp50.000
2 18441-20E10-000
SUB: 18441-20E00-000		 GASKET 1 Rp4.500
3 01421-0616B-000 BOLT 2 -
4 08316-1006A-000
SUB: 08316-1006B-000		 NUT 2 Rp2.000
5 18450-26H00-000 VALVE ASSY, 2ND AIR 1 Rp186.500
6 01550-0620B-000 BOLT 2 Rp3.500
7 18610-26H00-000 BRACKET 1 Rp31.000
8 01550-0612B-000 BOLT 2 Rp16.500
9 18461-26H00-000 HOSE, 2ND AIR VALVE 1 -
10 09352-40703-420 HOSE, 2ND AIR VALVE VACUUM 1 -
11 DISCONTINUE
SUB: 09355-11165-420		 HOSE, 2ND AIR CLEANER 1 -
12 09401-13409-000 CLIP 2 Rp8.500
13 09401-15101-000 CLIP 2 Rp3.000
14 09401-06101-000 CLIP 2 Rp2.000
15 18442-26H00-000 GUIDE 1 -
16 18443-26H00-000 BRACKET 1 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
