THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CRANK BALANCER FIG.8 CAMSHAFT - VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 2ND AIR FIG.15 CLUTCH FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING

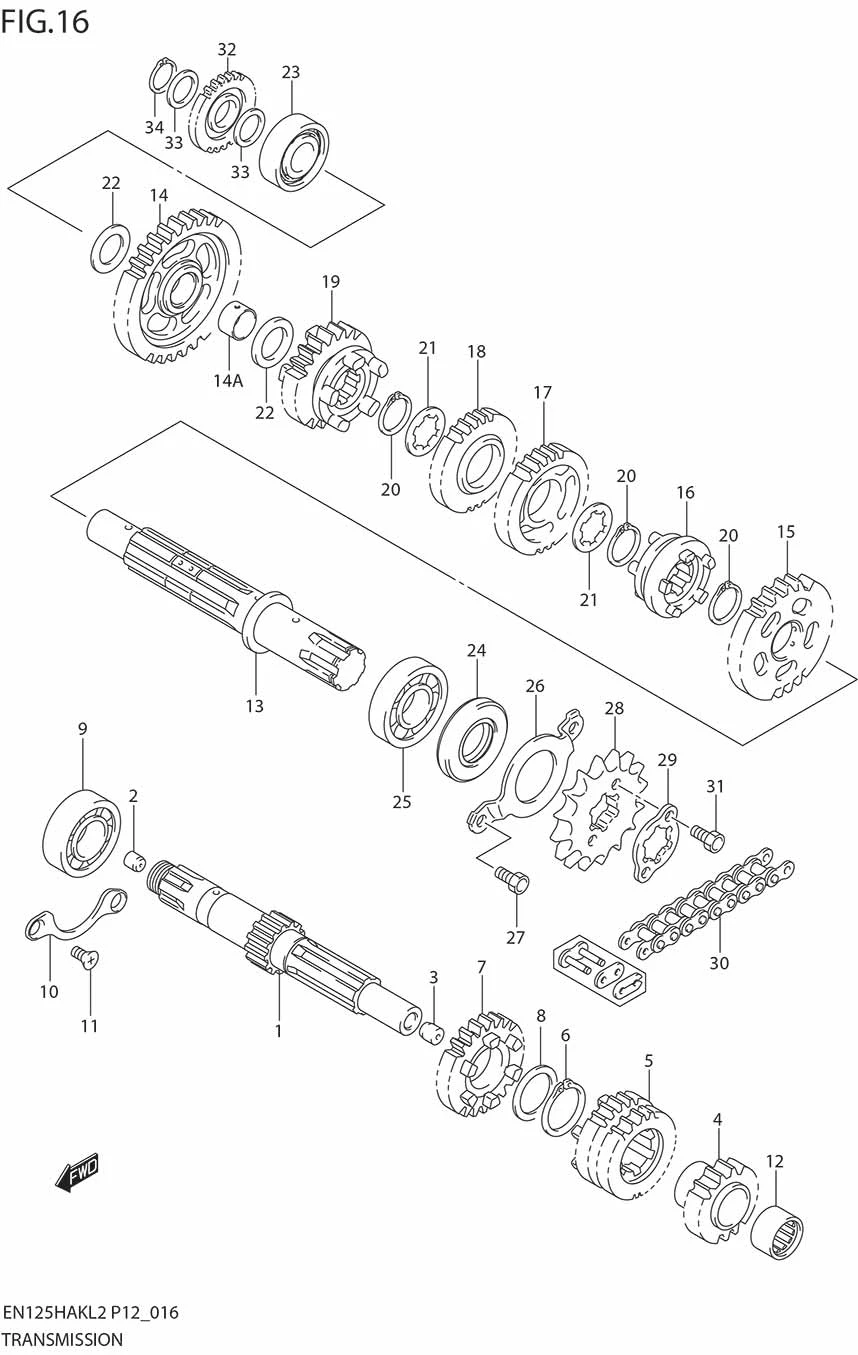

FIG.16 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	24121-25H00-000	SHAFT, COUNTER (NT:11)	1	Rp145.500
2	24125-25H00-000	NOZZLE, RH	1	Rp19.000
3	24125-25H10-000	NOZZLE, LH	1	Rp19.000
4	24221-25H00-000	GEAR, 2ND DRIVE (NT:14)	1	Rp54.000
5	24231-25H00-000	GEAR, 3RD & 4TH (NT:19/21)	1	Rp112.500
6	09380-20009-000	CIRCLIP, 5TH DRIVE	1	Rp10.000
7	24251-25H10-000	GEAR, 5TH DRIVE (NT:23)	1	Rp61.000
8	09181-20139-000	WASHER, 5TH DRIVE	1	Rp19.000	20X26X1
9	09262-20069-000	BEARING, COUNTER SHAFT RH	1	Rp154.500	20X47X14
10	DISCONTINUE SUB: 24741-05200-000	RETAINER, COUNTER BEARING	1	-
11	02112-0612A-000	SCREW	2	Rp3.500
12	DISCONTINUE SUB: 08123-60027-000	BEARING, COUNTERSHAFT LH	1	-
13	24130-26H21-000	SHAFT, DRIVE	1	Rp156.500
14	24311-26H00-000	GEAR, 1ST DRIVEN (NT:33)	1	Rp88.500
14A	24312-26H00-000	BUSH, 1ST DRIVEN GEAR	1	Rp47.500
15	24320-25H00-000	GEAR, 2ND DRIVEN (NT:26)	1	Rp89.500
16	DISCONTINUE SUB: 24421-25H00-000	WHEEL, SLIDING DOG	1	-
17	DISCONTINUE SUB: 24331-25H00-000	GEAR, 3RD DRIVEN (NT:26)	1	-
18	DISCONTINUE SUB: 24341-25H00-000	GEAR, 4TH DRIVEN (NT:23)	1	-
19	24351-25H00-000	GEAR, 5TH DRIVEN (NT:22)	1	Rp84.500
20	09380-20009-000	CIRCLIP, 2ND/3RD/4TH DRIVEN	3	Rp10.000
21	09167-20011-000	WASHER, 3RD/4TH DRIVEN	2	Rp7.500	20.5X25X0.5
22	08211-15252-000	WASHER, 1ST DRIVEN	2	Rp9.000
23	09262-15031-000	BEARING, RH	1	Rp163.000	15X35X11
24	09283-20076-000 SUB: 09283-20058-000	OIL SEAL (20X40X6)	1	Rp26.000
25	08120-62040-000	BEARING, LH	1	Rp45.000
26	DISCONTINUE SUB: 24751-25H00-000	RETAINER, DRIVE SHAFT	1	-
27	01500-0610A-000	BOLT	2	Rp6.500
28	27511-41330-000	SPROCKET, ENGINE (NT:14)	1	Rp42.500
29	27512-05300-000	WASHER, SPROCKET	1	Rp8.500
30	27600-29B40-118	CHAIN ASSY (SKMC428H,118LE)	1	Rp148.500
31	01500-0610A-000	BOLT	2	Rp6.500
32	26260-05240-000 SUB: 26260-05210-000	GEAR, KICK STARTER IDLE	1	Rp63.000
33	08211-15252-000	WASHER	2	Rp9.000
34	08331-31159-000 SUB: 08331-3115A-000	CIRCLIP	1	Rp14.000
