THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CRANK BALANCERFIG.8 CAMSHAFT - VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 2ND AIRFIG.15 CLUTCHFIG.16 TRANSMISSIONFIG.17 GEAR SHIFTING

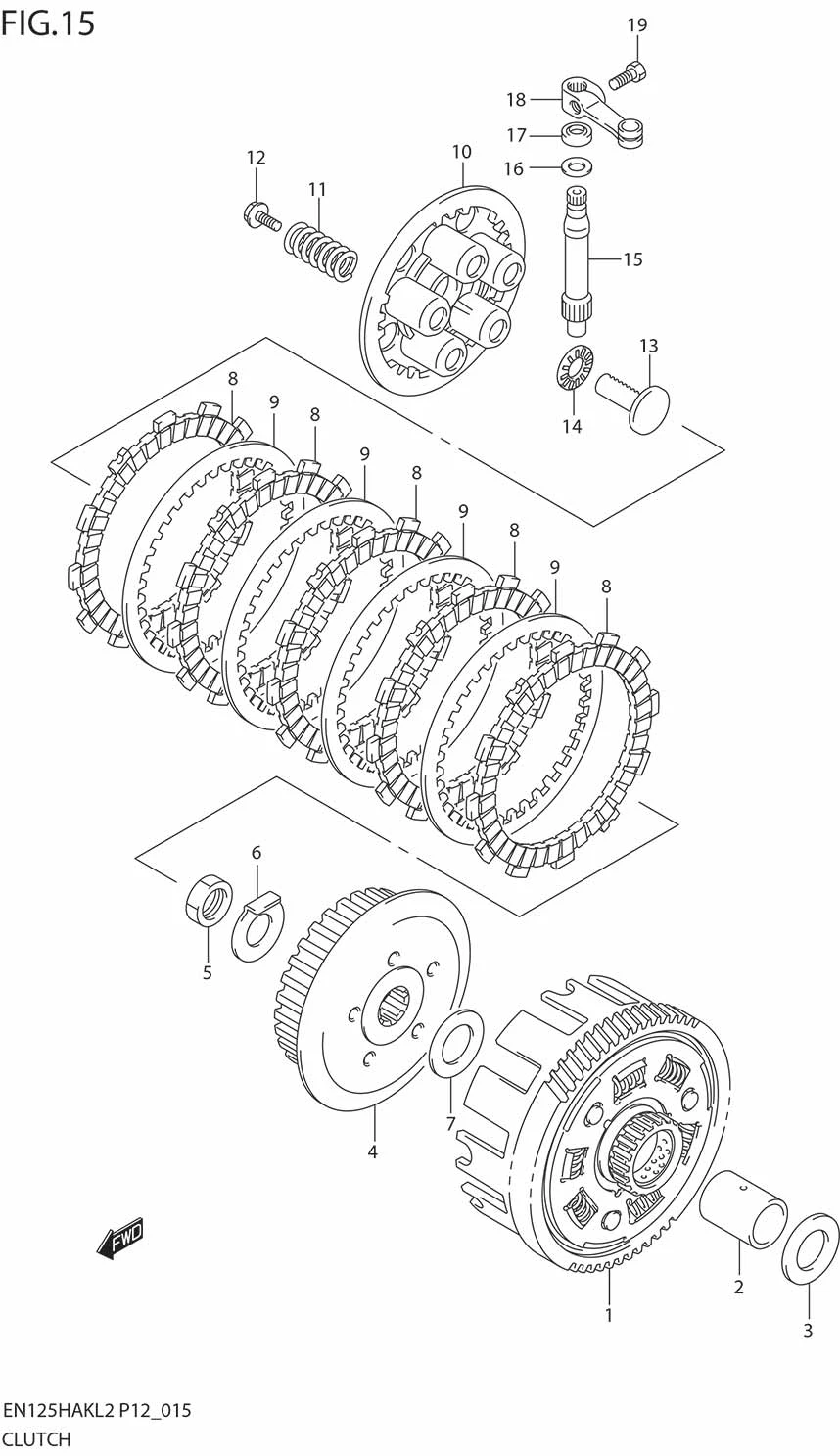

FIG.15 CLUTCH

FIG.15 CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 21200-26H10-000 GEAR ASSY, PRIMARY DRIVEN 1 Rp583.000 NT:70
2 DISCONTINUE
SUB: 21251-25H00-000		 SPACER, PRIMARY DRIVEN 1 -
3 08211-20353-000 WASHER 1 Rp15.500
4 21411-25H00-000 HUB, SLEEVE (NT:30) 1 Rp98.500
5 09140-16034-000 NUT, CLUTCH SLEEVE 1 Rp17.000
6 09169-16009-000
SUB: 09169-16003-000		 LOCK WASHER 1 Rp5.500
7 08211-20353-000 WASHER 1 Rp15.500
8 21441H13A20H000
SUB: 21441-13A20-000		 PLATE, CLUTCH DRIVE 5 Rp45.500
9 21451-19A00-000 PLATE, DRIVEN 4 Rp46.500
10 21462-25H00-000 DISK, PRESSURE 1 Rp66.500
11 09440-15043-000
SUB: 09440-15014-000		 SPRING 5 Rp4.000
12 09116-05020-000 BOLT (5X16) 5 Rp3.000
13 23165-28G10-000 RACK, CLUTCH RELEASE 1 Rp47.500
14 09263-10002-000 BEARING, CLUTCH RELEASE 1 Rp63.500 10.1X22X2.8
15 23261-13A21-000
SUB: 23261-13A01-000		 PINION, CLUTCH RELEASE 1 Rp53.500
16 DISCONTINUE
SUB: 09160-12119-000		 WASHER (12.5X17X1) 1 -
17 09285-10008-000
SUB: 09285-10004-000		 SEAL, CLUTCH RELEASE 1 Rp9.500 10X17X5
18 23271-25H00-000 ARM, CLUTCH RELEASE 1 Rp49.500
19 01500-0616A-000
SUB: 01500-06167-000		 BOLT, ARM 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
