THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CRANK BALANCER FIG.8 CAMSHAFT - VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 2ND AIR FIG.15 CLUTCH FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING

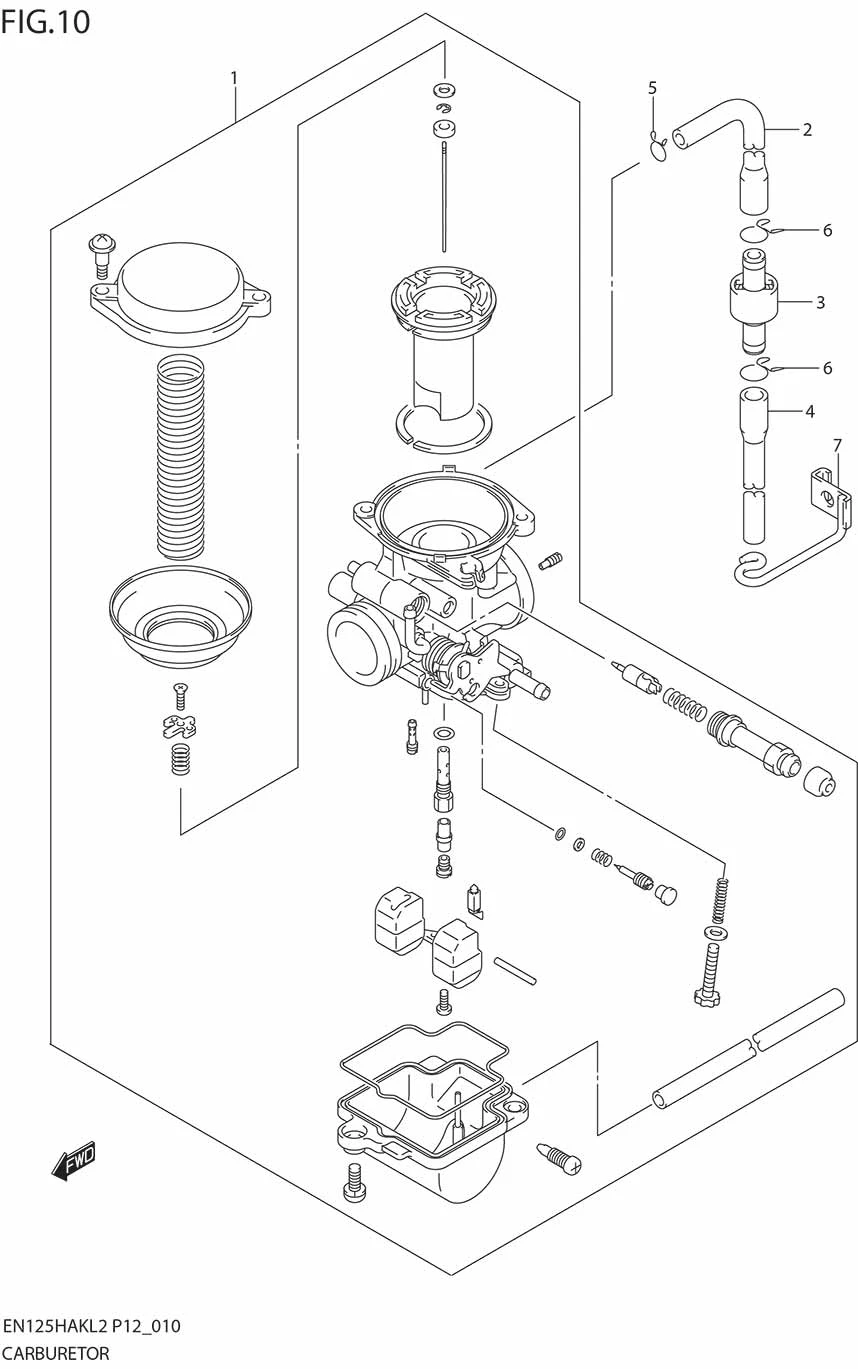

FIG.10 CARBURETOR

FIG.10 CARBURETOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	13200-26H30-000	CARBURETOR ASSY	1	Rp919.500
2	13684-26H00-000	HOSE, AIR VENT NO.1	1	Rp6.500
3	13685-26H00-000	UNION	1	Rp5.500
4	13687-26H00-000	HOSE, AIR VENT NO.2	1	Rp14.500
5	09401-07201-000	CLIP	1	Rp3.500
6	DISCONTINUE SUB: 09401-10403-000	CLAMP	2	-
7	13686-26H00-000	GUIDE	1	Rp15.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
