THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CRANK BALANCER FIG.8 CAMSHAFT - VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 2ND AIR FIG.15 CLUTCH FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING

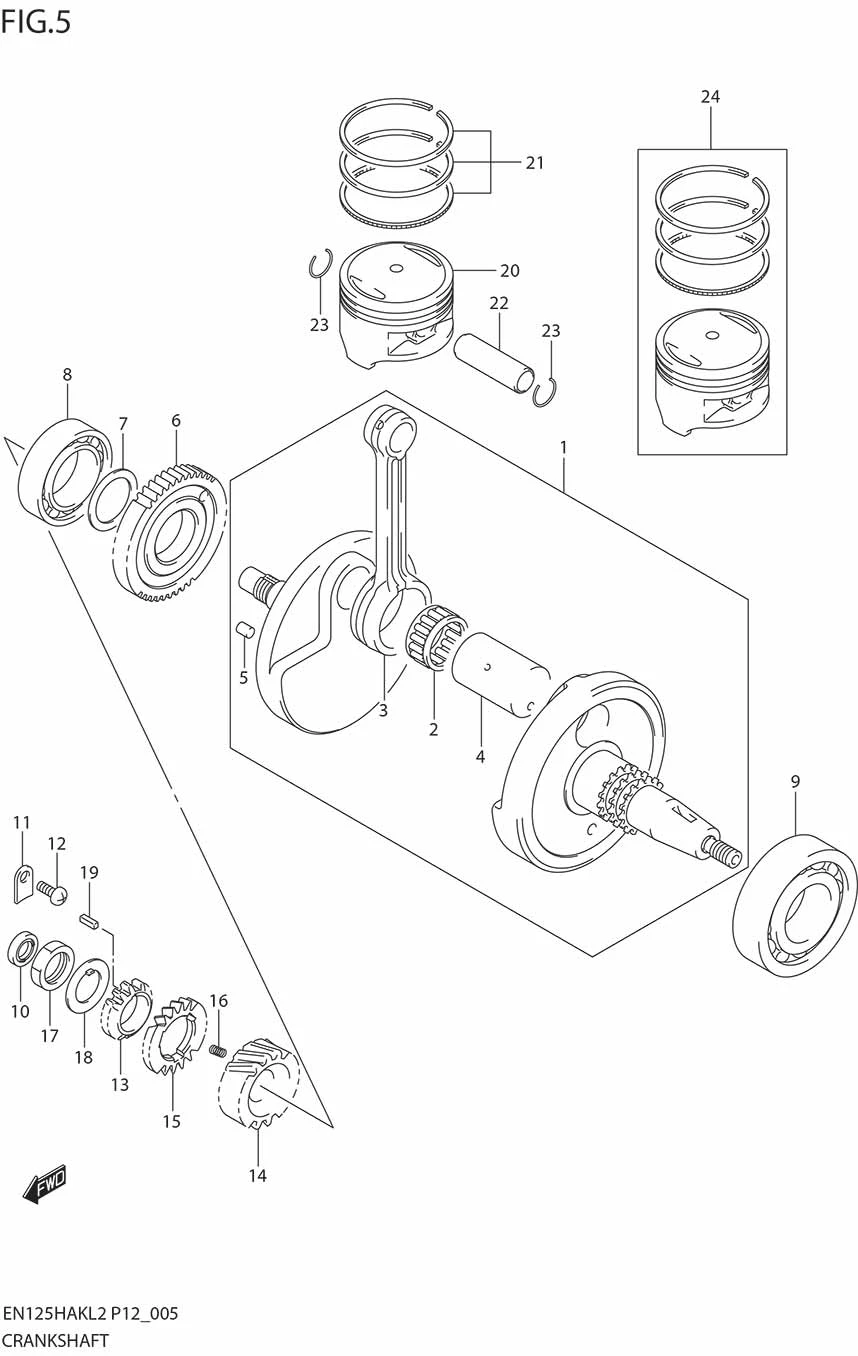

FIG.5 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12200-26H30-000 SUB: 12200-26H20-000	CRANKSHAFT ASSY	1	Rp903.500
2	09263-28043-0B0	?BEARING (28X36X15.8)	1	-
3	12161-26H00-0B0	?ROD, CONNECTING	1	-
4	12211-25H10-0A0	?PIN, CRANK	1	-
5	04221-08129-000	?PIN, GEAR	1	Rp14.000
6	12661-25H00-000	GEAR, CRANK BALANCER DRIVE	1	Rp204.000
7-16	DISCONTINUE SUB: 09181-28026-000	SHIM, CRANKSHAFT, R (T:1.65)	1	-
7-19	09181-28029-000	SHIM, CRANKSHAFT, R (T:1.8)	1	Rp14.000
7-18	DISCONTINUE SUB: 09181-28028-000	SHIM, CRANKSHAFT, R (T:1.75)	1	-
7-17	DISCONTINUE SUB: 09181-28027-000	SHIM, CRANKSHAFT, R (T:1.7)	1	-
7-15	DISCONTINUE SUB: 09181-28025-000	SHIM, CRANKSHAFT, R (T:1.6)	1	-
7-14	DISCONTINUE SUB: 09181-28024-000	SHIM, CRANKSHAFT, R (T:1.55)	1	-
7-13	09181-28211-000	SHIM, CRANKSHAFT, R (T:1.5)	1	Rp15.500
7-12	DISCONTINUE SUB: 09181-28023-000	SHIM, CRANKSHAFT, R (T:1.45)	1	-
7-11	DISCONTINUE SUB: 09181-28210-000	SHIM, CRANKSHAFT, R (T:1.4)	1	-
7-9	12228-12K00-0R0 SUB: 09181-28209-000	SHIM, CRANKSHAFT, R (T:1.3)	1	Rp10.500
7-8	12228-12K00-0P0 SUB: 09181-28207-000	SHIM, CRANKSHAFT, R (T:1.25)	1	Rp10.500
7-7	12228-12K00-0N0 SUB: 09181-28204-000	SHIM, CRANKSHAFT, R (T:1.2)	1	Rp10.500
7-6	12228-12K00-0M0 SUB: 09181-28202-000	SHIM, CRANKSHAFT, R (T:1.15)	1	Rp10.500
7-5	12228-12K00-0L0 SUB: 09181-28200-000	SHIM, CRANKSHAFT, R (T:1.1)	1	Rp10.500
7-4	12228-12K00-0K0 SUB: 09181-28197-000	SHIM, CRANKSHAFT, R (T:1.05)	1	Rp10.500
7-3	12228-12K00-0J0 SUB: 09181-28194-000	SHIM, CRANKSHAFT, R (T:1.0)	1	Rp10.500
7-2	12228-12K00-0H0 SUB: 09181-28193-000	SHIM, CRANKSHAFT, R (T:0.95)	1	Rp10.500
7-1	12228-12K00-0G0 SUB: 09181-28192-000	SHIM, CRANKSHAFT, R (T:0.9)	1	Rp10.500
7-10	12228-12K00-0S0 SUB: 09181-28022-000	SHIM, CRANKSHAFT, R (T:1.35)	1	Rp10.500
8	09262-28047-000	BEARING, RH (28X68X17)	1	Rp107.500
9	09262-35086-000	BEARING, LH (35X72X17)	1	Rp107.500
10	09282-12009-000	OIL SEAL, RH (12X21X7)	1	Rp77.500
11	24742-18A00-000	RETAINER	1	Rp6.000
12	02112-0612A-000	SCREW	1	Rp3.500
13	16321H05201H000 SUB: 16321-05220-000	GEAR, OIL PUMP DRIVE	1	Rp53.500
14	21111-25H00-000	GEAR, PRIMARY DRIVE (NT:20)	1	Rp171.500
15	21112-26H00-000	GEAR, PRIMARY DRIVE NO.2 (NT:20)	1	Rp120.000
16	21114-26H00-000	SPRING	3	Rp3.500
17	09140-16035-000	NUT	1	Rp21.500
18	09166-16012-000	LOCK WASHER	1	Rp15.000
19	09421-04004-000	KEY, GEAR	1	Rp6.500
20	12111-12F50-0F0	PISTON	1	Rp94.000
21	12140-24H00-000	RING SET, PISTON	1	Rp129.000
22	12151-20E20-000 SUB: 12151-12F00-000	PIN, PISTON	1	Rp23.000
23	09381-14001-000	CIRCLIP	2	Rp2.500
24	12100-24H00-050	PISTON SET (OS:0.5)	1	-	OPT
