THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CRANK BALANCER FIG.8 CAMSHAFT - VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 2ND AIR FIG.15 CLUTCH FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING

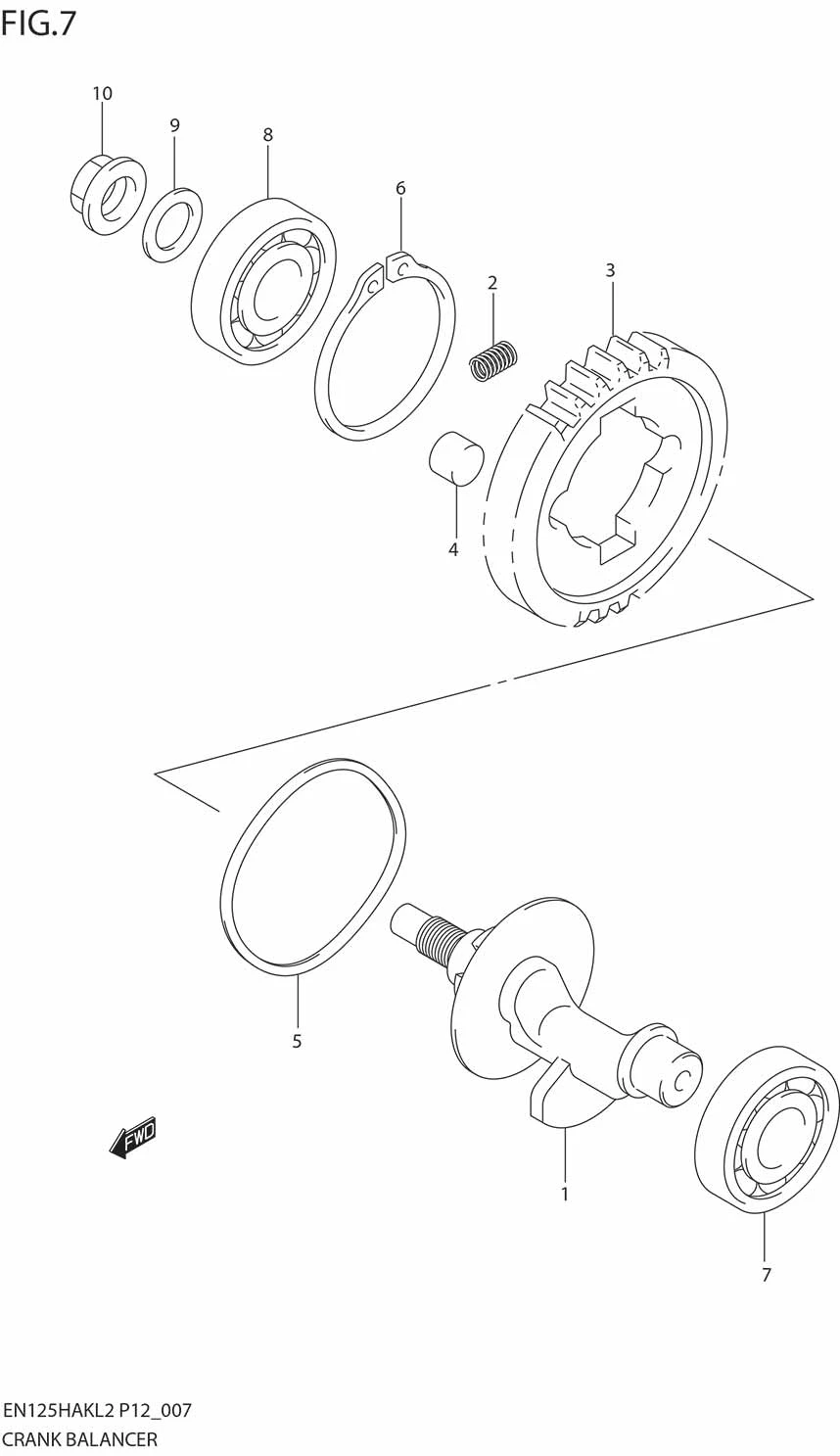

FIG.7 CRANK BALANCER

FIG.7 CRANK BALANCER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12650-26H00-000	BALANCER, CRANK	1	Rp288.000
2	12663-47E50-000	SPRING	2	Rp3.000
3	12666-25H00-000	GEAR, CRANK BALANCER DRIVEN	1	Rp207.500
4	12686-26H00-000	DAMPER	2	Rp11.000
5	09164-58003-000	WASHER	1	Rp146.000
6	09380-38008-000	CIRCLIP	1	Rp12.000
7	09262-20153-000	BEARING, LH	1	Rp95.000
8	09262-20154-000	BEARING, RH	1	Rp146.500
9	08211-14285-000	WASHER	1	Rp8.500
10	08316-1014A-000	NUT	1	Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
