THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CRANK BALANCER FIG.8 CAMSHAFT - VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 2ND AIR FIG.15 CLUTCH FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING

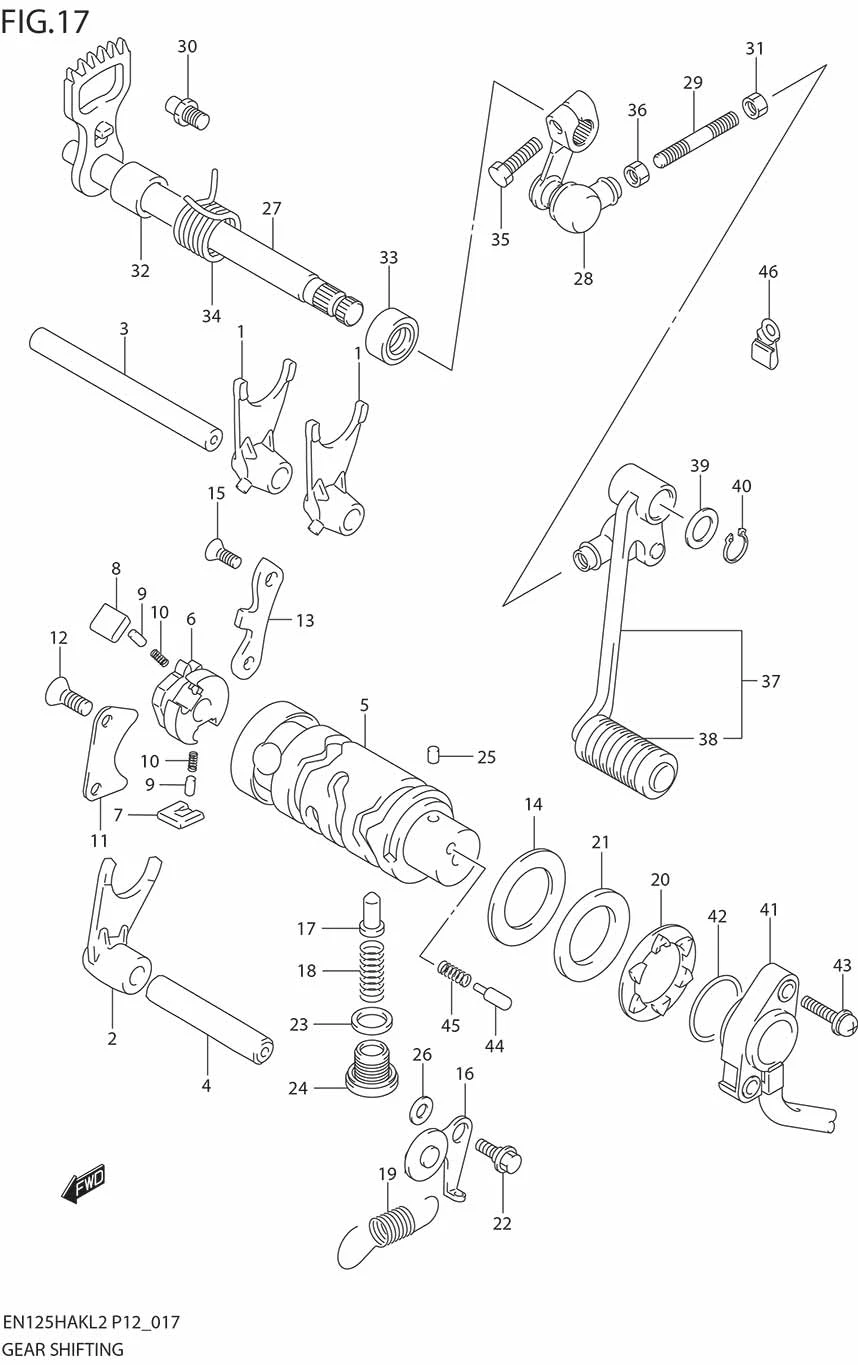

FIG.17 GEAR SHIFTING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 25221-08300-000	FORK, GEAR SHIFTING NO.1	2	-
2	25231-05201-000	FORK, GEAR SHIFTING NO.3	1	Rp282.000
3	DISCONTINUE SUB: 25411-16701-000	SHAFT, FORK NO.1	1	-
4	DISCONTINUE SUB: 25421-35403-000	SHAFT, FORK NO.2	1	-
5	25310-05340-000	CAM, GEAR SHIFT	1	Rp160.500
6	25322-31320-000	GEAR, CAM DRIVEN	1	Rp70.000
7	25323-34201-000	PAWL, GEAR SHIFT NO.1	1	Rp41.000
8	25324-34201-000	PAWL, GEAR SHIFT NO.2	1	Rp41.000
9	09261-05013-000	PIN, GEAR SHIFT PAWL	2	Rp5.000
10	09440-04003-000	SPRING, PAWL RETURN	2	Rp10.500
11	25331-30001-000	LIFTER, GEAR SHIFT PAWL	1	Rp29.500
12	02122-0612A-000	SCREW, SHIFT CAM	2	Rp3.500
13	DISCONTINUE SUB: 25341-05200-000	GUIDE, GEAR SHIFT CAM	1	-
14	DISCONTINUE SUB: 09181-25251-000	WASHER (20X40X1)	1	-
15	02122-0612A-000	SCREW, SHIFT PAWL	2	Rp3.500
16	25350-44A00-000	STOPPER, GEAR SHIFT CAM	1	Rp28.000
17	25351-30020-000	STOPPER, GEAR SHIFT CAM	1	Rp18.000
18	09440-11016-000	SPRING, GEAR SHIFT CAM	1	Rp4.500
19	09443-08044-000	SPRING, GEAR SHIFT CAM	1	Rp8.500
20	25381-45400-000	PLATE, GEAR SHIFT CAM	1	Rp86.500
21	25382-26H00-000	WASHER, GEAR SHIFT CAM	1	Rp16.000
22	09111-06054-000	BOLT, CAM STOPPER (6X14.6)	1	Rp6.500
23	09168-14002-000	WASHER, CAM STOPPER	1	Rp14.000	13.8X18.8X4.8
24	09248-14013-000	PLUG, CAM	1	Rp13.500
25	04221-04069-000	PIN, GEAR SHIFT CAM	1	Rp7.500
26	08211-06141-000	WASHER, GEAR SHIFT	1	Rp9.500
27	25510-25H00-000	SHAFT, GEAR SHIFTING	1	Rp100.500
28	25520-47030-000	ARM, GEAR SHIFT SHAFT	1	Rp90.500
29	25525-12C10-000	ROD, GEAR SHIFT ARM	1	Rp23.000
30	DISCONTINUE SUB: 25671-01020-000	STOPPER, GEAR SHIFT ARM	1	-
31	09140-06025-000	NUT, GEAR SHIFT LINK, LH	1	Rp7.000
32	09180-12060-000	SPACER, GEAR SHIFT SHAFT	1	-
33	09283-12010-000 SUB: 09285-12002-000	OIL SEAL, GEAR SHIFT	1	Rp10.000	12X22X9
34	09444-26013-000	SPRING, GEAR SHIFT RETURN	1	Rp18.500
35	01500-06207-000	BOLT, GEAR SHIFT LINK ARM	1	Rp14.000
36	08310-00067-000	NUT, GEAR SHIFT LINK, RH	1	Rp13.000
37	25600-26H00-000	LEVER ASSY, GEAR SHIFT	1	-
38	25652-16H11-000 SUB: 25652-20C00-000	?RUBBER	1	Rp3.500
39	09160-12011-000	WASHER, GEAR SHIFT LEVER	1	Rp10.500	12.5X20X1
40	08331-3112A-000	CIRCLIP, GEAR SHIFT LEVER	1	Rp13.000
41	37720-26H40-000	BASE ASSY, NEUTRAL SWITCH TERM	1	-
42	09280-26005-000	O RING (D:2.4,ID:26.2)	1	Rp3.000
43	02112-7520B-000	SCREW	2	Rp16.500
44	09209-05011-000	CONTACT	1	Rp5.500
45	DISCONTINUE SUB: 09440-04024-000	SPRING	1	-
46	36651-25H01-000	CLAMP, NEUTRAL SWITCH LEAD	2	-
