THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CRANK BALANCER FIG.8 CAMSHAFT - VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 2ND AIR FIG.15 CLUTCH FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING

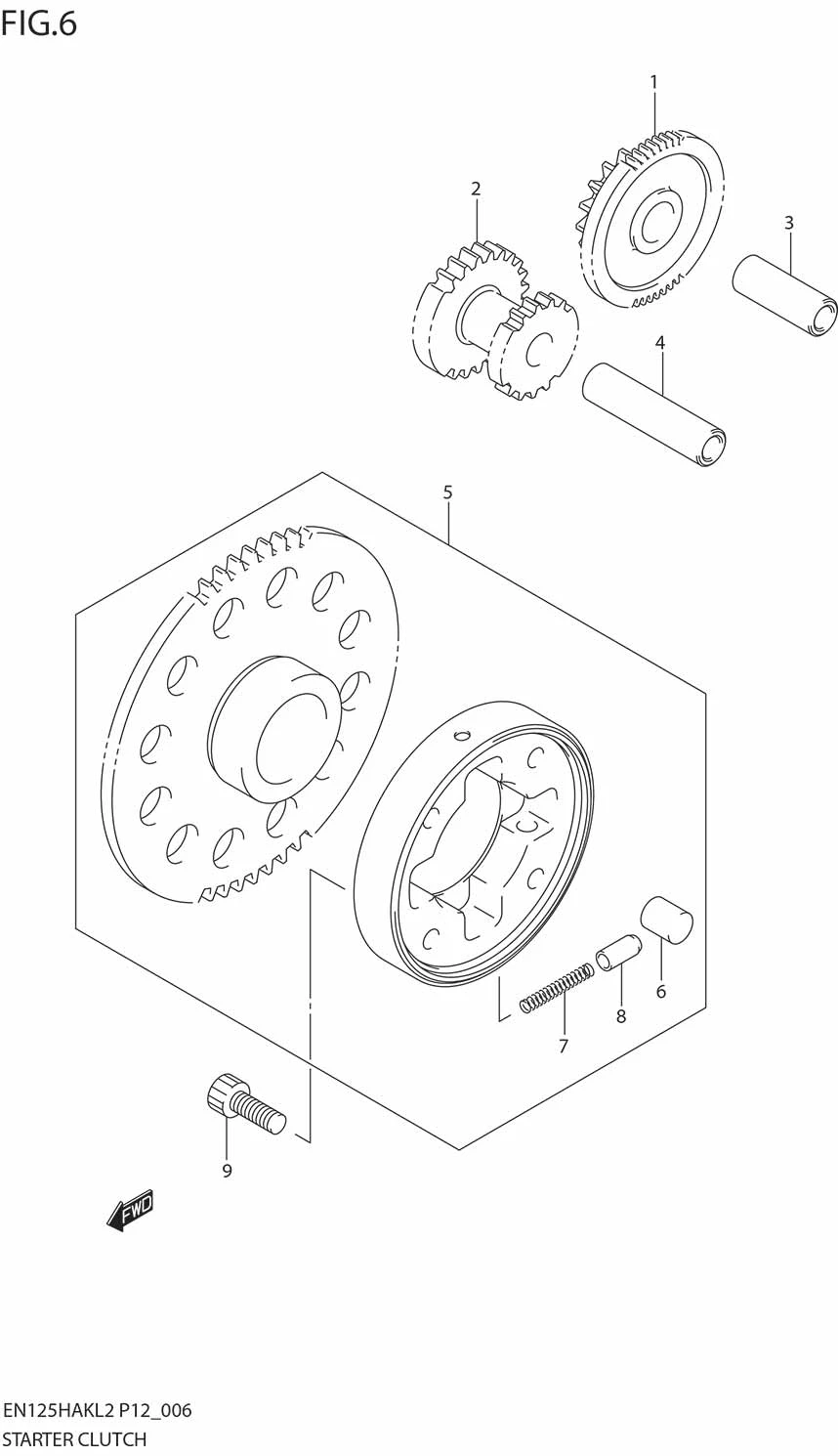

FIG.6 STARTER CLUTCH

FIG.6 STARTER CLUTCH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12611-25H00-000	GEAR, STARTER IDLE NO.1	1	Rp135.000
2	12612-25H00-000	GEAR, STARTER IDLE NO.2	1	Rp134.000
3	09206-13022-000	PIN	1	Rp20.500
4	09206-13023-000	PIN	1	Rp20.500
5	12600-25811-000	CLUTCH SET, STARTER	1	Rp409.500
6	09261-10003-000	?ROLLER	3	Rp17.000
7	09440-03013-000	?SPRING	3	Rp4.500
8	12633-20E00-000	?PIECE	3	Rp6.500
9	07130-0816A-000	BOLT	3	Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
