THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEADFIG.2 CYLINDERFIG.3 CRANKCASEFIG.4 CRANKCASE COVERFIG.5 CRANKSHAFTFIG.6 STARTER CLUTCHFIG.7 CRANK BALANCERFIG.8 CAMSHAFT - VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR CLEANERFIG.12 MUFFLERFIG.13 OIL PUMPFIG.14 2ND AIRFIG.15 CLUTCHFIG.16 TRANSMISSIONFIG.17 GEAR SHIFTING

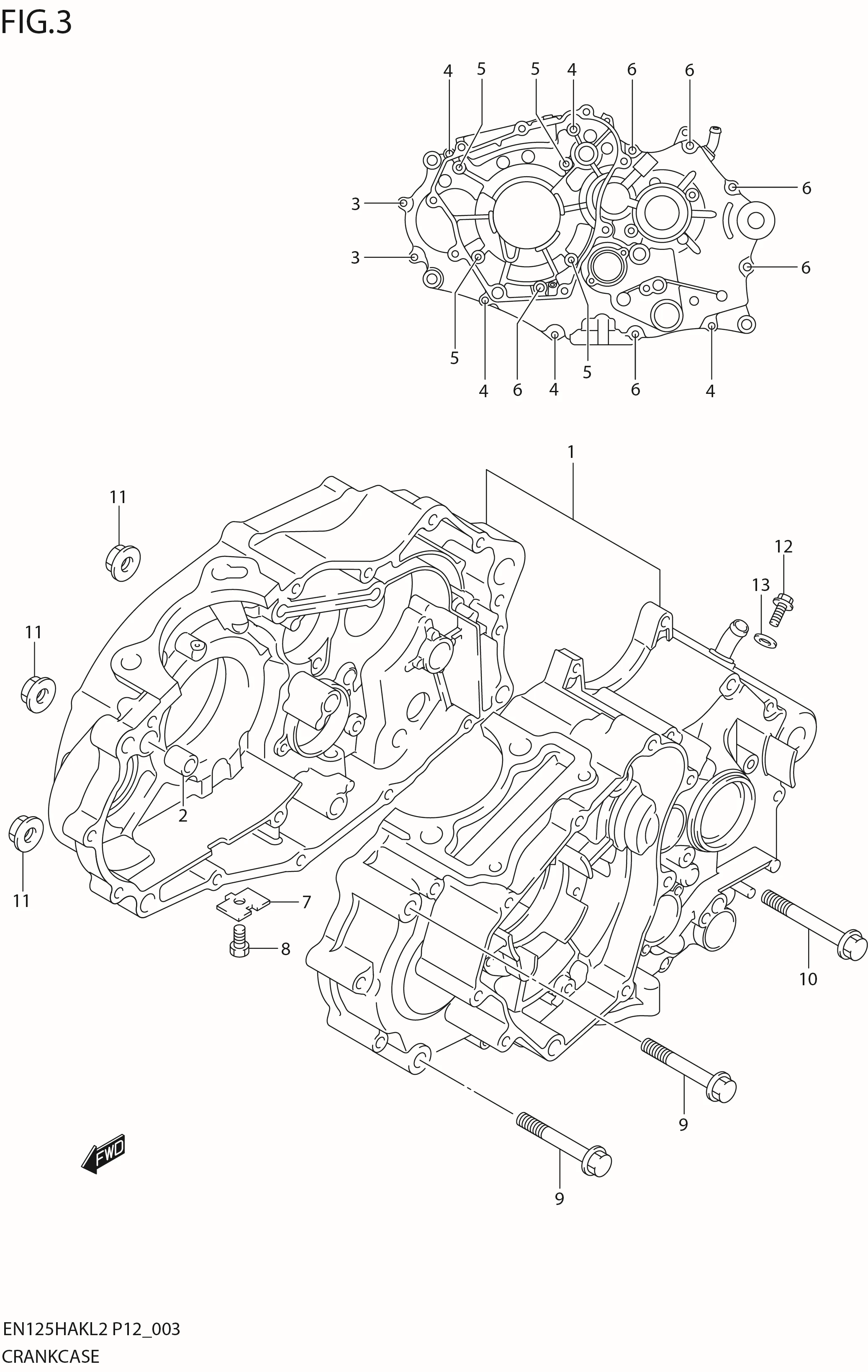

FIG.3 CRANKCASE

FIG.3 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11300-26H00-000 CRANKCASE ASSY 1 Rp2.522.500
2 04211-11169-000 ?PIN 2 Rp2.000
3 01547-0645A-000 ?BOLT (6X45) 2 Rp7.000
4 01547-0660A-000 ?BOLT (6X60) 5 Rp7.500
5 01547-0660A-000 ?BOLT (6X60) 4 Rp7.500
6 01547-0675A-000 ?BOLT (6X75) 6 Rp7.500
7 DISCONTINUE
SUB: 11319-05220-000		 ?PLATE 1 -
8 01500-0610A-000 ?BOLT (6X10) 1 Rp6.500
9 09103-08016-000 BOLT (8X80) 2 Rp16.500
10 09103-08530-000
SUB: 09103-08010-000		 BOLT (8X88) 1 Rp17.500
11 08319-3108A-000 NUT 3 Rp4.000
12 01550-0612A-000 PLUG, OIL GALLERY 1 Rp3.500
13 09168-06018-000 GASKET 1 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
