THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CRANK BALANCER FIG.8 CAMSHAFT - VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 2ND AIR FIG.15 CLUTCH FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING

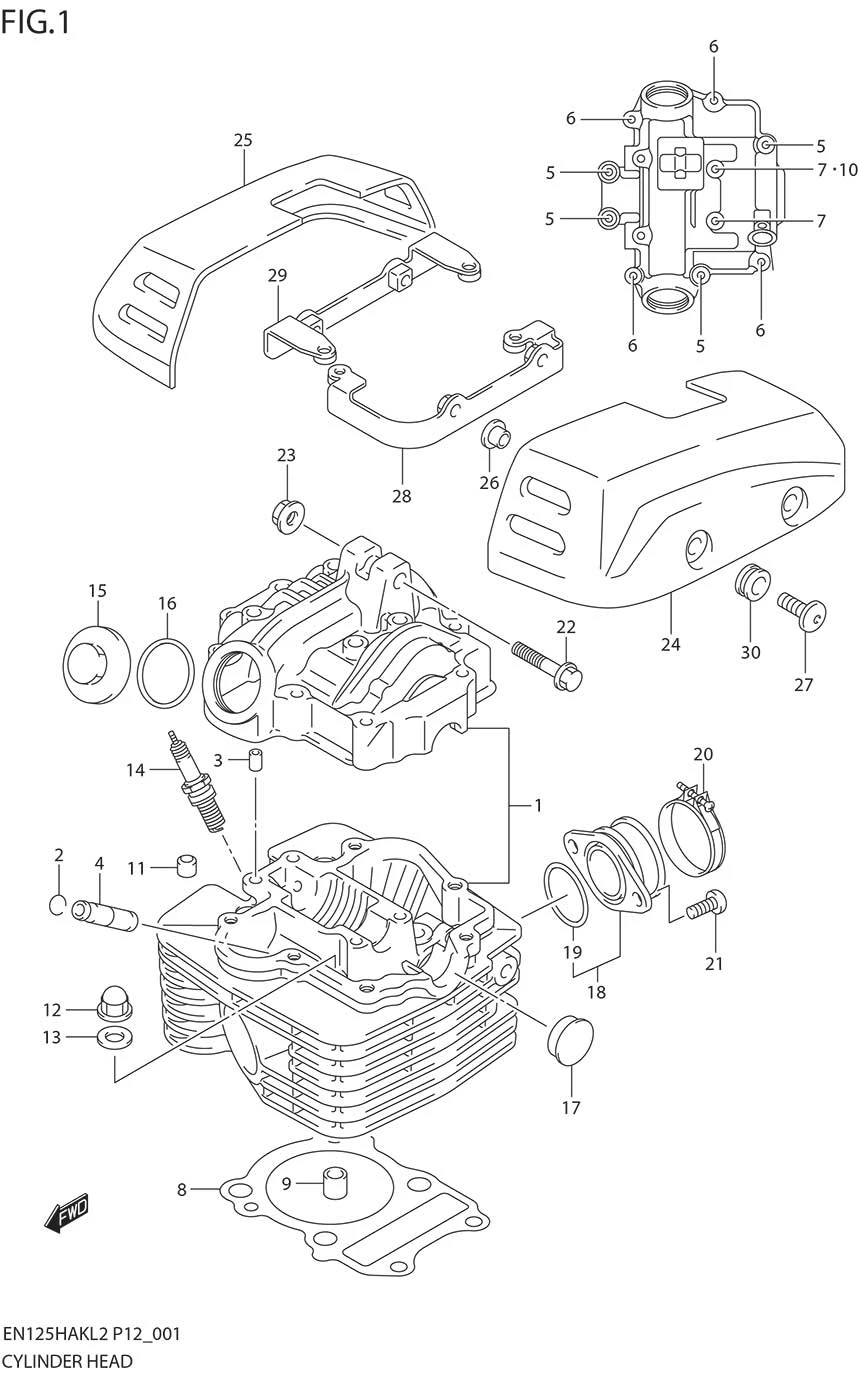

FIG.1 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11100-12FH0-000	HEAD ASSY, CYLINDER	1	-
2	09381-10004-000	?RING, VALVE GUIDE	2	Rp3.000
3	09206-08001-000	?PIN	2	Rp5.500
4	11115-12F70-000	GUIDE, VALVE (OS:0.3)	2	Rp179.500	OPT
5	01550-0635A-000	BOLT (6X35)	4	Rp3.000
6	01550-0640A-000	BOLT (6X40)	4	Rp5.500
7	01550-0660A-000	BOLT (6X60)	2	Rp20.000
8	11141-12F50-000	GASKET, CYLINDER HEAD	1	Rp70.000
9	04211-11169-000	PIN, CYLINDER HEAD	2	Rp2.000
10	09168-06023-000	WASHER	1	Rp13.500
11	11151-45000-000	PAD, RUBBER	16	Rp4.000
12	09159-08137-000 SUB: 09159-08049-000	NUT	4	Rp11.000
13	09168-08032-000	GASKET (8.5X17X2.3)	4	Rp10.500
14-5	09482-00578-000	SPARK PLUG (B8RC)	1	-	OPT
14-4	09482-00456-000	SPARK PLUG (CR8E)	1	Rp26.000	OPT
14-2	09482-00577-000	SPARK PLUG (B7RC)	1	-
14-1	09482-00516-000	SPARK PLUG (CR7E)	1	Rp157.500
14-3	DISCONTINUE SUB: 09482-00528-000	SPARK PLUG (BR6E)	1	-	OPT
15	11175-18910-000	CAP, INSPECTION	2	Rp32.500
16	09280-30001-000	O RING (D:3.0,ID:29.5)	2	Rp10.000
17	09241-22002-000	PLUG, HEAD	1	Rp29.500
18	13101-053A0-000	PIPE ASSY, INTAKE	1	Rp78.500
19	09280-32006-000	?O RING	1	Rp5.500
20	13170-12F50-000	CLAMP	1	Rp18.000
21	02122-0616A-000 SUB: 02122-0616B-000	BOLT	2	Rp3.500
22	09103-08081-000	BOLT (8X50)	1	Rp18.500
23	08319-3108A-000	NUT	1	Rp4.000
24	DISCONTINUE SUB: 11171-25H00-000	CAP, CYLINDER HEAD COVER, LH	1	-
25	DISCONTINUE SUB: 11172-12F50-000	CAP, CYLINDER HEAD COVER, RH	1	-
26	11177-12F50-000	SPACER, HEAD COVER CAP	4	Rp8.000
27	09106-06126-000	BOLT	4	Rp25.500
28	11179-12F50-000	BRACKET, CYLINDER HEAD CAP, LH	1	Rp35.500
29	11179-12F60-000	BRACKET, CYLINDER HEAD CAP, RH	1	Rp35.000
30	11181-12F50-000	CUSHION, HEAD COVER CAP	1	Rp9.000
