THUNDER 125 (EN125HAK)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.1 CYLINDER HEAD FIG.2 CYLINDER FIG.3 CRANKCASE FIG.4 CRANKCASE COVER FIG.5 CRANKSHAFT FIG.6 STARTER CLUTCH FIG.7 CRANK BALANCER FIG.8 CAMSHAFT - VALVE FIG.9 CAMCHAIN FIG.10 CARBURETOR FIG.11 AIR CLEANER FIG.12 MUFFLER FIG.13 OIL PUMP FIG.14 2ND AIR FIG.15 CLUTCH FIG.16 TRANSMISSION FIG.17 GEAR SHIFTING

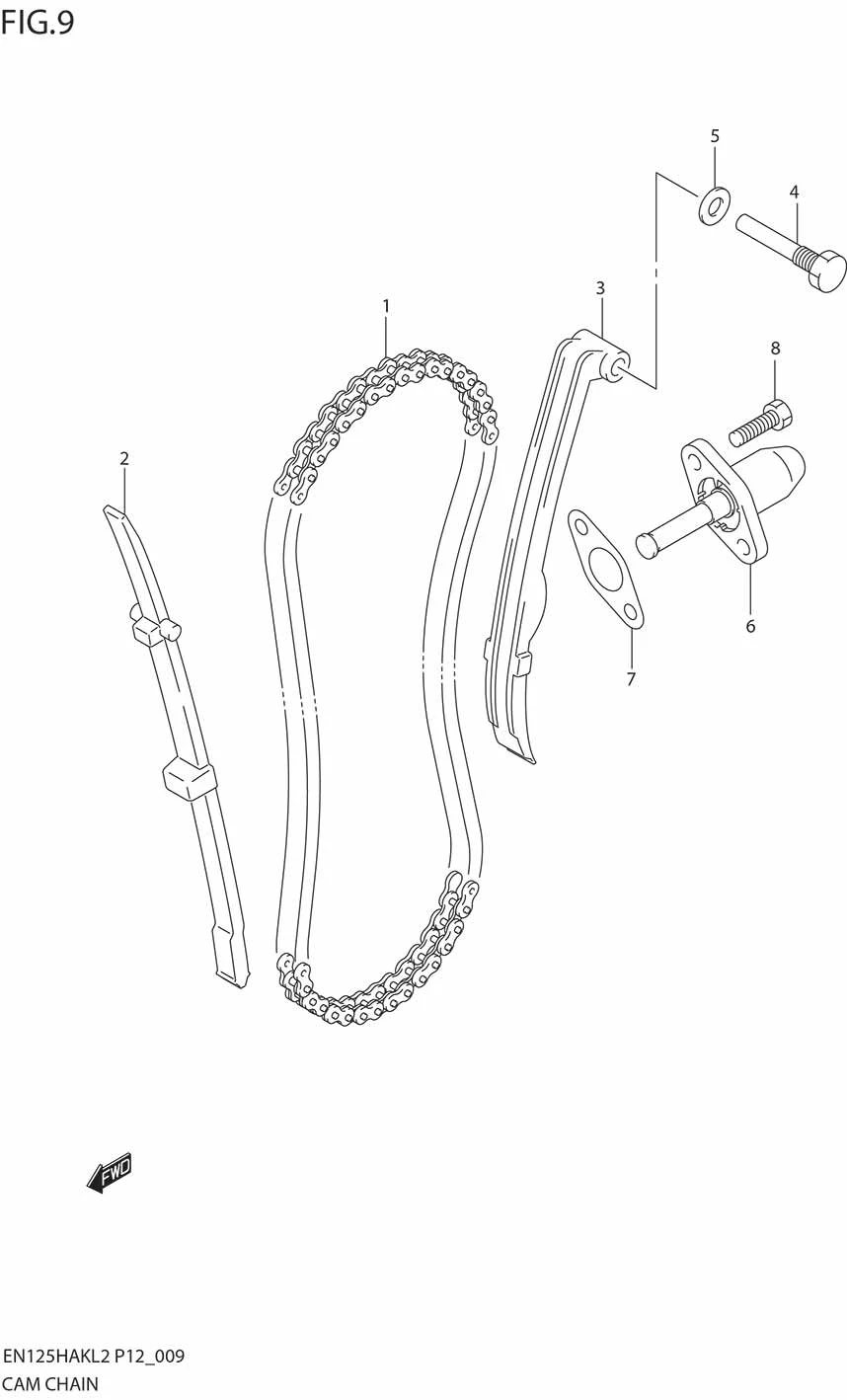

FIG.9 CAMCHAIN

FIG.9 CAMCHAIN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12760-12F50-000	CHAIN, CAM SHAFT DRIVE	1	Rp270.500	98LE
2	12771-12F70-000	GUIDE, CAM CHAIN	1	Rp54.000
3	12811-12F70-000	TENSIONER, CAM CHAIN	1	Rp72.000
4	12812-32400-000	BOLT	1	Rp21.500
5	09168-08016-000	WASHER	1	Rp25.000
6	12830-25H00-000	ADJUSTER ASSY, TENSIONER	1	Rp112.000
7	12837-25H00-000	GASKET, TENSIONER ADJUSTER	1	-
8	07130-0620A-000	BOLT	2	Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
