Preview Engine Transmission Electrical Suspension Body

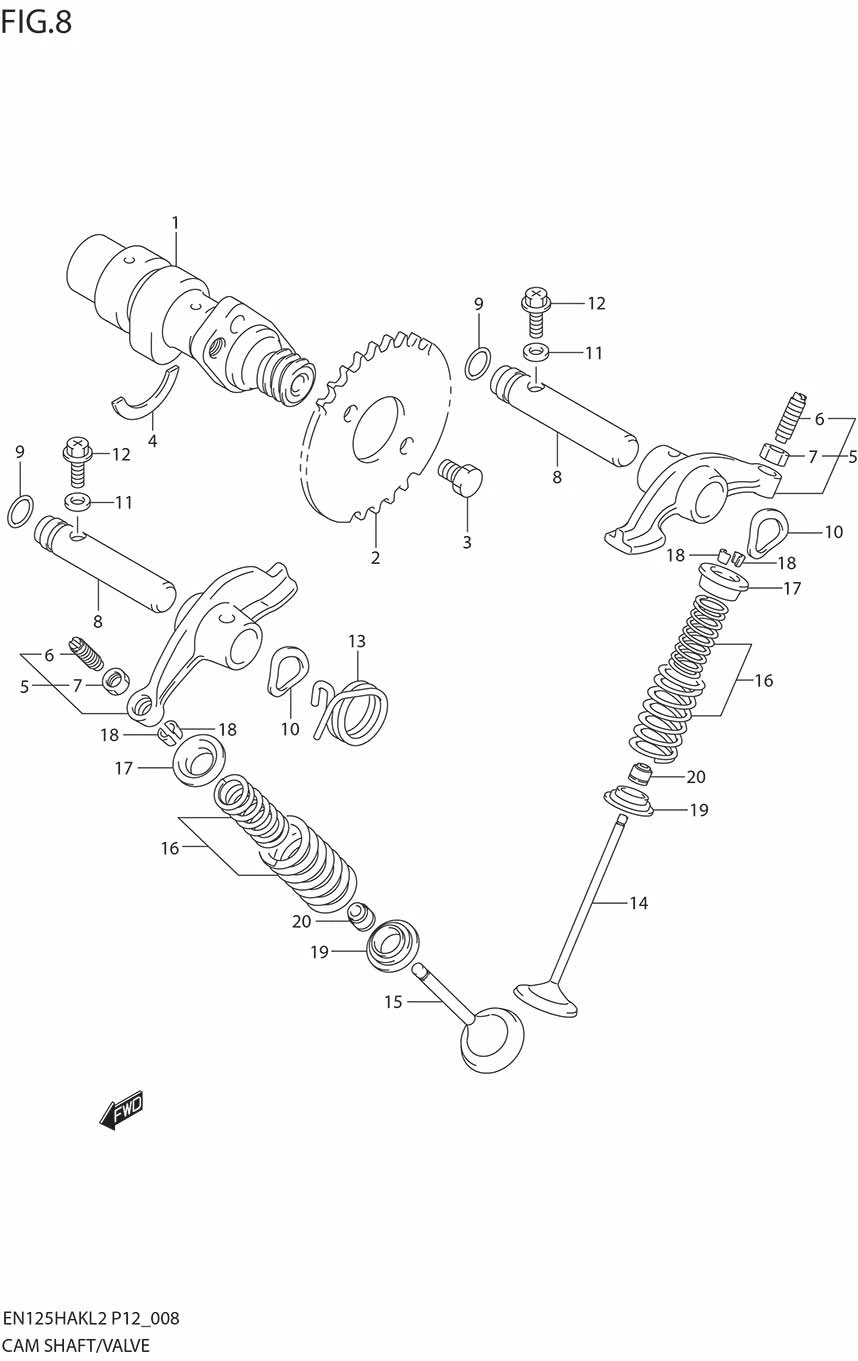

No	No. Part	Description	Qty	Price Per Pcs
1	12711-12F50-000	CAMSHAFT	1	Rp309.000
2	12741-24H00-000	SPROCKET	1	Rp50.000
3	DISCONTINUE SUB: 09111-06100-000	BOLT (6X9.5)	2	-
4	09390-22002-000	C RING	1	Rp11.500
5	12840-25C30-000 SUB: 12840-25C00-000	ARM, VALVE ROCKER	2	Rp99.000
6	12842M32411-000 SUB: 12842-32411-000	?SCREW	2	Rp11.000
7	12843-32400-000	?NUT	2	Rp19.000
8	12861H05201H000 SUB: 12861-05201-000	SHAFT, ROCKER ARM	2	Rp41.500
9	09280-09005-000	O RING (D:1.9,ID:8.6)	2	Rp23.000
10	09164-12032-000 SUB: 09164-12025-000	WAVE WASHER	2	Rp4.500
11	09168-06023-000	GASKET	2	Rp13.500
12	02162-06257-000	BOLT	2	Rp9.500
13	09448-23002-000	SPRING	1	Rp7.500
14	12911-12F80-000 SUB: 12911-12F50-000	VALVE, INTAKE	1	Rp62.000
15	12912-12F80-000 SUB: 12912-12F50-000	VALVE, EXHAUST	1	Rp83.500
16	12920-26H00-000	SPRING SET, VALVE	2	Rp64.000
17	12931-09410-000	RETAINER, SPRING	2	Rp22.500
18	12932-36H00-000 SUB: 12932-27A10-000	COTTER, VALVE	4	Rp10.500
19	12933-39E10-000	SEAT, SPRING	2	Rp22.500
20	09289-05011-000	OIL SEAL (5.5X11X8.2)	2	Rp40.500
